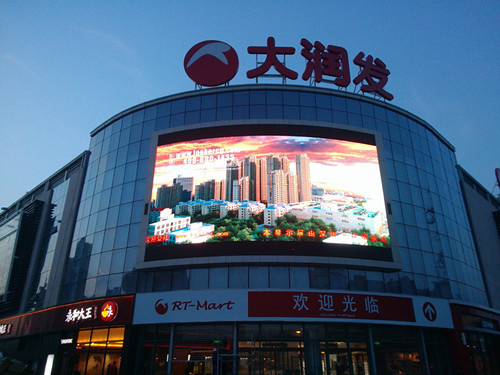

P16 Outdoor Full Color Advertising LED Display
| Price: |
US $ 1000/Meter |
| Trade Terms: |
FOB |
| Min Order: |
5/Meter |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Outdoor Advertising LED Display:
Main features:
1. Standard cabinet :Cabinet structure is with light weight and standardization adopting high strength metal process, achieving high precision, light weight and other outstanding features; uniform image picture with high refresh frequency and gray level to realize the vivid effect.
2. Easy installation: High bearing strength and fast installation through the connecting plate. With flexible installation, such as embedded installation, post mounting,etc. It would not occur the extrusion and deformation phenomenon between the modules when the display is working under the high and low temperatures.
3.Low heat, low noise and low radiation: through the good structure design, ensure Low decibel value and stable performance when it works in the normal temperature; Passed the EMC test.
4. plug in application: It will not strike fire during pull out the plug process, and fully accomplish the phenomenon such as waterproof, anti-interference, corrosion resistance,etc.
5. Double backup data: and applications of optical fiber system, ensures that the screen can work in high efficiency, stability, security situation. The rational allocation of light sensor, the led display will in the best work state and dynamic energy saver by adjusting automatically the screen brightness according to the change of the external environment to save the operating cost effectively.
6. Lightning protection:Advertising LED screens are equipped with lightning protection device, preventing them from burning because of being struck by lightning.
Model: P6, P8, P10, P12, P16, P20, P25, P31.25
Parameters:
| Model | P6 | P8 | P10 | P10 | P12 | P16 | P20 | P25 | P31.25 |
| Pixel Pitch | 6 mm | 8 mm | 10 mm | 10 mm | 12 mm | 16 mm | 20 mm | 25 mm | 31.25 mm |
| LED Encapsulation | 3528 | 3535 | 3535 | 346 | 346 | 346 | 346 | 546 | 546 |
| Pixel Density (Dots/M²) | 27777 | 17222 | 10000 | 10000 | 6944 | 3906 | 2500 | 1600 | 1024 |
| Optimum Viewing Distance | ≥6m | ≥8m | ≥10m | ≥10m | ≥12m | ≥16m | ≥20m | ≥25m | ≥31.25m |
| Viewing Angel (V/H) | 140°/70° | 140°/70° | 140°/70° | 120°/60° | 120°/60° | 120°/60° | 120°/60° | 120°/60° | 120°/60° |
| Brightness (Nits/M²) | ≥6000 | ≥6000 | ≥5500 | ≥6000 | ≥5000 | ≥7500 | ≥5500 | ≥5000 | ≥5500 |
Maximum Power
Consumption | 650 W/M² | 560 W/M² | 360 W/M² | 450 W/M² | 315 W/M² | 550 W/M² | 355W/M² | 290 W/M² | 310 W/M² |
Average Power
Consumption | 380 W/M² | 330 W/M² | 212 W/M² | 270 W/M² | 190 W/M² | 330 W/M² | 210 W/M² | 175 W/M² | 185 W/M² |
| Working Voltage | AC 220±10% 50Hz or AC 110±10% 60Hz |
| IP Rate | Front/ Rear: IP65/IP43 |
| Operating Temperature | -40ºC~70ºC 10%~95%RH |
| Input Singal Format | RF, S-Video, RGB, RGBHV, YUV, YC & Composite, etc |
| Life Span | >100, 000 Hours |
| Prod Model: |
P16 Outdoor Led Display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
P16 |
| Pixel Composition: |
1r1g1b |
| LED Encapsulation: |
DIP346 |
| Brightness: |
6500CD/M2 |
| Application Environment: |
Outdoor |
| AC Input Voltage: |
110-240V ±10% |
| Working Temperature: |
-35degree~+60degree |
| Working Humidity: |
10~60% |
| Lifespan: |
>100000 Hours |
| Module Resolution: |
16*8dots |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Certification: |
FCC |
| Pixel Pitch: |
16mm |
| Scanning Mode: |
1/4 Scan |
| Average Power Consumption: |
350W / m² |
| Display Function: |
Animation, Text, Video, Pictures |
| Pixel Density: |
3906dots/M2 |
