Product description:

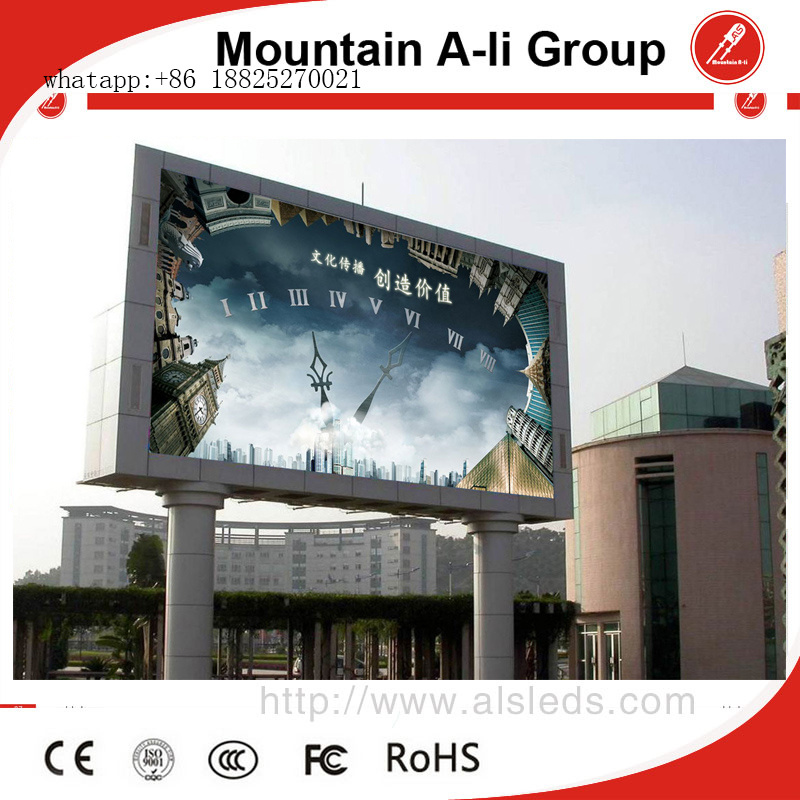

The configuration of P5 outdoor surface mounted module led display is 1R1G1B. The gap can be controled less than 02mm,cabinet installation just 20 seconds. Widely used in a variety of needs of large hall,sports arena,banking,telecommunications,govermentagencies,terminal,pier,railway stations,the stock market and other trading market,medical systems.electric power,galleries and other publicity,advertising,infomation dissemination,the guide places.
Product Advantage:
1.Light, color can be customized.
2.Full magnesium desigh,cooling well,no fans,no noise.
3.High precision.
4.Fast disassembly module just 10seconds.
5.Convenient replacement and maintenance.
6.Durable cabinet structure.
Product Parameter
| | Item | Parameter |
| Unit Module | Module size | 160mm*160mm |
| | Pixel pitch | 5mm |
| | Pixel density | 40000dots/m² |
| | Pixel configuration | 1R1G1B |
| | Package mode | SMD2828 |
| | Pixel resolution | 32dots(W)*32dots(H) |
| | Max power consumption | 25W 30W |
| | Module thinkness | 14.27mm(without magnet)
26.6mm(with magnet) |
| | Weight | 0.21kg |
| | Drive type | constant drive |
| | Scan mode | 1/8 scan |
| | Port type | HUB75-B |
| | Brightness of white balance | ≥1600cd/m² ≥6400cd/m² |
| | | |
| Unit Module | Dimension | 640mm*640mm |
| | Quantity of module | 16 |
| | Power supply | 5V/40A*2pcs |
| | Thermal discharge | fan 2pcs |
| | Pixel per cabinet | 128mm*128mm |
| | Best viewing distance | 5m~30m |
| | Best viewing angle | 160°(W)120°(H) |
| | Temperature | storage:-35ºC~+85ºC
working:-20ºC~+50ºC |
| | Relative humidity | 10%~95% |
| | Thickness | 85mm |
| | | |
| Power | Working voltage | AC220±10% |
| | Average power consumption | ≤1180W/m² ≤ 300W/m² |
| | Max power consumption | ≤ 500W/m² ≤ 500W/m² |
| | Current | ≤20mA(single LED) |
| | | |
| Control system | CPU | pentiuma or above |
| | Operation system | WIN98/2000/NT/XP |
| | Control method | synchronization |
| | | |
| Main technical parameter | Driving device | constant current driver IC |
| | Refresh frequency | ≥400HZ |
| | Grey scale/colors | 256 levels of each color(RGB)16.7M colors |
| | MTBF | ≥9000hours |
| | Power switch | automatic switch |
| | Display module | 800*600/1024*768 |
