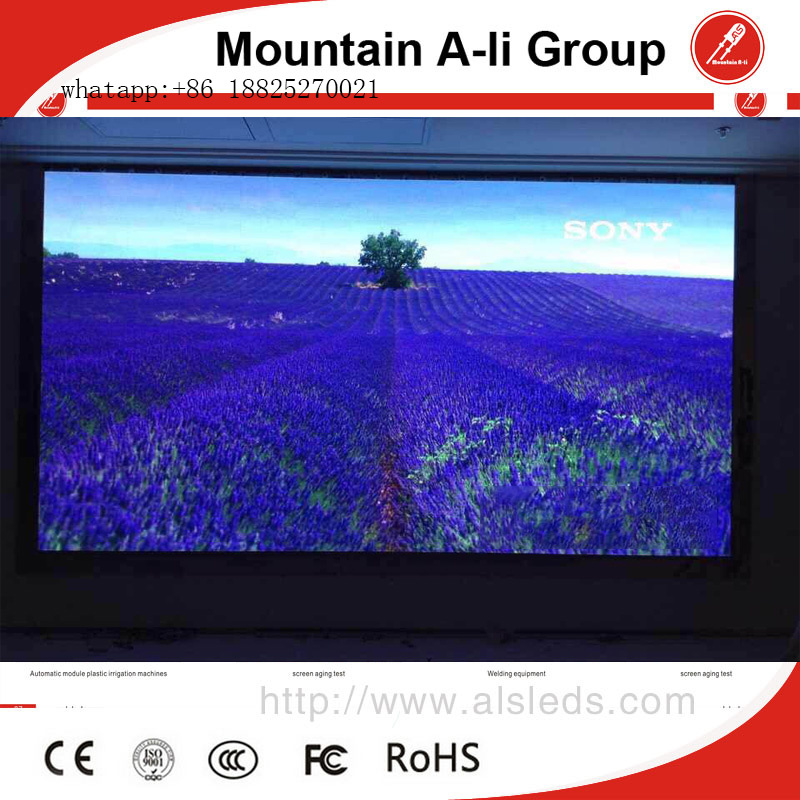

Product description:
The configuration of P5 indoor full color led display is 1R1G1B. Widely used in a variety of needs of large hall,sports arena,banking,telecommunications,govermentagencies,terminal,pier,railway stations,the stock market and other trading market,medical systems.electric power,galleries and other publicity,advertising,infomation dissemination,the guide places.
Product Advantage:
1.Light,color can be customized..
2.Full magnesium design,cooling well..
3.No fans, no noise,anti-interference.
4.High refresh rate.
5.Durable cabinet structure.
6.Quich editing of assembly, disassembly system
7.Saving unloading time.
Product Parameter
| Item | Parameter |
| Unit Module | Module size | 320mm*160mm |
| Module thickness | 14.27mm(without magnet)
26.6mm(with magnet) |
| Pixel pitch | 5mm |
| Pixel density | 40000dots/m² |
| Pixel configuration | 1R1G1B |
| Package mode | SMD3528 |
| Pixel resolution | 64dots(W)*32dots(H) |
| Max power consumption | 25W |
| Weight | 0.21kg |
| Drive type | constant drive |
| Scan mode | 1/16 scan 1/8scan |
| Port type | HUB75-A |
| Brightness | ≥1600cd/m² ≥2800cd/m² |
| Dimension | 640mm*640mm |
| Quantity of module | 8 |
| Power supply | 5V/40A*2PCS |
| Thermal discharge | fan 2pcs |
| Pixel per cabinet | 128*128 |
| Best viewing distance | 5m~30m |
| Best viewing angle | 160°(W)120°(H) |
| Temperature | working:-20ºC~+50ºC
storage:-35ºC~+85ºC |
| Relative humidity | 10%~95% |
| Power | Working voltage | AC220V±10% |
| Average power consumption | ≤1180W/m² ≤270W/m² |
| Max power consumption | ≤500W/m² ≤800W/m² |
| Current | ≤20mA(single LED) |
| Control system | CPU | pentium4 or above |
| Operation system | WIN98/2000/NT/XP |
| Control method | synchronization |
| Main technical parameter | Drving device | constant current drive IC |
| Refresh frequency | ≥400HZ |
| Grey scale/color | 256 levels of each color(RGB)/16.7M color |
| MTBF | ≥9000hours |
| Power switch | automatic switch |
| Display mode | 800*600/1024*768 |
