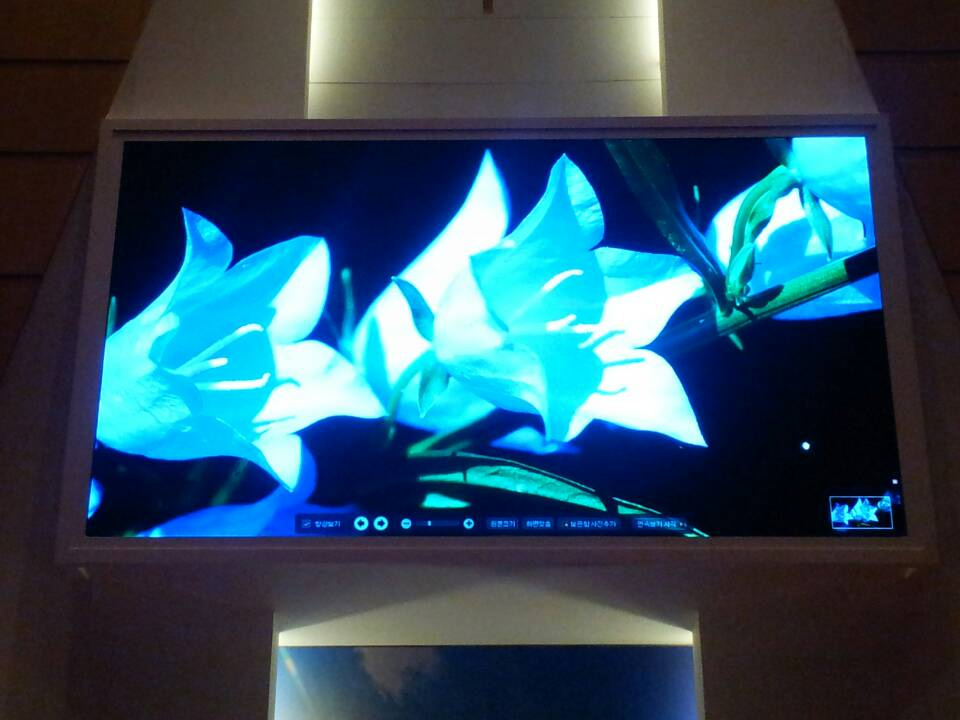

Super slim Alumium rental led display Super slim Alumum rental led display is designed for indoor and outdoor LED display R & D leases. Synchronous control system processing, accept DVI, VGA, HDMI, S-video, composite, YUV input signals, etc., free video, graphics, images, and Mao's program in real time, synchronization, clear information dissemination play each kind of information, and can display 2D and 3D animation, video, TV, VCD programs, and live and so on.
As a new type of advertising display design makes stable, durable, easy to use, suitable for indoor stage, television and other application areas. Achieved without tools to quickly install and maintain, greatly expanding the use of the product areas. High production efficiency and lower operating costs.
Slim rental led display specification | Module Specifications |
|
|
|
| 1 | Pixel Pitch | 4mm |
| 2 | Pixel Configuration | SMD 3 IN 1 |
| 3 | Module Resolution | 60x60 pixels |
| 4 | Module Pixles | 3600pixels |
| 4 | Module Pixles | 240mm(W)x240mm(H) |
| Cabinet Specification |
|
|
| 1 | Cabinet Size | 480mm(W)x480mm(H) | |
| 2 | Cabinet Resolution | 120*120pixels |
| 3 | Module Quantity | 4pcs |
| 4 | Cabinet Pixels | 14400pixels |
| 5 | Material | Metal |
| Screen Parameters |
| 1 | Display size | 2880mm(W)x2400mm(H)
=6.912 | |
| 2 | Resolution | 720x600=432000pixels |
| 3 | Cabinet quantity | 30pcs |
| 4 | Density of pixel | 62500pixels/sqm |
| 5 | Configuration | SMD 3 IN 1 3528 |
| 6 | Weight | Around 9 kg/cabinet |
| 7 | Voltage | AC 220V± 10%, 50 Hz |
| 8 | Power Consumption | MAX≤710W/; AVG≤249W/ |
| 9 | Power factor | >0.9 |
| 10 | Serviceability | Rear service |
| 11 | Viewing Angle | H:140° V:70° | |
| 12 | Brightness | ≥1800 cd/ |
| 13 | Drive Method | 12S can |
| 14 | Contrast ratio | 6000:1 |
| 15 | Operating temperature | -20ºC to +60ºC |
| 16 | Operating humidity | 20% to 90% |
| 17 | Lifetime (50% brightness) | 100,000 hours |
| 18 | Processing and Colors | 16 bit; 281 trillion |
| 19 | Refresh Rate | ≥ 4200 Hz |
| 20 | Frame rate | 60 fps |
| 21 | Brightness level | Manual 100 levels,automatically 16 levels. |
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
