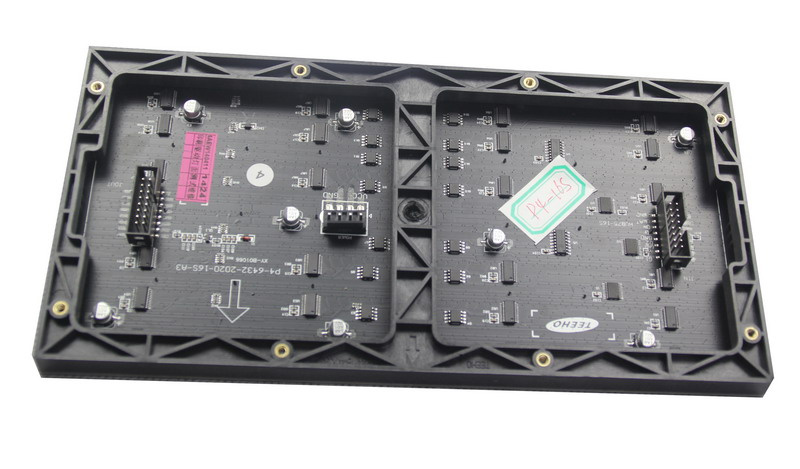

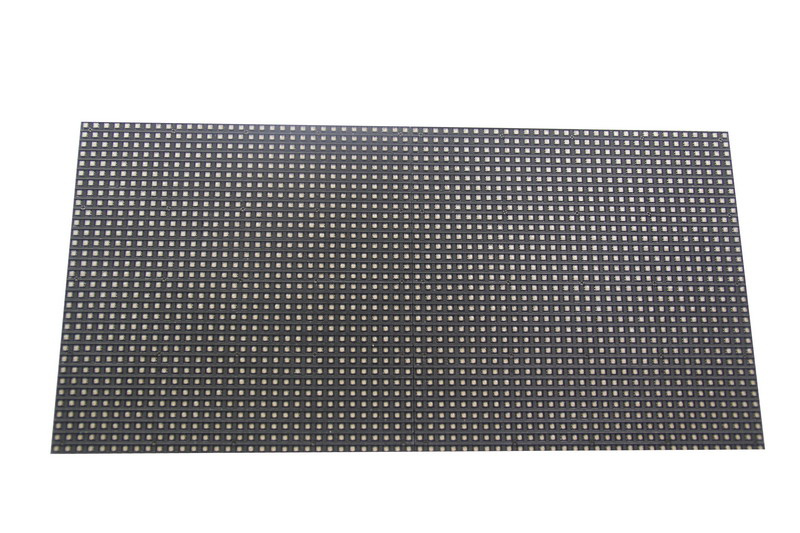

P4 indoor led display factory
Specitication: | P4 LED Panel Specification |
|
NO: | Product Name | Specification |
1 | Pixel Pitch | 4mm |
2 | Pixel Configuration | 1R1G1B/SMD2121/0606 |
3 | Density | 625,000 pixel/m2 |
4 | Moduel Size(L×W)mm | 256mm×128mm |
5 | Cabinet Size(L×W×H)mm | 512mm×512mm×130mm |
6 | Module Resolution | 64×32 |
7 | Cabinet Resolution | 128×128 |
8 | Driving Method | 1/16 Scan |
9 | Driving IC | MBI5024 |
10 | Brightness | 1500cd/m2 |
11 | Contrast | 1000:01:00 |
12 | Brightness Adjustment | AC 85-264V |
13 | Power Consumption | Max Power:<1300W |
14 | Average power: <360W |
15 | Cabinet Weight | <12kg |
16 | Color Temperature | 3200K-9300K |
17 | Horizontal Viewing Angle | 120º |
18 | Vertical Viewing Angle | 90º |
19 | Signal Processing | 10 or 14bit |
20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
21 | Control Distance | Cable100m,Multimode500m,Single mode 2km |
22 | Frame Frequency | 60 Hz |
23 | Refresh Rate | >600Hz |
24 | Control Mode | Synchronous/Asynchronous |
25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve |
26 | Users can choose the recommended curve, also can be adjusted according to actual situation |
27 | MTBF | ≥50000 hours |
28 | Life Span | 100,000 Hours |
29 | Operating Temperature | Working : 35 - 90% |
30 | Storage : 10 - 99% |
31 | Environment Temperature | -30°C to 60°C; humidity Rh10% to 95% |
32 | Remote Control | Can realize remote control,For the possibility of potential failure logging, and send alarm signal to the operator (need to customize) |
33 | Self-checking Technique | LED a single point of self-inspection, communications test, power test, temperature monitoring (need to customize) |
34 | System Operating Platform | WindowsNT,Windows2000,WindowsXP,Windows7 |
35 | Power Supply | AC 85-264V |
36 | Protection | waterproof, dustproof, high temperatureproof,anti-corrosion, anti-burning,anti-static,shake proof,thuner-proof,the system with smoke alarm and temperature alarm function. (need to customize) |
TeehoLED always pay attention to good service to our customers ."Honest, pragmatic " are our service philosophy and basic principle, also are our promise to our clients.
Pre-sale Services:
1.Provide free consulting, to resolve the confusion from customers and supply technology services free by telephone;
2.Mining and carefully study customer's needs,provide detail and suitable design solutions according to the actual installation environment;
In-sale Services:
1.Try best to meet the reasonable demands by customers;
2.Keep close touch with our clients during the period of installation;
3.Cooperate friendly with client and satisfy our clients with best quality LED display.
After-sale Services:
1.We provide free training to our customers on how to install the LED display, as well as the display system operating;
2.Provide 2-year guarantee for normal products free;
3.Clients can down load and upgrade the related operating software of the LED display freely from our company website,so as to resolve the problems during the using time;
4.Regular follow-up service to our customers, solicit opinions from clients and improve the improvement.
Shenzhen Teeho Optoelectronics Co. Ltd(short for Teeho Optoelectronics), found in 2009, is a high-tech private enterprise specialized in LED Screens manufacturing with a ¥ 11 million of registered capital and over 300 employees in Shenzhen. It has been dedicating itself to offering one-stop LED display solutions to its customers including R&D, prototyping, assembly, sales and technology support across the globe.
Teeho industrial park is located in Bao'an, Shenzhen, the most populous LED industrial area, with a cover of more than 10, 000 m2 and over 300 million of amount of sales per year, fully equipped with modern automatic assembly lines with the manufacturing capabilities of 8000 m2 per month
Teeho Optoelectronics spans a wide range of products covering: Indoor Full-Color LED Displays, Out Full-Color LED Dislays, LED Television Displays etc, applied to governmental institutions, corporate image projects, business ads, media activities, cultural and entertainmental places, stadiums, stations and airports etc.
Teeho Optoelectronics is focusing all efforts to technology-leading strategies of production by relying on the three-tier talent strategy, gathering high profile professional talents, which makes a foundation of new R&D of products and specially custom-made products. The R&D teams of Teeho electronics have been dedicating themselves to one-stop solutions, and have obtained tens of certifications of products and innovative patents. Moreover, they have outstandingly achieved in high-end indoor full color display solutions.
Teeho electronics has been promoting itself by advanced technology and scientific managements and has the following certifications: ISO9001: 2008 Quality System Certification, ISO1400: 2004 Environment System Certification, CCC, CE, FCC, RoHS etc. With high quality and perfect service, Teeho Optoelectronics has built lots of sales and service networks and its high-quality products has been exported into more than 80 countries and areas such as the United States, India, New Zealand. Japan, Thailand, Taiwan and Hongkong.
Teeho Optoelectronics Co., Ltd has been marching on under core values of Integrity, Pragmatic, Harmony, Creativity to guide our staff members and to devote itself to leading status in this industry, to ensure that our client will be fulfilled with the high-quality products and best service. With the horizontal developments in industrial chain and a variety of for-profit models, we vigorously promote the construction of brand culture, strive to become a world-class brand researched and developed independently, to become the most professional LED screens and one-stop solutions supplier, which makes a contribution to competing of national brands in globe markets.
