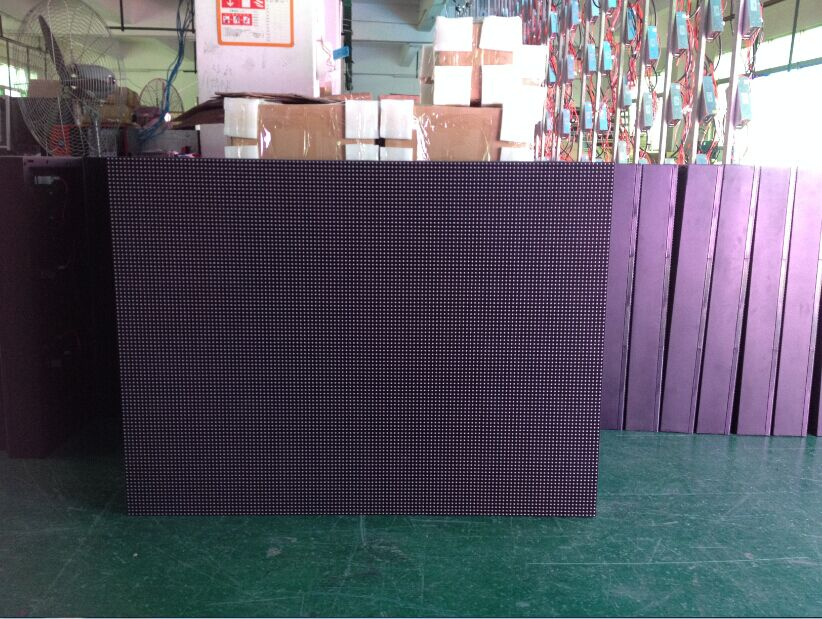

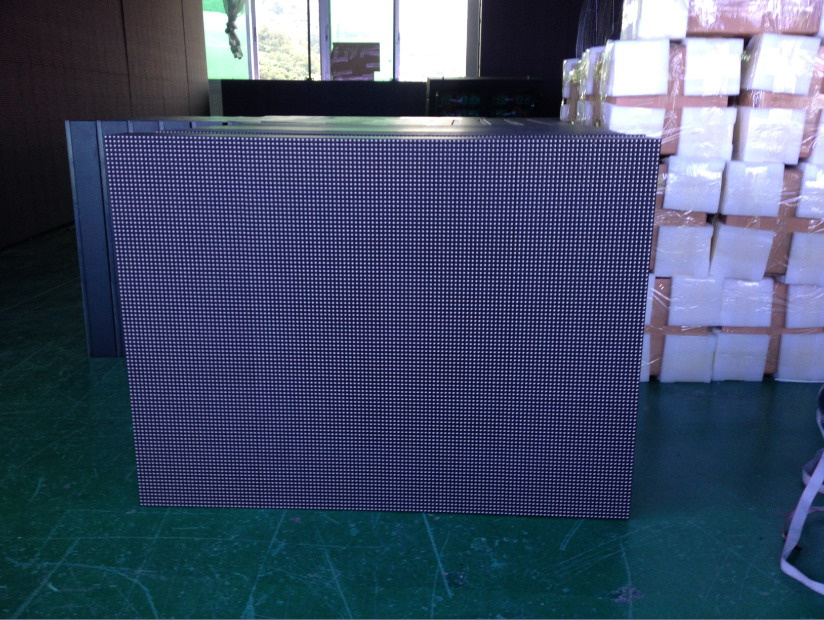

P4 Indoor Full Color LED Display
Main features:
1. Extremely close view distances and wide view angles.
2. Silent operation, little heat generated (no fans).
3. Standard panel design makes stocking, transportation, construction, spare parts and maintenance easy and simple.
4. Real white, brilliant colors, breathtaking grayscale.
| Technical Parameters |
| S/N | Item | Technical Parameters |
| LED Parameters |
| 1 | Item Name | LED Type | Brightness | Wave Length | H/V Visual Angle |
| 2 | Red LED | SMD3in1 | 120-140mcd | 620-625nm | 140º/60º |
| 3 | Green LED | SMD3in1 | 360-435mcd | 520-525nm | 140º/60º |
| 4 | Blue LED | SMD3in1 | 80-100mcd | 470-475nm | 140º/60º |
| Module Specifications |
| 1 | Pixel Pitch | 4mm |
| 2 | Pixel Configuration | SMD3in1 |
| 3 | Module Resolution | 32 x 32 pixels |
| 4 | Module Pixles | 1024 pixels |
| 5 | Module Size | 128mm X 128mm |
| Cabinet Specifications |
| 1 | Cabinet Size(W X H X D) | 512mm x 512mm x 110mm |
| 2 | Cabinet Resolution(dot) | 128 x 128 pixels |
| 3 | Module Quanity (pcs) | 16pcs |
| 4 | Cabinet Pixels | 16384 pixels |
| 5 | Pixel Density | 62500 pixels/m2 |
| 6 | Cabinet Materials | Standard cabinets for fix installation |
| Whole Screen Specifications |
| 1 | Screen Brightness | ≥1800cd/m2 |
| 2 | Driving Method | 1/16 scan |
| 3 | Mini Viewing Distance | 4m |
| 4 | Max. Power Consumption | 1054W/m2 |
| 5 | Average Power Consumption | 420W/m2 |
| 6 | Gray Level | 8bits input, 4096 levels(212) |
| 7 | Display Color | 16M |
| 8 | Frame Frequency | ≥60Hz |
| 9 | Refresh Frequency | ≥600Hz |
| 10 | Uninterrupted Working Hours | ≥72 hours |
| 11 | Screen Life-span | ≥100,000 hours |
| 12 | MTBF | ≥5,000 hours |
| 13 | Discrete Blind Spot Rate | <1/10000 |
| 14 | Continuous Blind Spot Rate | None |
| 15 | Blind Spot Rate | <1/10000 |
| 16 | Screen Plainness | <±1mm |
| 17 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
| 18 | Environment Temperature & Humidity | Temperature:-20 Celsius~+60 Celsius
Humidity:10%~90% RH |
| 19 | Control Mode | Synchronous display with control PC by DVI |
| 20 | Control System | DVI video card + full color control card + fiber system( optional) |
| 21 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
| 22 | Interface | Standard Ethernet |
| 23 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m |
Shenzhen Seny Technology Co., Ltd. is a professional manufacturer of LED display screens, located in Shenzhen of China, found in 2009.
We specializes in all types of LED display screens, including indoor and outdoor, mono color, bi-color, RGB full-color LED displays. As one of the professional LED Displays manufacturers in China, we combine design, production, technical support, marketing, installation and after-sales service together so as to meet the demands of market, make every client satisfied.
Our LED displays have been widely used in a variety of sites like railway station, bank, hospital, office building, outdoor advertising board, airport, post office, plaza and so on. They play an important role for enterprises' Spreading and service convenience, and become more and more popular in every corner of the world.
Wishing we can build up long-term and reliable business relationship in near future. Contact us today for more information!
