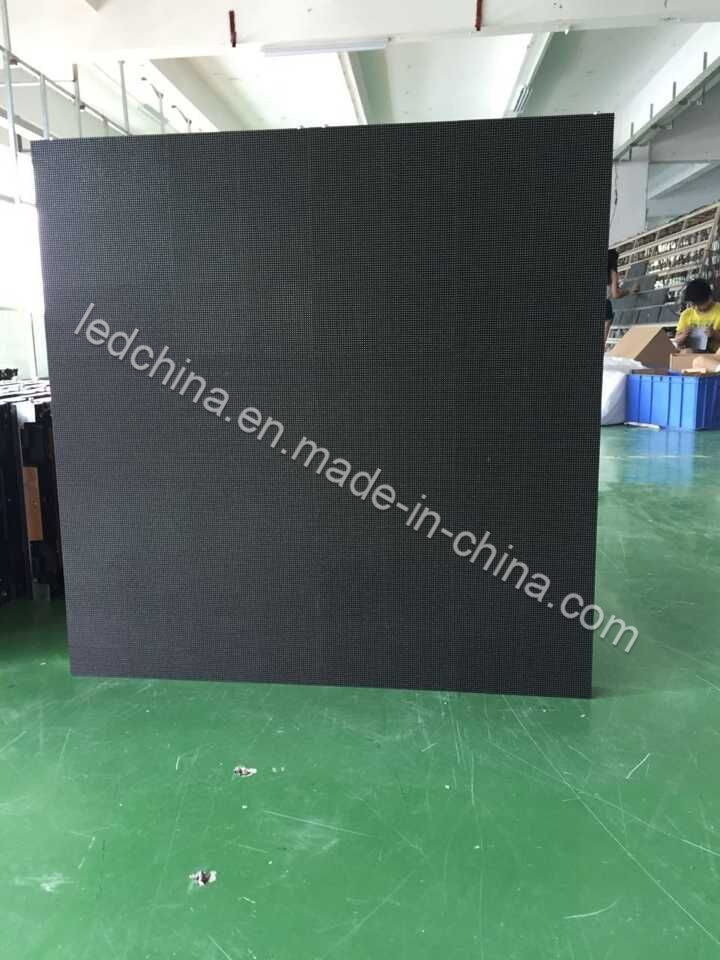

P4 Indoor Die Casting Rental LED Display
Main Features: 1. Ultra-light weight and slim design:8kg/panel
2. Fanless design and front maintenance avilable

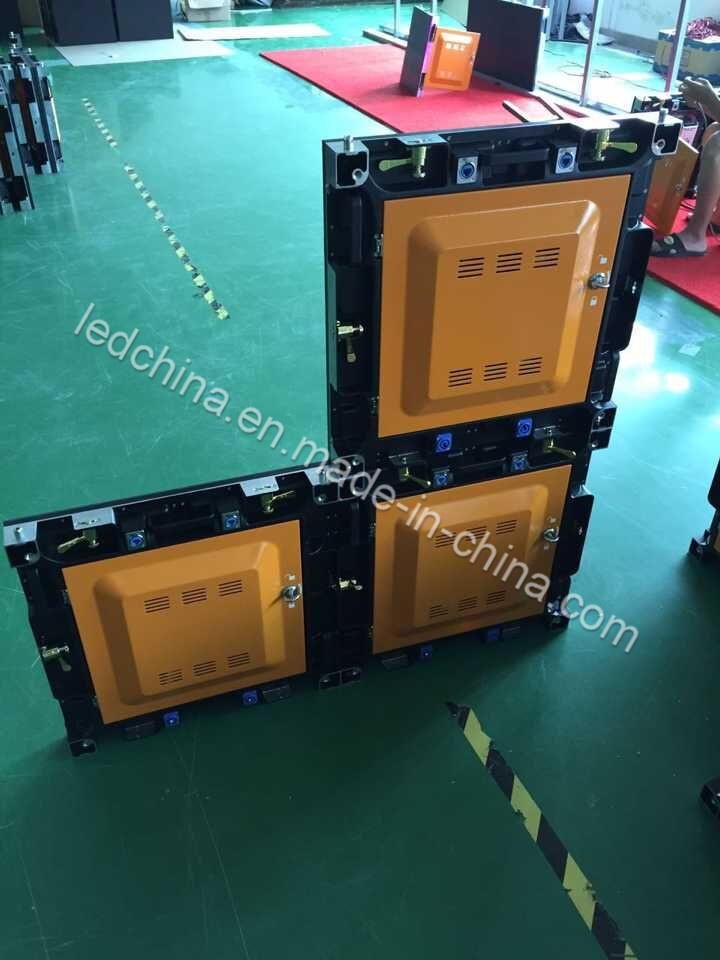

3. Quick lock system, allowing handling fast

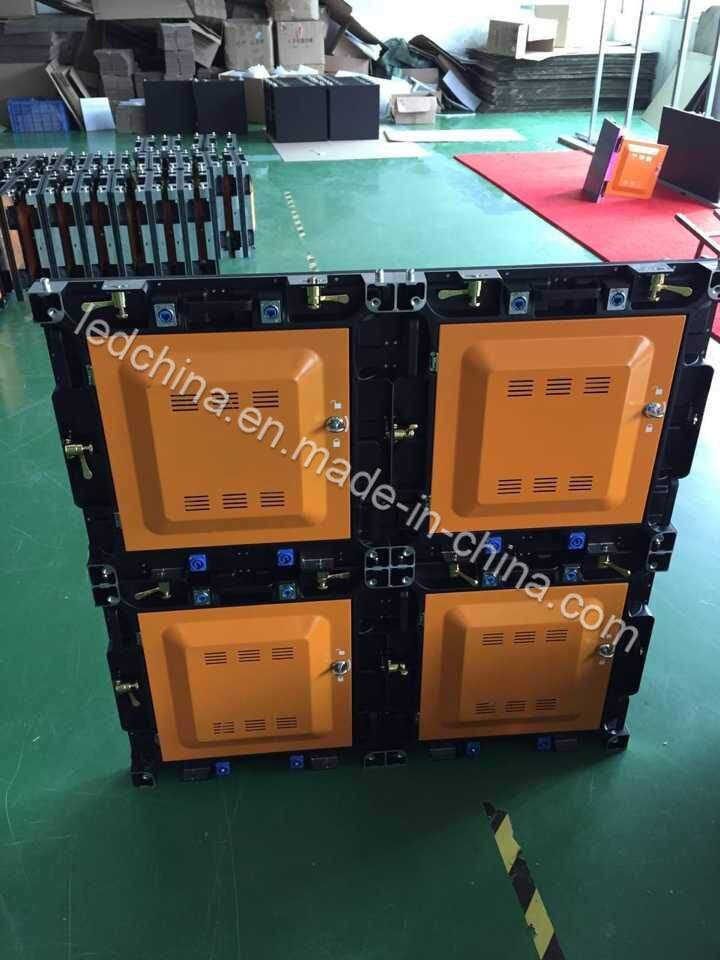

4. Standard panel size 512mmx512mm making flexible assembling and dismantling
5. High refresh rate available for capture for DV&VCR

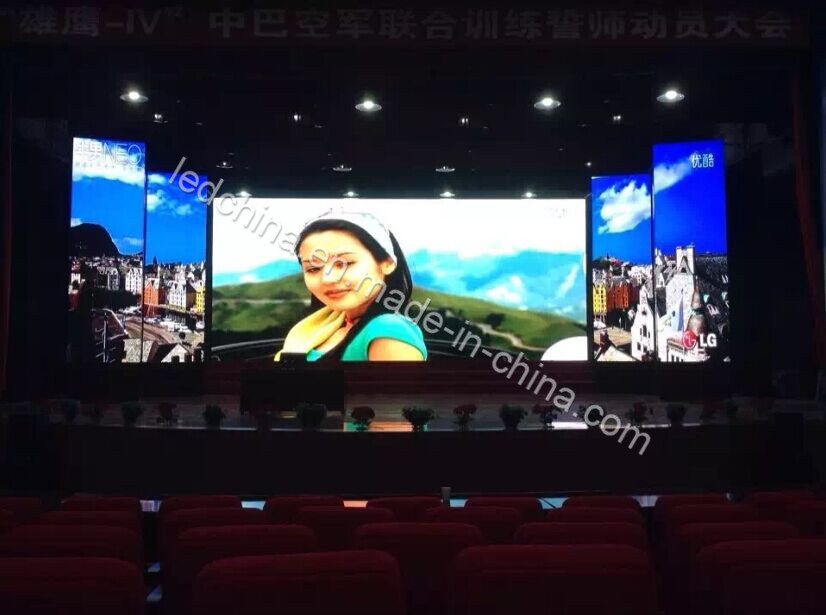

This series have robust precision extruded aluminum section and contrast ration comprised for both rental and permanent installation. Support VGA,DVI,HD,HDMI etc. signals .
| Technical Parameters |
| Item Name | Parameter |
| Model No | SY-P4-16S |
| Module size | 256mm*128mm |
| Pixel pitch | 4mm |
| Pixel Density | 62500 pixels/m2 |
| Pixel configuration | 1R1G1B |
| LED Package mode | SMD2121 |
| Module resolution | 64dots(H)*32dots(V) |
| Drive type | Constant drive |
| Scan mode | 1/16 scan |
| Port type | HUB75-A |
| Brightness of white balance | ≥1800cd/m2 |
| Cabinet Dimension | 512mm*512mm |
| Module Quantity | 8pcs |
| Cabinet Resolution | 128*128 |
| Cabinet Material | Die Casting Aluminum for rental purpose |
| Best viewing distance | 4M~15M |
| Best viewing angle | 120°(H) 60°(V) |
| Average Power consumption | 915W/m2 |
| Max.Power consumption | ≤1830W/m2 |
| Current | ≤20mA(single LED) |
| Frame Frequency | ≥60Hz |
| Refresh frequency | ≥600HZ |
| Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
| Temperature | storage:-35ºC~+85ºC
working:-20ºC~+50ºC |
| Humidity | 10%-95% |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors |
| Screen Lifespan | ≥100,000 hours |
| Screen Plainness | <±1mm |
| Blind Spot Rate | <0.0001 |
| CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP |
| Control method | Synchronization |
Shenzhen Seny Technology Co., Ltd. is a professional manufacturer of LED display screens, located in Shenzhen of China, found in 2009.
We specializes in all types of LED display screens, including indoor and outdoor, mono color, bi-color, RGB full-color LED displays. As one of the professional LED Displays manufacturers in China, we combine design, production, technical support, marketing, installation and after-sales service together so as to meet the demands of market, make every client satisfied.
Our LED displays have been widely used in a variety of sites like railway station, bank, hospital, office building, outdoor advertising board, airport, post office, plaza and so on. They play an important role for enterprises' Spreading and service convenience, and become more and more popular in every corner of the world.
Wishing we can build up long-term and reliable business relationship in near future. Contact us today for more information!
