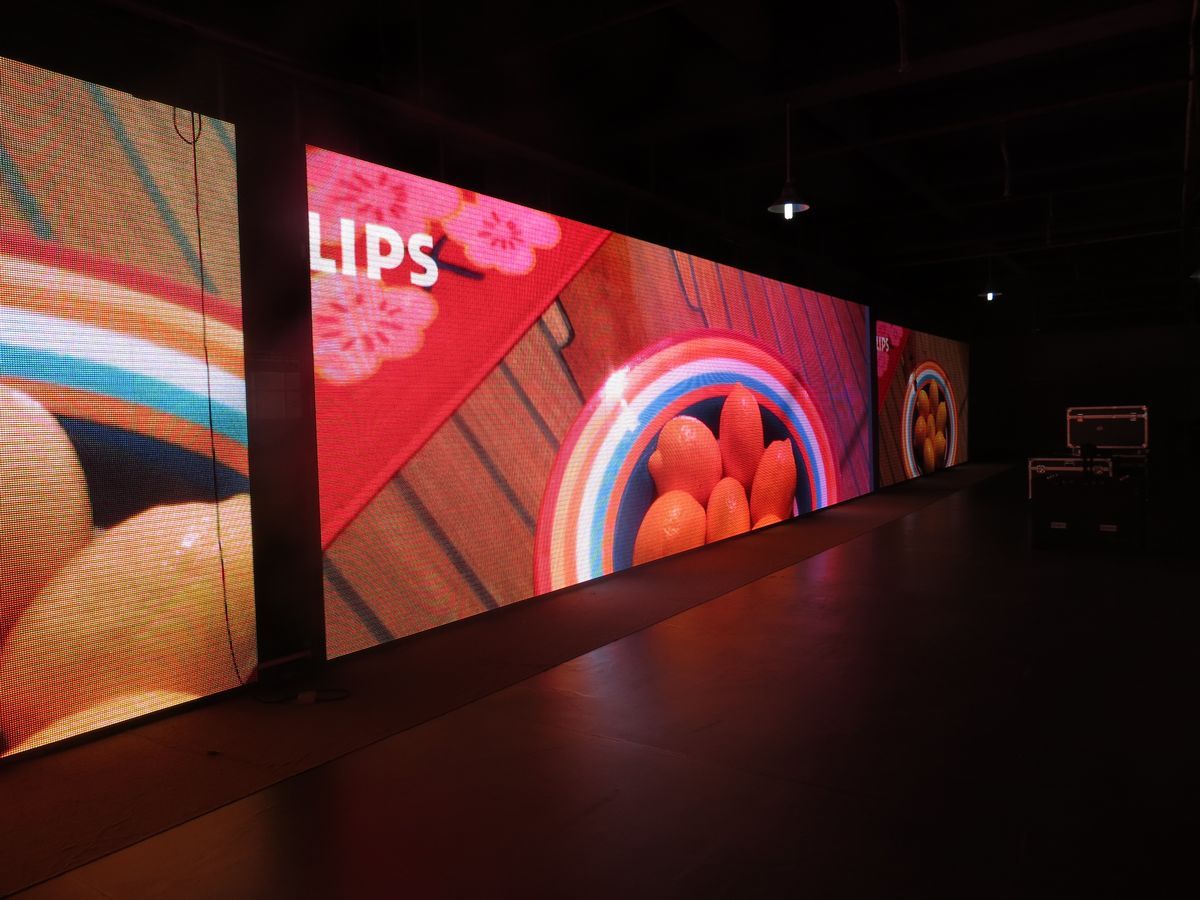

PH4.81mm indoor full color Die cast rental led display
Tube Chip Color:Full Color
Display Function:Video Display
Scanning Mode:1/16 Scan
Certification:CE, RoHS, UL, CCC
Pixel Configuration:1R,1G,1B
Pixel Pitch:5mm
Pixel Density:40,000 dots / m²
Application:Stage Performance
IP Rating:IP43
System Operating Platform:WIN XP
LED Package:SMD3258
Viewing Angle:H120/V120
Viewing Distance:4~30m
Mtbf:50000hours
Warranty:2 Years
Export Markets:South America,North America,Oceania,Mid East,Africa,Western Europe,Southeast Asia
Product Description
Indoor P5 Full Color LED Display is one of our featured products. High bright LED oval lamps and superior plastic package suite are adopted, which are not easy to be damaged and ensure the best viewing angle.
Product Introduction
P5 Indoor Full Color LED Display is mainly used for displaying videos. Constant voltage a and current chip reduce the power consumption and prompt the stability. Simple module design is low-cost and easy to maintain. Neat appearance, light weight, and 5V safe voltage power supply system make the module more attractive. Besides, this product has some other features, such as waterproof front side and damp-proof back side, outdoor all-weather work, locating hole design and cabinet design, etc. And high brightness with uniform luminance is suitable for outdoor distant viewing.
Our products cover indoor and outdoor full color LED screen, cabinet module, panel, and LED bare lamp.
Our LED products have the below advantages:
1. Tube chip: The chip brand is Epistar, the size is over 9 mils; Compared with other manufacturers, the lifetime is longer.
2. Mask: The unique design with patent makes it more orderly and better visual effect as well as better waterproof effects. The screw is longer than others, which can prevent the mask falling off.
3. The PCB board is thicker than others, which can postpone corrosion. Also, cement conduct can be waterproof.
4. Every panel is equipped 2 capacitors, which can ensure the voltage stability.
5. Famous IC brand is adopted, whose quality is guaranteed.
| P5 Full Color SMD3528 Indoor Module |
| Item | Unit | Parameter |
| Pixel Pitch | mm | 4.81.00 |
| Resolution of Module | dots | 32x16 |
| Module Size | mm | 250x250 |
| Module Weight | kg | 0.25 |
| Pixel Configuration | SMD3528 1R1G1B |
| Chip Brand of LEDs | Epistar |
| Pixel Density | dots/sqm | 43222 |
| Brightness (White Balance) | nits(cd/sq.m) | ≥2000 |
| Red Wavelength | nm | 620-625 |
| Green Wavelength | nm | 520-525 |
| Blue Wavelength | nm | 470-475 |
| Scan Mode | 1/16 Scan |
| Viewing Distance | M | 3--35 |
| Best View Distance | M | 5--15 |
| Viewing Angle-Horizontal | deg. | 120 |
| Viewing Angle-Vertical | deg. | 120 |
| Module Maximum Power | W | 25 |
| Max. Power Consumption | W/sq.m | 1,000 |
| Avg. Power Consumption | W/sq.m | 300 |
| Working Voltage | 5V 40A |
| Power Supply | AC 110/220V |
| Refresh Rate | Hz/S | 3,000 |
| Frame Rate | Hz/S | ≥60 |
| Gray Scale | 4096 grades gray |
| Display Function | Text,news,advertising,flash,animation |
| Input Signal | RF,S-Video,RGB,RGBHV,YUV,YC,SDI,HD-SDI,DVI,UXGA,COMPOSITION,etc. |
| Luminance Degradation | Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature 25 centigrade. |
| Defective Dot Rate | <0.0001 |
| Life Span | hours | 100,000 |
| MTBF | hours | >5,000 |
| Storage Temperature | centigrade | -35 -- +80 |
| Working Temperature | centigrade | -20 -- +60 |
| Control System | Synchronization or Asynchronization |
| Quality Certificate | CE,CCC,ISO9001,ROHS |
| Warrenty | 2 Years |
| Working Environment | Indoor |
