P3 Indoor High Resolution LED Display
Main features:
1. Extremely close view distances and wide view angles.
2. Silent operation, little heat generated.
3. Standard panel design makes stocking, transportation, construction, spare parts and maintenance easy and simple.
4. Real white, brilliant colors, breathtaking grayscale.
| Description |
| Item Name | Parameter |
| Model No | SY-P3-16S |

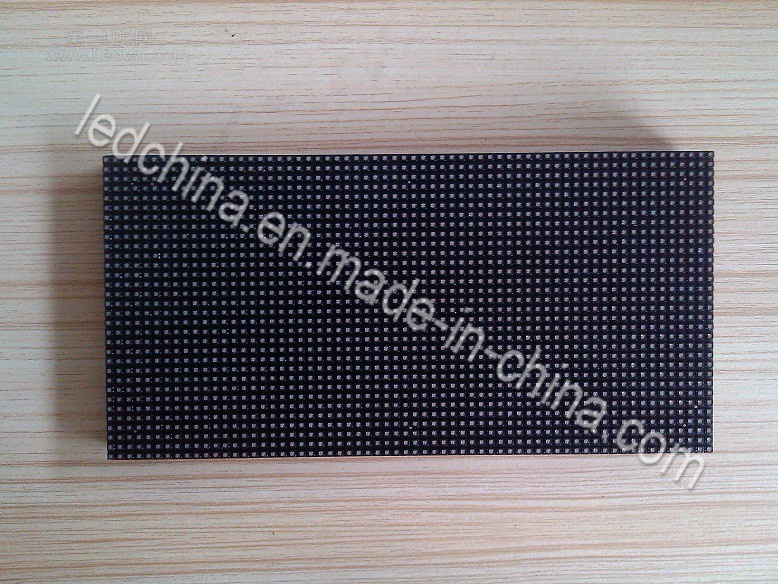

| Module size | 192mm*96mm |
| Pixel pitch | 3mm |
| Pixel Density | 111111 pixels/m2 |
| Pixel configuration | 1R1G1B |
| Package mode | SMD2121 |
| Module resolution | 64dots(H)*32dots(V) |
| Drive type | Constant drive |
| Scan mode | 1/16scan |
| Port type | HUB75-A |
| Brightness of white balance | ≥1700cd/m2 |

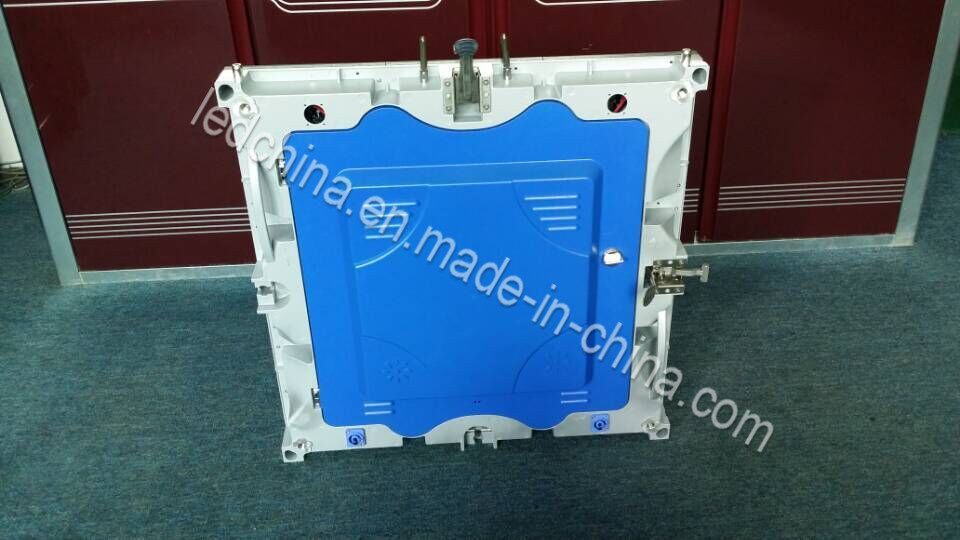

| Cabinet Dimension | 576mm*576mm |
| Module Quantity | 18pcs |
| Cabinet Resolution | 192*192 |
| Cabinet Material | Iron, Aluminum or Die Casting Aluminum |
| Best viewing distance | 3M~15M |
| Best viewing angle | 120°(H) 60°(V) |
| Average Power consumption | 550W/m2 |
| Max.Power consumption | ≤1150W/m2 |
| Current | ≤20mA(single LED) |
| Frame Frequency | ≥60Hz |
| Refresh frequency | ≥600HZ |
| Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
| Temperature | storage:-35ºC~+85ºC
working:-20ºC~+50ºC |
| Humidity | 10%-95% |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors |
| MTBF | ≥5,000hours |
| Screen Lifespan | ≥100,000 hours |
| Screen Plainness | <±1mm |
| Blind Spot Rate | <0.0001 |
| CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP |
| Control method | Synchronization |
