P2.5 Indoor High Definition Video LED Display
Main features:
1. Extremely close view distances and wide view angles.
2. Silent operation, little heat generated (no fans).
3. Standard panel design makes stocking, transportation, construction, spare parts and maintenance easy and simple.
4. Lightweight and seamless.
5. Real white, brilliant colors, breathtaking grayscale.
| Technical Parameters |
| S/N | Item | Technical Parameters |
| LED Parameters |
| 1 | Item Name | LED Type | Brightness | Wave Length | H/V Visual Angle |
| 2 | Red LED | SMD2121 | 120-140mcd | 620-625nm | 140º/60º |
| 3 | Green LED | SMD2121 | 360-435mcd | 520-525nm | 140º/60º |
| 4 | Blue LED | SMD2121 | 80-100mcd | 470-475nm | 140º/60º |

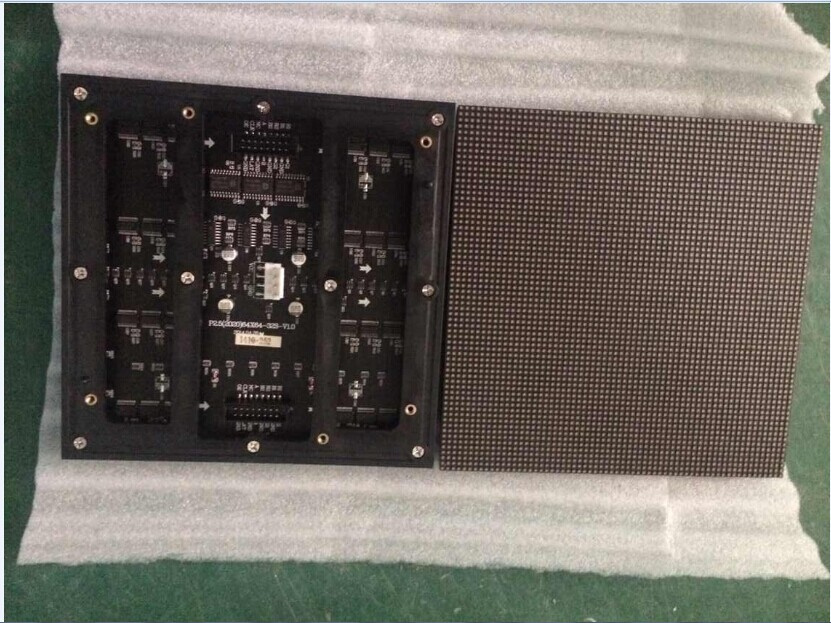

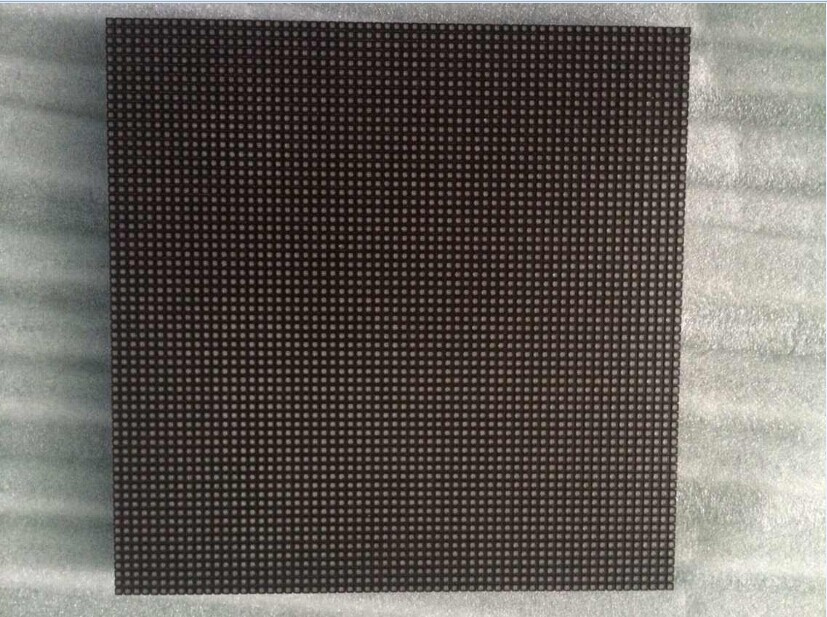

| Module Specifications |
| 1 | Pixel Pitch | 2.5mm |
| 2 | Pixel Configuration | SMD3in1 |
| 3 | Module Resolution | 64 x 32 pixels |
| 4 | Module Pixles | 2048 pixels |
| 5 | Module Size | 160mm X 80mm |
| Cabinet Specifications |
| 1 | Cabinet Size(W X H X D) | 480mm x 480mm x 110mm |
| 2 | Cabinet Resolution(dot) | 192 x 192 pixels |
| 3 | Module Quanity (pcs) | 18pcs |
| 4 | Cabinet Pixels | 36864 pixels |
| 5 | Pixel Density | 160000 pixels/m2 |
| 6 | Cabinet Materials | Iron or Aluminum |

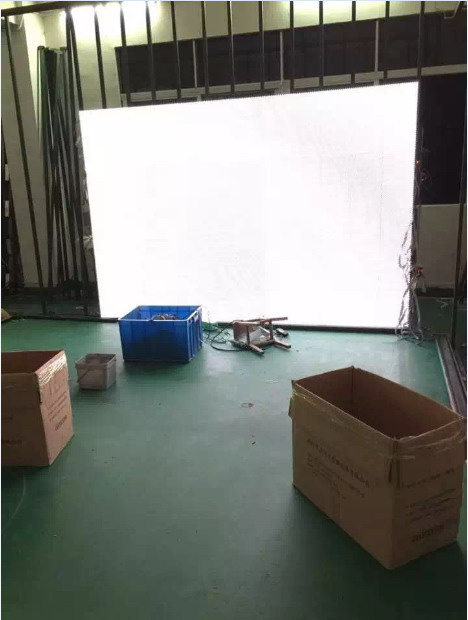

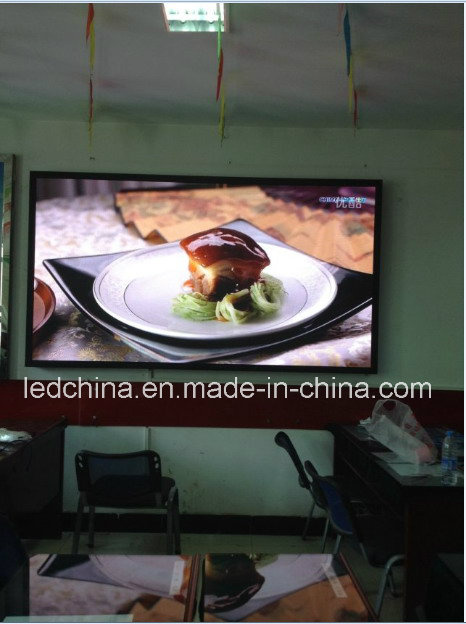

| Whole Screen Specifications |
| 1 | Screen Brightness | ≥1700cd/m2 |
| 2 | Driving Method | 1/16 scan |
| 3 | Mini Viewing Distance | 2.5m |
| 4 | Max. Power Consumption | 2200W/m2 |
| 5 | Average Power Consumption | 880W/m2 |
| 6 | Gray Level | 8bits input, 4096 levels(212) |
| 7 | Display Color | 16M |
| 8 | Frame Frequency | ≥60Hz |
| 9 | Refresh Frequency | ≥600Hz |
| 10 | Uninterrupted Working Hours | ≥72 hours |
| 11 | Screen Life-span | ≥50,000 hours |
| 12 | MTBF | ≥5,000 hours |
| 13 | Discrete Blind Spot Rate | <1/10000 |
| 14 | Continuous Blind Spot Rate | None |
| 15 | Blind Spot Rate | <1/10000 |
| 16 | Screen Plainness | <±1mm |
| 17 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
| 18 | Environment Temperature & Humidity | Temperature:-20 Celsius~+60 Celsius
Humidity:10%~90% RH |
| 19 | Control Mode | Synchronous display with control PC by DVI |
| 20 | Control System | DVI video card + full color control card + fiber system( optional) |
| 21 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
| 22 | Interface | Standard Ethernet |
| 23 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m |
