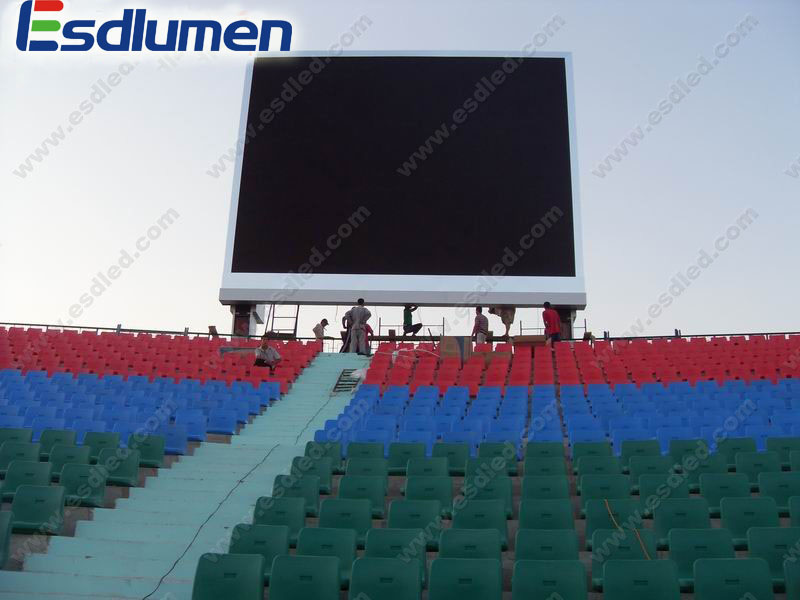

Stadium outdoor LED display is so attractive to fans around the stadium that large scale advertisements are watched by millions of people, and build impassioned atmospheres, moreover, fans are joyous of the closer watching distance brought via outdoor LED display. A lot of Stadiums spectators found that Outdoor LED Display is also made good use in advertising industry, besides the advantages in outdoor display Stadiums.
High quality metal plate cabinet with hidden handles, small volume and light weight, which can save transportation cost and reduce labor intensity effectively.
Viewing angle can be above 50° For vertical and 110° For horizontal, flatness<0.2mm, the adjustable angle of inclination for the cabinet is 70-95° , so it can shows the best displaying effect.
High quality anti-collision foam, good toughness and resistant to shock
Macromolecule flexibility mask, surface without glare, better contrast ratio and can avoid the injury of athletes
High quality potting craft applied in the module, the protection level can reach IP65 and can doing well in rainy days.
Using three anti products as the signal and power socket, stable and reliable.
Assembling high quality lock system to the rear cover can effectively avoid the wrong operation of non-professionals.
Unique joint structure can assembling the cabinets to one outdoor screen when necessary, make one LED screen with two usage come true.
Item |
Parameters |
MODULES |
model |
ESD-OE16S |
Pixel Pitch(MM) |
16 |
Physical Density(dot/M2) |
3, 906 |
LED Arrangment |
1R1G1B |
LED Type |
SDM5050 |
Module Size(MM*MM) |
256*256 |
Module Resolution(PX*PX) |
16*16 |
Module Power Comsumption(W) |
70 |
main technical parameters |
Drive Mode |
Constant Current Drive |
Scan Mode |
Static |
Horizontal Viewing Angle(Deg) |
140 |
Vertical Viewing Angle(Deg) |
140 |
Brightness(CD/M2) |
4500 |
Grey Scale |
> 4096 |
Refresh Rate(HZ) |
4800 |
Cabinet Resolution |
80*64 |
Cabinet Max Power Consumption(W) |
1000 |
Cabinet Average Power Consumption(W) |
400 |
Cabinet Size(MM*MM) |
1280*960 |
Cabinet Weight(KG) |
65 |
Cabinet Thickness(MM) |
150 |
Cabinet Material |
ALU/Steel |
Color(M) |
> 16.7 |
Input Voltage |
AC 110V~220V+/-10% |
Refresh Frame Frequency(Hz) |
60 |
Protection Level |
IP65 |
Working Environment |
Outdoor |
Working Temperature( |
)
-20~+40 |
Storage Temperature(RH) |
10%-90% |
Life Span(H) |
100, 000 |
