Outdoor Full Color LED Display (P16 advertising LED Display Screen)/LED sign/LED wall1. full color outdoor LED display/led display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc. Place, with the speciality of dampproof, windproof, sunproof, staticproof, antifreezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.(LED stage display ,LED Outdoor video wall , Wedding LED display,The stage LED electronic screen,LED large screen full color display,advertising led display,outdoor led display,indoor led display)
pH16 outdoor full color LED display detail specification
1. Pixel
Pixel pitch: 16 mm
Pixel density: 3906 dots / sq. M.
Pixel configuration: 2R1G1B
LED specification: DIP546
2. Module
Module matrix (pixel dots): 16*8
Module size: 256*128 mm
Module power consumption: 35W

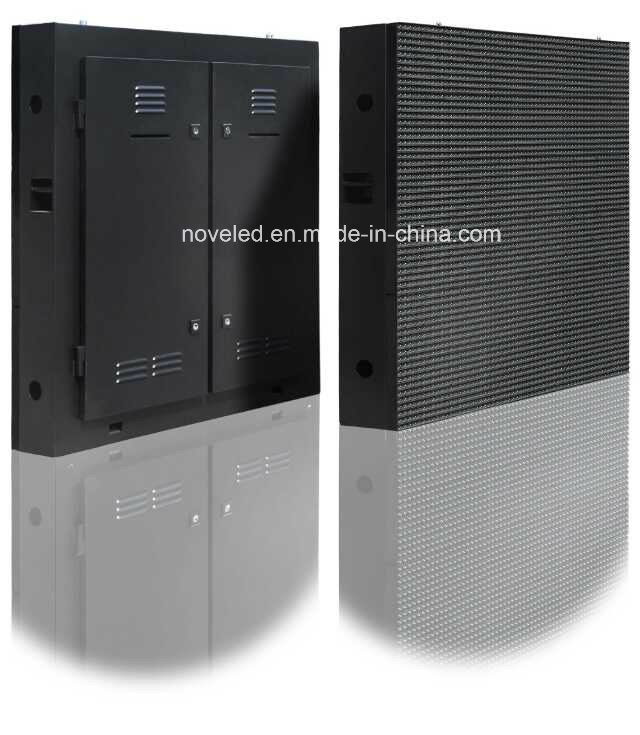

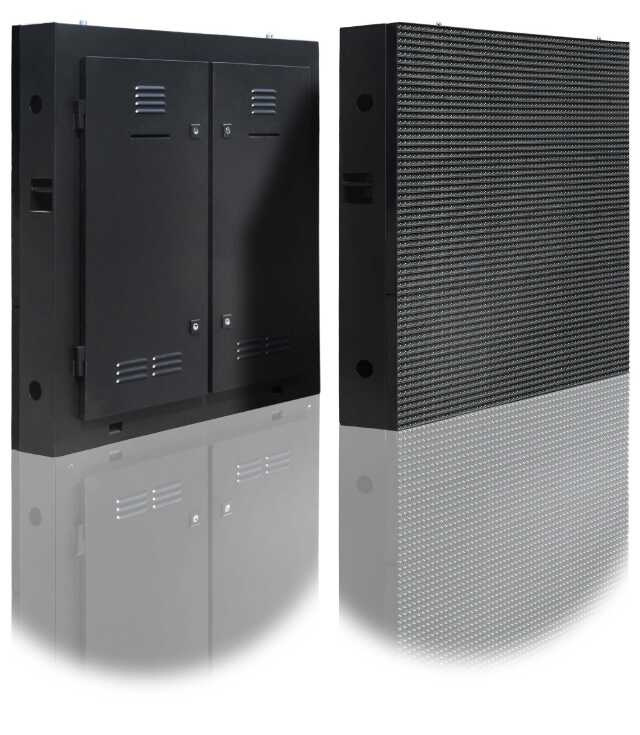

3. Cabinet
Cabinet matrix (pixel dots): 64*48
Cabinet size: 1024*768*120mm
Cabinet pixel density: 3072 dots
Protection level: IP65
Cabinet weight: 60kg
5. With CE, RoHS, FCC Certification, ISO 9002
| Display and control feature | Structure feature |
| Specification | Parameter | Specification | Parameter |
| Pixel Pitch | 16 mm | Module size | 256 mm*128 mm |
| Pixel composing | 1R1G1B | Display resolution/module | 16 dots*8 dots |
| Wavelength (R) | 625± 5 | Standard cabinet size | 1024 mm*768 mm |
| Wavelength (G) | 522± 3 | Weight per sqm | 65 Kg/sqm |
| Wavelength (B) | 567± 3 | Protection classification | IP65 |
| Wave Angle (H) | 110° (H)/ 60° | Install mode | Wallmount, hung and stand structure |
| LED package | DIP346 | Cabinet Material | Iron/Aluminum |
| Density per sqm | 3906 pixel | Working power |
| Display color | 256*256*256 | Specification | Parameter |
| Whiteness brightness | ≥ 7000 | Working voltage | AC 220v/380v± 10% 47~64Hz |
| Brightness level | 128 grade | Max power/sqm | 1100W/sqm |
| Changing frame frequency | 60 Hz | Average power/sqm | 700W/sqm |
| Refresh | 400 Hz | Short circuit protection | Yes |
| Driving method | Constant Static |
|
|
| Control mode | synchronous | Working environment |
| Display port | DVI | Specification | Parameter |
| Display mode | 1024*768 /1024*1024 | Environment | Outdoor |
| Out of control | 1/10, 000 ( scattered) | Working temperature | --20~50C |
| lifetime | 100, 000 hours | Working Humidity | 10~90% |
P16 Outdoor LED display Features of the product:1) High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
2) Having good lightening accordance and no mosaic.
3) Using virtual pixels, better viewing effect for both text & graphic and video.
4) Having larger viewing angle: Horizontal angle 100 degree / elevation angle 45 degree. Getting vivid effect within any position of the viewing range.
5) Any LED in each pixel can be respectively repaired, which reduce the cost of the display maitenance.
6) Good heat emission capability
7) Environmental-friendly.
