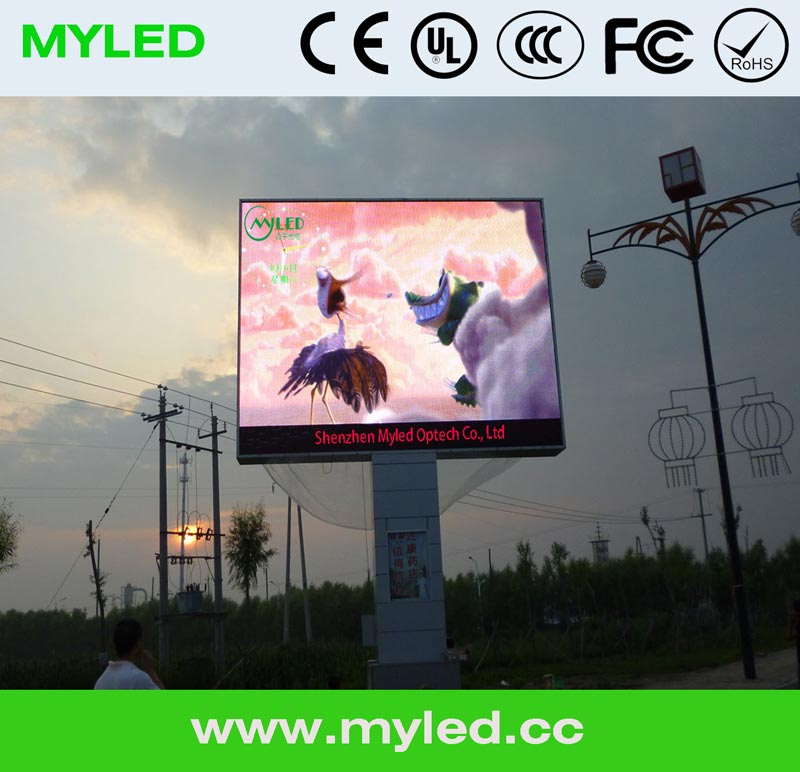

P16 outdoor full color pixel LED displays
Part A,
Display is most commonly used for showing scores/live matches and advertising for instance in a football ground, cricket ground, baseball ground, etc. For outdoor purposes and also indoor as well for basketball, ice hockey, tennis court, . We have the experience of providing both indoor and outdoor perimeter displays. The above is an example of the technical specs with reference to a 16mm outdoor LED perimeter display. For more information on other pixel pitch,
Drop us an e-mail and we will reply with full details.
Part B
Item
Unit
Parameter
Item
Unit
Parameter
Pitch
Mm
16
Module size
Mm
256*128
Desity
Dots/m2
3906
Cabinet size
Mm
1024*768*150
Pixel composing
DIP546 2R1G1B
Cabinet pixel
DOT
64*48=3072
Level angle
°
110
Cabinet weight
Kg
55
Brightness
CD/m2
≥ 7500
Max. Consumption
W/m2
1000
Driving way
1/2constant driving
AVE. Consumption
W/m2
500
Control way
Real or Virtual pixel
Voltage
220V± 10% 50Hz or AC110V± 60Hz
Part C,
Function and Technology Character
(1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
(2) 16, 348 grade grey control system and the color is Over 16.7 millions, and the brightness, contrast, saturation, chromo can be Adjusted by manual and sensor, whose scope is 256 grade.
(3) Show all kinds of word, text, graph, picture, Video, 2-dimention, 3-dimention cartoon and other information with your PC does Synchronously.
(4) Line-Double technology is adopted for the picture Adjustment.
(5) Can be connected with PC and the web net and show The content, and also can be controlled remotely via VPM+ADSLThe Sports Scoreboard.
(6) Can be used outdoor in all kinds of weather, and Excellent capability of antisepsis, waterproof.
Located in Baoan District, Shenzhen Myled Optech is an professional LED display manufacturer which is dedicated to LED display R&D; Production, sales, marketing and one stop solution for customers mainland and international. Myled provides consulting, installation, training and sales services for customers. We always regard customers as the company life line.
Shenzhen Myled Optech focus on indoor and outdoor full color LED display, LED curtain display, mesh, indoor and outdoor single and bicolor LED display manufacturing. We have established business relationship with customers in South America, Euro, and Asia etc. And win a good reputation among customers all over the world. And we provide full solution for Government, Telecom, Hotel, airport, bus station, stadium, and cinema and financial center, etc. Over the past years, we have finished some important LED display project for South American and China Mainland.
Quality is the most important theme for Myled and welcome to contact, and visit our company.
We hold the truth that better quality, better price and better sales services are our company culture.
