Product description:

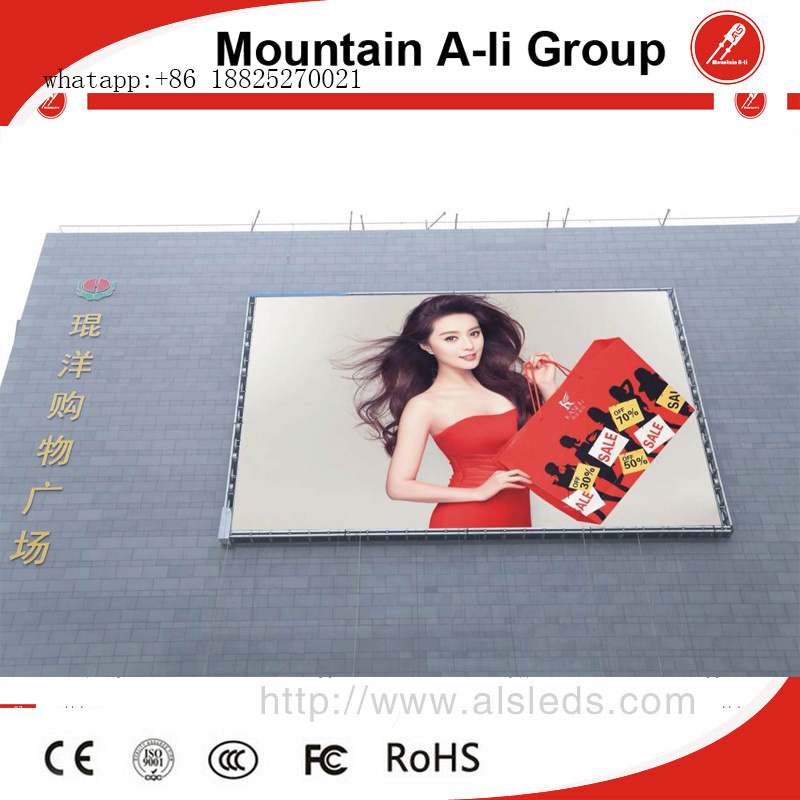

The configuration of P10 outdoor surface mounted module led display is 1R1G1B. The gap can be controled less than 02mm,cabinet installation just 20 seconds. Widely used in a variety of needs of large hall,sports arena,banking,telecommunications,govermentagencies,terminal,pier,railway stations,the stock market and other trading market,medical systems.electric power,galleries and other publicity,advertising,infomation dissemination,the guide places.
Product Advantage:
1.Light, color can be customized.
2.Full magnesium desigh,cooling well,no fans,no noise.
3.High precision.
4.Fast disassembly module just 10seconds.
5.Convenient replacement and maintenance.
6.Durable cabinet structure.
7.Well waterproof,well dust proof.
Product Parameter
| Item | Parameter |
| Unit Module | Module size | 320mm*160mm |
| Pixel pitch | 10mm |
| Pixel density | 10000dots/m² |
| Pixel configuration | 1R1G1B |
| Package mode | SMD3535 |
| | Pixel resolution | 32dots(W)*16dots(H) |
| Max power consumption | 20W |
| Module thinkness | 25cm |
| Weight | 0.5kg |
| Drive type | constant current driving |
| Scan mode | 1/4 scan |
| Port type | HUB75 |
| Brightness of white balance | ≥5000cd/m² |
|
|
|
| Unit Module | Cabinet size | 960mm*960mm |
| Cabinet composing | 18cs |
| Power supply module | 5V/40A 5V/60A |
| Cabinet resolution | 96*96dots |
| Best viewing distance | 10m~50m |
| Best viewing angle | 160°(W)120°(H) |
| Temperature | storage:-35ºC~+85ºC
working:-20ºC~+50ºC |
| Relative humidity | 10%~95% |
|
|
|
| Power | Working voltage | AC220±10% |
| Average power consumption | ≤400W/H |
| Max power consumption | ≤ 600W/ h |
| Current | ≤20mA(single LED) |
|
|
|
| Control system | CPU | pentium4 or above |
| Operation system | WIN98/2000/NT/XP |
| Control method | synchronization with PC |
|
|
|
| Main technical parameter | Driving device | constant current driver IC |
| Refresh frequency | ≥600HZ |
| Grey scale/colors | RGB each 256 grade,can display 16.7M colors |
| MTBF | ≥9000hours |
| Power switch | automatic switch |
| Display module | 800*600/1024*768/1280*900 |
