Product Description
Product Details
Basic Info.
Model NO.: P10
Display Type: Text Display
Tube Chip Color: Single Color
IP Rating: IP65
Pixel Configuration: 1R
Pixel Pitch: 10mm
Display Function: Text Display
Scanning Mode: 1/4 Scan
Certification: CE, RoHS
Pixel Density: 10000 dot / m²
Average Power Consumption: 150W / m²
Pixels Pitch: 10mm
Configuration: 1R
Work Method: 1/4
Pixel LED: DIP 348
Density: 10000dots/M2
White Balance Luminance: ≥ 2000CD/M2
Export Markets: Global
Additional Info.
Packing: Carton/ Wooden Case or Fly Case
Standard: PH10mm
Origin: Shenzhen China
Production Capacity: 5000 Sqm Per Month
Product Description
*Weatherproof to IP65 standards
*High resolution images
*Easily configured for various size and aspect ratios
*Wide viewing angle
*Brightness from 2000 nits onwards

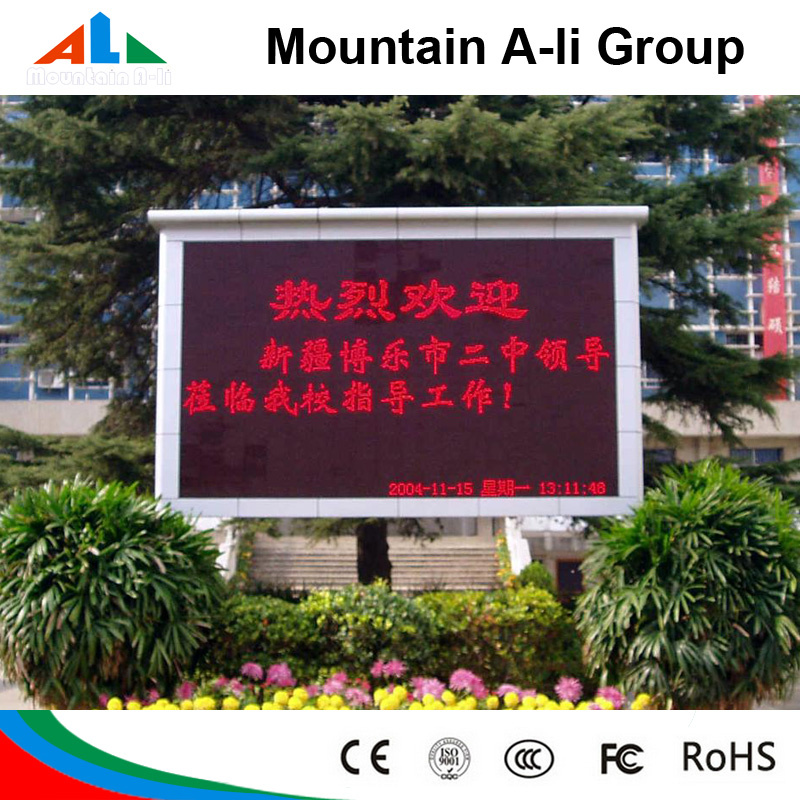

Mountain A-Li full color outdoor led electronic display has many advantages as following:
1. Energy saving.
2. Colorful, fresh & beautiful images.
3. Competitive price.
4. Superior Uniformity.
5. Extra-high Brightness.
6. The LED display screen is comprised by the cabinet.
7. The LED Display cabinet has a fixed size(standard size).
8. We can expand the size of the LED display according to our requirement based on the cabinet size.
9. High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
10. Having good lightening accordance and no mosaic.
11. Having larger viewing angle: Horizontal angle 160degree / elevation angle 120degree. Getting vivid effect within any position of the viewing range.
12. Any LED in each pixel can be respectively repaired, which reduce the cost of the display maintenance.
13. Good heat emission capability.
14. Environmental-friendly.
15. We can offer high quality outdoor led display, indoor led display, led screen, led sign, led advertising display, led electronic display, led display, led screen, led module, led sign, led clock, outdoor full color led display, led billboard, led display screen, led panel, led display panel, led, display, outdoor led display, led display board, p10 led module, led board, led outdoor display, led display module, led display outdoor, display board, sign board, scoreboard, billboard, advertising display, football, led curtain, advertising, led video wall, car video, led controller, led signs, p10, taxi led advertising, 7 segment display, color tv, hd led display, sign, led pixel 12mm, digital display, display screen, led module display, led sign board, led tv display, and so on.
| The specifications of modules |
|
| Items | Parameter |
| Product Model | P10 Full Color Led Module |
| Module size | 160mm*160mm |
| Pixel pitch | 10mm |
| Pixel density | 10000dots/m2 |
| Pixel configuration | 1R1G1B |
| Module resolution | 16dots(W)*16dots |
| Module maximum power consumption | 20W |
| Module Thickness | 25CM |
| Module Weight | 0.55kg |
| Driving method | Constant Current Driving |
| Scanning method | 1/4 scan |
| Interface | HUB75B |
| Brightness | ≥8500cd/m2 |
| The specifications of cabinets |
|
| Cabinet size | 960mm*960mm |
| Module quantity | 36pcs |
| Power supply | 5V/40A 5V/60A |
| Cabinet resolution | 96*96dots |
| Optimal viewing distance | 10M ~ 50M |
| Optimal viewing angle | 160°(W) 120°(H) |
| RHWorking temperature | (Work :-20 degree~ +50 degree ) |
| System operating humility | 10%-95% |
| The specifications of power supplier |
|
| Operating Voltage | AC220V±10% |
| Average power consumption | 350W/H |
| Maximum power consumption | ≤700W/m2 |
| Electric current | ≤20mA(single LED) |
| The specifications of control card |
| Control Panels | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization with PC |
| The specifications of the main technical parameters |
|
| Driving device | Constant Current Driving |
| Refresh rate | ≥2200HZ |
| Grey scale | RGB Each 256, can display 16.7M colors) |
| MTBF | ≥9000hours |
| Power switch | Automatic Switch |
| Display Mode | 800*600/1024*768/1280*900 |
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
