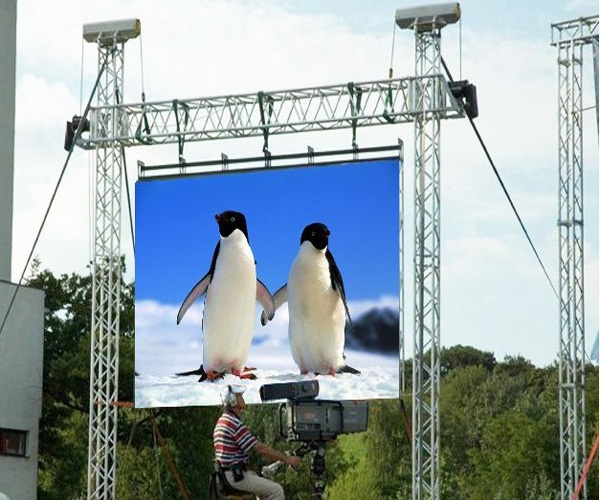

P10 Outdoor fullcolor LED dispaly
1. Feature of product
(1) It could adjusted the 1-100levels brightness by software and suit for WINXP, WIN2000&WIN98 operate system. Support multiplied file formats, such as AVI, MOV, MPG, DAT, VOB or more comprehensive.
(2) We have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
(3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
(4) Line-Double technology is adopted for the picture adjustment.
(5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
(6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.
2. Cabinet structure feature
Cabinets with backshell and fans for colling. Connect locks on four sides of cabinets and dowel pins on the upper side make the construction solid. Hang suspenders inside cabinets and hang pins on the upper sides of cabinets make it easy for hanging installation. The cabinet of this kind is mainly used for hire, and it also can be made as moveable display.
Cabinet material: Aluminum, Iron
|
Pixel pitch: 10 mm |
Display color: 2 R 1G1B |
|
Resolution pitch: 16*16 |
Density of pixel(dot/sqm): 10000 |
|
Unit board Size: 160 mm* 160mm |
M inimum view distance(m): 6m |
|
The Optimum viewing angle:±110° (H) ± 3 5 ° (V) |
|
Control mode: synchronous/asynchronous |
|
Working voltage:220V±10% |
Average Power consumption(W/sqm) :1000 |
|
Driving method: Constant current static scan |
Luminance of white balance(CD/sqm) : ≥150 |
|
Change the frequency of frames(HZ/s) : ≥60 |
Refresh rate(HZ/s) : ≥ 400 |
|
Working environment temperature:- 3 0°~+ 6 0°C>(Optional-40°C+60°C) |
|
Grey scale/color: Display≥ 16k / full colors(synchronized) |
|
Brightness adjustment: Manual R.G.B color 16k grades are adjustable, automatic 8 grades are adjustable |
|
Input signal format: RF,S-Video, RGB,RGBHV,YUV,YC,COMPOSITION etc |
|
Control system: PCIV card(optional)+DVI card +master control card +optical transmitter(optional) |
|
MTBF>5000hours |
|
Life-span>100000hours; |
|
Blind spot rate<0.0001 |
Shanghai Harse Electromechanical Technic Co., Ltd., located Shanghai, focus on providing LED & Advertising products for more than 6 years. As a professional and experienced company, relying on our efficient managing & marketing team, strong technique support and experienced designers, it has completed many big LED projects at home and abroad during these time.
"To emphasize communication, mutual win-win, business integrity, " we always implement the policy. Relying on manufacturing base of Shanghai, Zhejiang & Guangdong area, we are always committed to offering best cost efficient products with better quality.
Main business:
1. Full color LED display, outdoor LED sign, indoor LED screen, Advertising LED billboard. Providing project design and installation, turn-key project.
2. Scrolling light box, verticl light box and wall-mounted scrolling light box.
3. High power LED lamp, LED high bay light, with chips of Phlips, OSRAM, CREE, BRIDEGLUX.
Welcome to our Showroom and My Products for more detailed offer info.
