P10 Indoor Full Color Flexible LED Display Module

p10 Indoor Full Color Flexible LED Display Module


specification:

Part Number	HERO-IDS4F-8S
Resolution	32(H)×16(V)
Pixel Pitch	10mm
LED Configuration	1R1PG1PB SMD3 IN 1
Pixel Density	10000 pixels/ m2
Module Size	320*160mm
Driving IC	MBI5024
Driving Method	1/8 Scan, Constant Current
Cabinet Weight	45kg/sq.m.
Mechanical Ratings
Hanging Weight Support	2T
Surface Flatness	0.1mm
Optical Ratings
Brightness	1000cd/ m2
View Angle	140°/140°
Gray Scale	16 bits
Display COLOR	281 Trillion
Brightness Adjustment	0~100%
Power Supply
Operation Power	110V /60Hz ,220V/50Hz
Max. Power Consumption	280W/ m2
Average Power Consumption	100W/ m2
Control System
Control Mode	Synchronous display with control PC by DVI
Frame Update Frequency	60~85fps
Screen Refresh Frequency	>1920Hz
Gamma Correction	-5.0~+5.0
Support Input	Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance	Ethernet cable<120m or Fiber Optic<10Km
Support VGA Mode	1024×768, 1280×1024, 1600×1200, 1920×1280
Brightness Correction	Pixel, Module, Cabinet
Environmental
Operating Temperature	-20°~+60°
Operating Humidity	10~95% RH
Operating Life	100,000hours
MTBF	10000hours
Protection Level	~
Out of Control Rate	<0.02%


Description:
1.Flexible and soft ( soft PCB board ), the module to some certain can be bent.
2.Silicone mask,has good flatness.
3.Pixel density can reach 22500 dots/sq.m,can show HD videos.

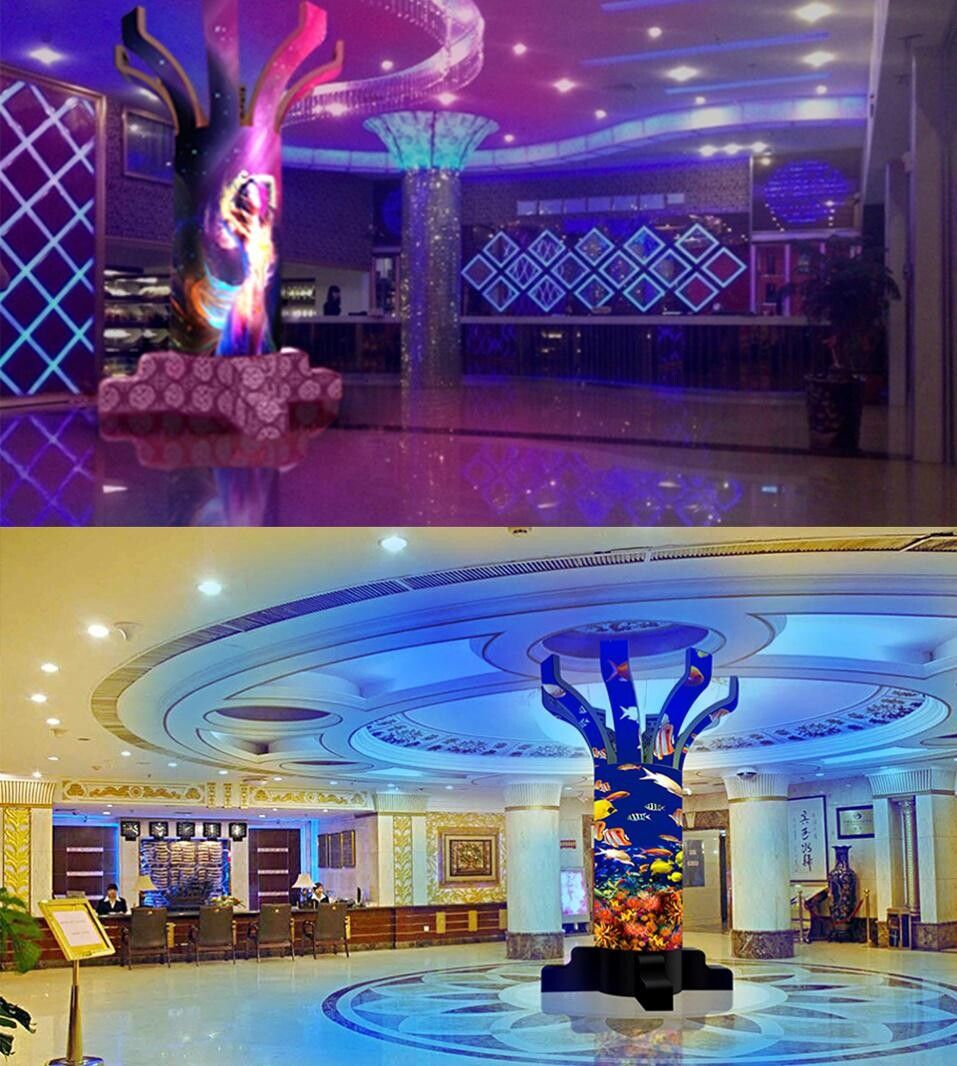

4.Can meet clients various shape request, such as ( cylinder, bottle, curve, wave flower, torch etc.)
5.Perfect signal transfer, support various signal, such as AV,DP,VGA.DVI,HDMI,high fidelity image playing.
6.High refresh rate, support hanging permanent installation and so on, a good choice for stage decoration.

Applications:
Widely used in amusement park, football stadium, supermarket, hotel, commercial central business district, shopping mall, stage decoration and etc.


Packing and transportation

Professional packaging:wooden box or flight case.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
Faultlessly solve your worries in the transportation.



About Hero

8-year's experience in LED screen, our factory has the ability of processing, researching and developing led display to ensure the prolificacy.A strict quality control process to make sure the led display screens is with high quality.

After-sale service
1) Warranty:
Free to solve the quality problems to ensure that equipment normal operation in the warranty period . At any time, we bear all the responsibility, when the problem is from the product itself.
2) Free maintenance:
Free warranty in the warranty period.
Only charge the cost of raw materials, provide spare parts and maintenance services for the lowest price after the warranty period.
3)quick response:
Response within 2 hours, non-artificial, general fault solution within 24 hours, and acceptable failure resolved within 48 hours.
4) Free support:
Through telephone or network to provide service support in real time, or with the help of a network for remote debugging support (software), to solve the problem.
