Product Description

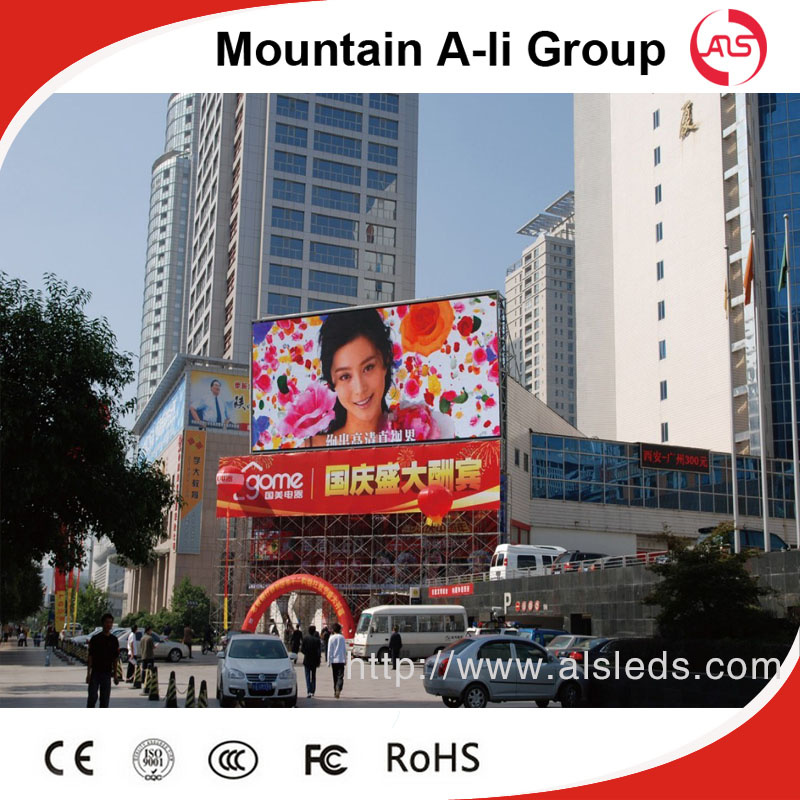

Standard P10 Outdoor Full-color LED Billboard
Application:
Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
Unit Module | Item | Parameter |
| Module | P10 Full Color Led Module |
| Module Size | 160mm*160mm |
| Pixel Pitch | 10mm |
| Pixel Density | 10000dots/m2 |
| Pixel Configuration | 1R1G1B |
| Module Resolution | 16dots(W)*16dots(H) |
| Max Power Consumption | 20W |
| Module Thickness | 25cm |
| Module Weight | 0.5kg |
| Driving Method | Constant Current Driving |
| Scan Method | 1/4 Scan |
| Interface Way | HUB75 |
| Brightness | ≥7500cd/m2 |
| Cabinet Module | Cabinet Size | 960mm*960mm |
| Cabinet Composing | 36pcs |
| Power Supply Mode | 5V/40A 5V/60A |
| Cabinet Resolution | 96*96dots |
| Optional Viewing Distance | 10m-50m |
| Optional Viewing Angle | 160°(W) 120°(H) |
| Environment Temperature | Work :-20°C~+60°C |
| Relative Humidity | 10%-95% |
| Power | Operating Voltage | AC220V±10% |
| Average Power | 350W/H |
| Max Power Consumption | ≤700W/m2 |
| Current | ≤20mA |
| Control System | Computer | Pentium4 or above P4 or above |
| Operate System | WIN98/2000/NT/XP |
| Control Mode | Synchronization with PC |
Main technical parameter | Driving Rate | IC Constant Current Driving |
| Refresh Rate | ≥600HZ |
| Gray/Color | RGB each 256 grade,can display 16.7M color |
| MTBF | ≥9000hours |
| Power Switch | Automatic Switch |
| Display Mode | 800*600/1024*768/1280*900 |
Why choose Shenzhen Mountain A-Li Group Electronic Technology Co.,LTD
Main features:
1), Vivid and exact picture, minimum noise, advanced test equipment, support any PC operation system and play a variety of information likevideo, word, flash, music, clock, graph etc.
2), High brightness and support brightness automatically adjustment.
3), Long lifespan, can reach more than 100, 000 hours, while the power consumption is lower than one tenth of lamp or neon;
4), Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display system;
5), Rich outdoor full color LED display screen engineering experience both in domestic and international market.
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 7years
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
