| Item | Parameter |

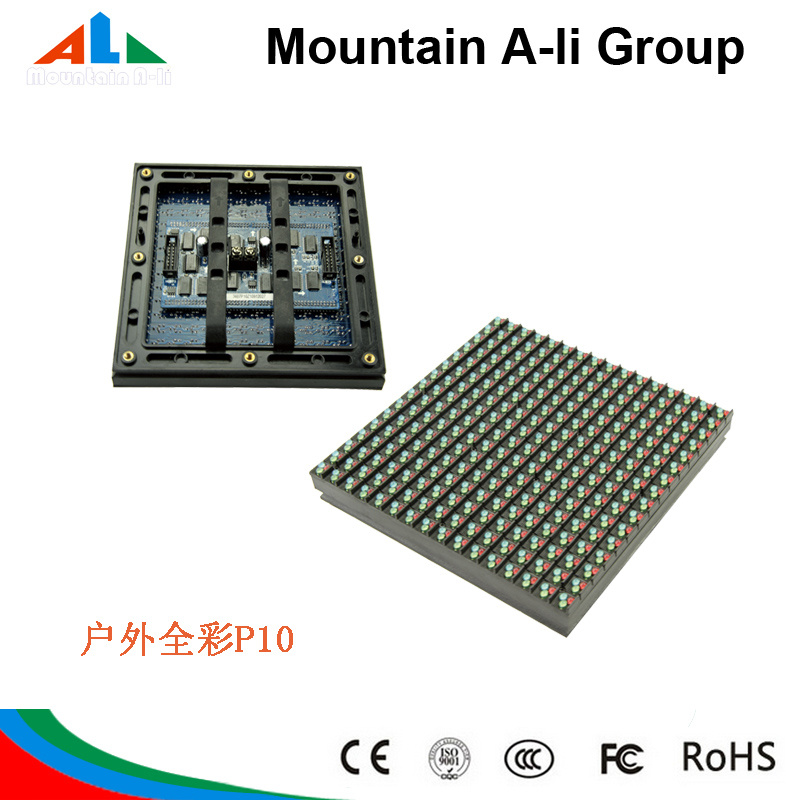

| Model | P10 full color LED module |
| Module size | 160mm * 160mm |
| Pixel pitch | 10mm |
| Pixel density | 10000dots/m² |
| Pixel configuration | 1R1G1B |
| Module resolution | 16dots(W) * 16dots(H) |
| Max power consumption | 20W |
| Module thickness | 25mm |
| Module weight | 0.5KG |
| Driving method | Constant current driving |
| Scan method | 1/4 scan |
| Interface way | HUB75 |
| Brightness | ≥7500cd/m² |
| Cabinet size | 960mm * 960mm |
| Quantity of module | 36pcs |
| Power supply mode | 5V/40A 5V/60A |
| Cabinet resolution | 96*96dots |
| Optimal viewing distance | 10M - 50M |
| Optimal viewing angle | 160º(W) 120º(H) |
| Environment temperature | -20º ~ +50º |
| Relative humidity | 10% - 95% |
| Operating voltage | AC220V ± 10% |
| Average power | 350W/H |
| Max power consumption | ≤700W/m² |
| Current | ≤20MA(single LED) |
| Control mode | Synchronization with PC |
| Driving device | IC constant current driving |
| Refresh rate | ≥600HZ |
| Gray/Color | RGB each 256 grade,can display 16.7M color |
| MTBF | ≥9000hours |
| Power switch | Automatic switch |
Product Features.1. With good lightening accordance and no mosaic.
2. Led advertising board can play different formats of image files, flash, video signal from TV.
3. Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced.
4. High brightness, and can be adjustable, meets the need of changing requirement of customer in environment.
Applications:Led advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc.
Our Services:Mountain A-Li has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.Pre-sale service:1. Reply enquiries in 24 hours.2. Market research and forecast for customer.3. Provide unique and professional solutions based on customer's requirement.4. Data sheet and samples offer.5. Other services, such as special packing design, factory visiting and so on.In-sale service:1. Tracking report in producing.2. Quality test report for every order.3. Photos and videos as per customer's requirement.4. Free spare parts.After-sale service:1. Lifetime free maintenance and upgrade.2. Complaint respond period not exceed 24 hours; maintenance guidance and problem

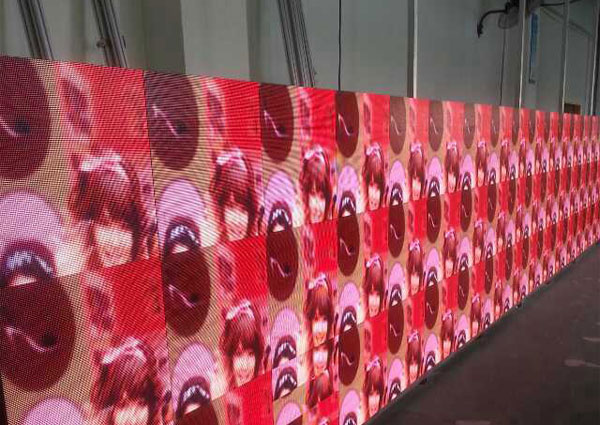

solution supplied in 48 hours.3. Customer satisfaction tracking report.4. Free technician training.5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.6. Special service for big project, such as stadium, exhibitions, squares and so on.Aging test.
Project Cases.
Trade Term:
Payment Term:T/T 30% deposit before production,the balance before delivery.
Delivery: 10-20 working days after deposit.
Packaging: Wooden or flight case.
Shipping port: Shenzhen,China.
Shipping freight are quoted according to your requests.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
