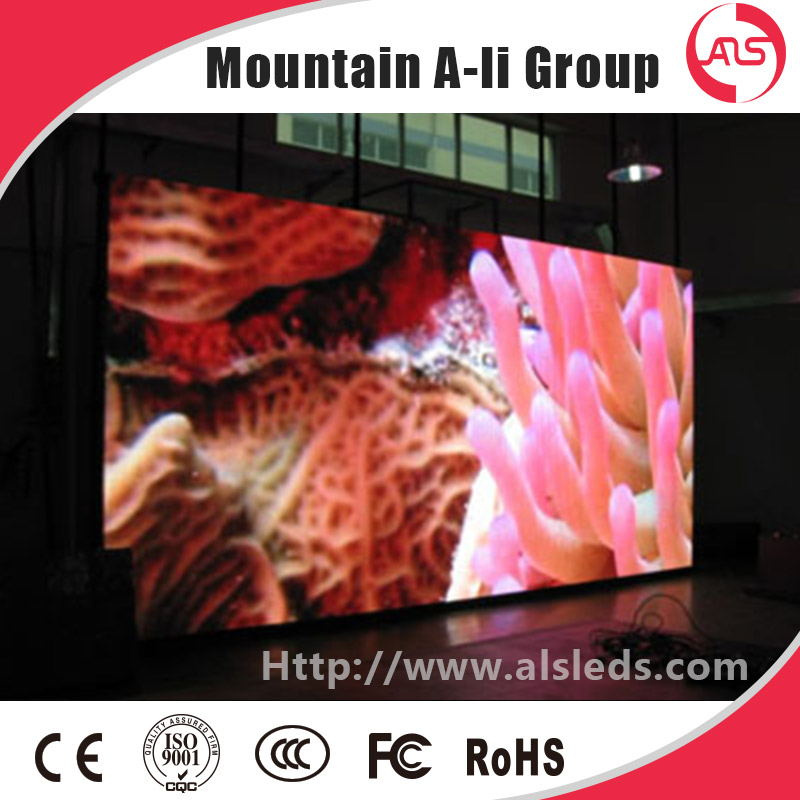

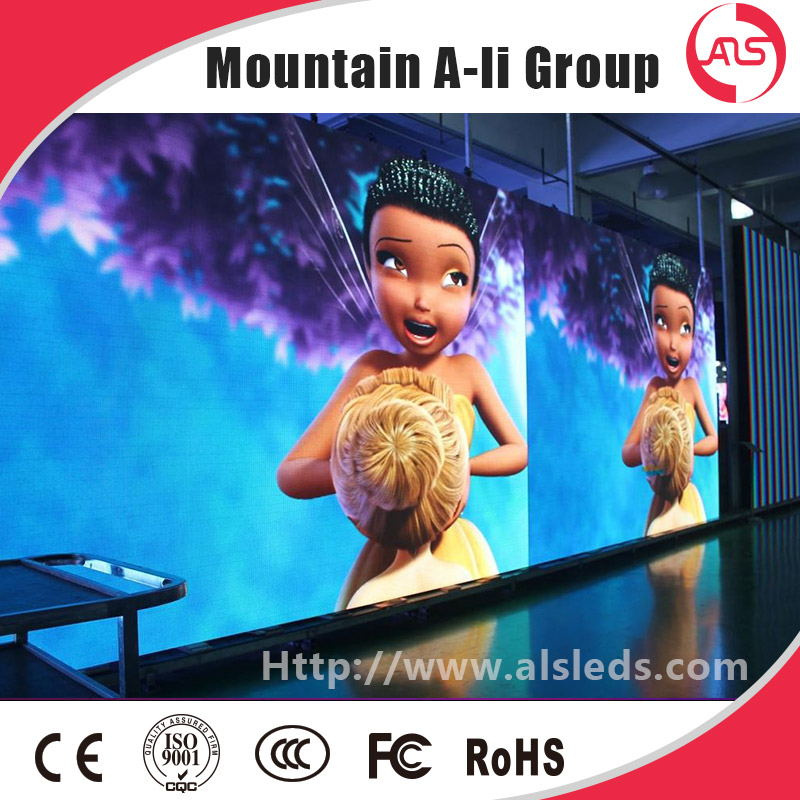

P10 HD Outdoor Full Color Led DisplayProduct Features : 1.Ultra-high-definition display, high-precision seamless. 2.The new structure designed to meet the lifting, stacking requirements, to meet the requirements for indoor and indoor. 3.Ultra-high refresh rate, support the camera recorder, to ensure a clear picture quality. 4.Quick editing of assembly, disassembly system, saving unloading time. Using Range: Widely used in a variety of needs large hall, sports arena, banking, telecommunications, government agencies, terminal,pier, railway stations, the stock market and other trading market, medical systems, eletric power, galleries and other publicity, advertising, information diseemination, the guide places.Specifications| The specifications of modules |
|
| Items | Parameters |
| Product Model | P10 Full Color Led Module |
| Module size | 160mm*160mm |
| Pixel pitch | 10mm |
| Pixel density | 10000dots/m2 |
| Pixel configuration | 1R1G1B |
| Module resolution | 16dots(W)*16dots |
| Module maximum power consumption | 20W |
| Module Thickness | 25MM |
| Module Weight | 0.5kg |
| Driving method | Constant Current Driving |
| Scanning method | 1/4 scan |
| Interface | HUB75 |
| Brightness | ≥7500cd/m2 |
| The specifications of cabinets |
|
| Cabinet size | 960mm*960mm |
| Module quantity | 36pcs |
| Power supply | 5V/40A 5V/60A |
| Cabinet resolution | 96*96dots |
| Optimal viewing distance | 10M~50M |
| Optimal viewing angle | 160°(W) 120°(H) |
| RHWorking temperature | (Work :-20°C~+60°C) |
| System operating humility | 10%-95% |
| The specifications of power supplier |
|
| Operating Voltage | AC220V±10% |
| Average power consumption | 350W/H |
| Maximum power consumption | ≤700W/m2 |
| Electric current | ≤20mA(single LED) |
| The specifications of control card |
| Control Panels | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization with PC |
| The specifications of the main technical parameters |
|
| Driving device | Constant Current Driving |
| Refresh rate | ≥600HZ |
| Grey scale | RGB Each 256, can display 16.7M colors) |
| MTBF | ≥9000hours |
| Power switch | Automatic Switch |
| Display Mode | 800*600/1024*768/1280*900 |
Why choosed us:
1.Price Advantage: No.1 cost effective 2.Quality advantage: serious QC control system , best material 3.Service advantage: after service dept& Tech Dept. Perfect after sales system 4.ISO9001,CE , CCC,ROHS Certificates Trade Terms: 1.Packing: Anti-shaking wooden cabinet /Air flight case/carton 2.Shipping port: Shenzhen. China 3.Shipping freights are quoted according to your requests 4.Delivery time:10-15 working days 5.2 years warranty ,lifelong maintaining. After-sales service:1.Service principles:Reponse in time, solve problems as soon as possible and ensure the use.Top
quality+reasonable price+responsible after service=successful & win .
2. Service period:In the Maintenance period of the LED screen body, free of all maintenance charges;
After Maintenance period, only charge the material costs fees free of manual work fees.
3. Service scope:If the users find any problem that cannot be solved, please contact with our company, we can
response in 24 hours.In order to shorten the maintenance time, Our Company will deploy some spare parts such
as power and chips etc.
4. Under normal use and storage, Our Company will be responsible for the equipments .Special service for big
project, such as stadium, exhibitions, squares and so on .
Pre-sales service:1. Our company can arrange professionals to conduct site installation and debugging in strict accordance with
the requirements of the schemes and the original manual.If there is any special requirement, it is necessary to
make changes of part installation scheme, we will coordinate with users.Our company can ensure the consistence
of completion time and contracted time.Any problems caused by natural factors or man-made, we will discuss with
client to find solutions.
2. Our company can train the users based on the manual.The training include system use, system maintenance
and equipment protection
3. Support prints your logo on products and let your logo shine anywhere.OEM/ODM orders are warmly welcome.
Pictures about us:

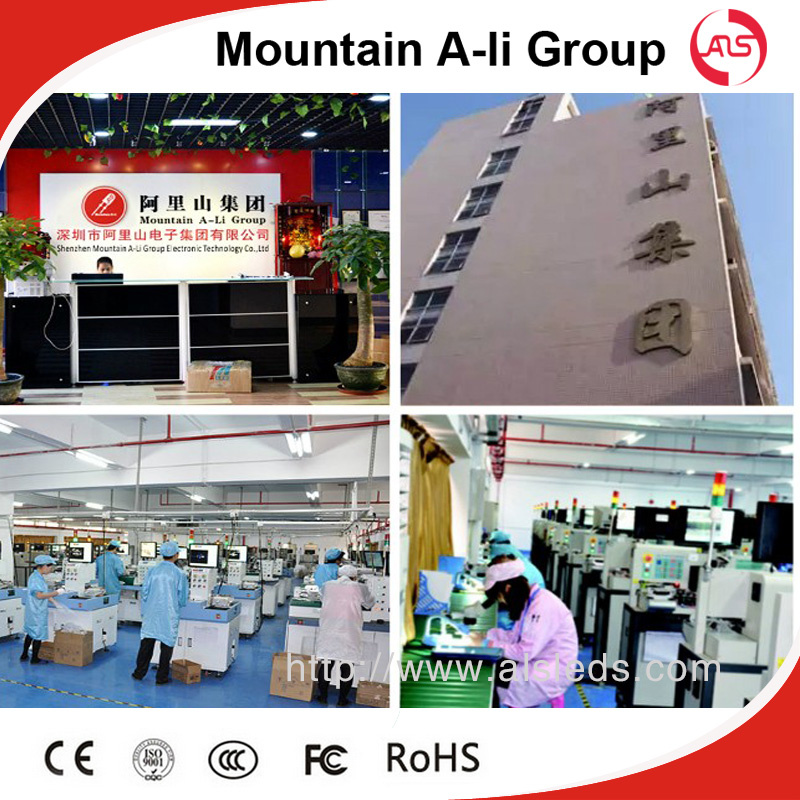

Our company:![]()
Certificates![]()
![]()
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
