Item | Parameter |

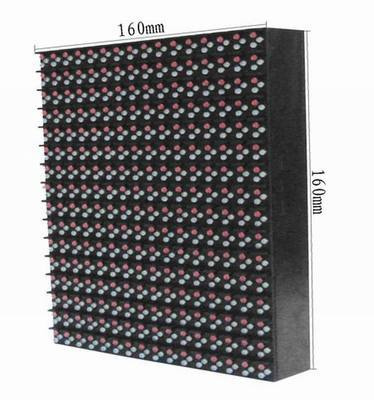

| Model | P10 full color LED module |
| Module size | 160mm * 160mm |
| Pixel pitch | 10mm |
| Pixel density | 10000dots/m² |
| Pixel configuration | 1R1G1B |
| Module resolution | 16dots(W) * 16dots(H) |
| Max power consumption | 20W |
| Module thickness | 25mm |
| Module weight | 0.5KG |
| Driving method | Constant current driving |
| Scan method | 1/4 scan |
| Interface way | HUB75 |
| Brightness | ≥7500cd/m² |
| Cabinet size | 960mm * 960mm |
| Quantity of module | 36pcs |
| Power supply mode | 5V/40A 5V/60A |
| Cabinet resolution | 96*96dots |
| Optimal viewing distance | 10M - 50M |
| Optimal viewing angle | 160º(W) 120º(H) |
| Environment temperature | -20º ~ +50º |
| Relative humidity | 10% - 95% |
| Operating voltage | AC220V ± 10% |
| Average power | 350W/H |
| Max power consumption | ≤700W/m² |
| Current | ≤20MA(single LED) |
| Control mode | Synchronization with PC |
| Driving device | IC constant current driving |
| Refresh rate | ≥600HZ |
| Gray/Color | RGB each 256 grade,can display 16.7M color |
| MTBF | ≥9000hours |
| Power switch | Automatic switch |
P10 Outdoor Led Display with High Quality Features.
1,High brightness DIP and SMD LED are used for outdoor led display, keeps the display content visible even if facing the strong
sunshine directly.
2,With Anti-UV ray mask, the color of the mask would never change even if under exposure of UV ray.
3,Waterproof design, completely outdoor use.
4,Easy for assembling and connection with the connector added.
5,High color uniformity and clear image can bring you a vivid audio visual effect.
6,Use the same level of red, green and blue led chips, which makes the image display of whole led display more excellent
and uniform.
7,Good quality raw material, accurate technique and careful inspection insures the high quality of led display.
8,The shape and size can be made according to your requirements.
Applications:
Led advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc.
