Product description:

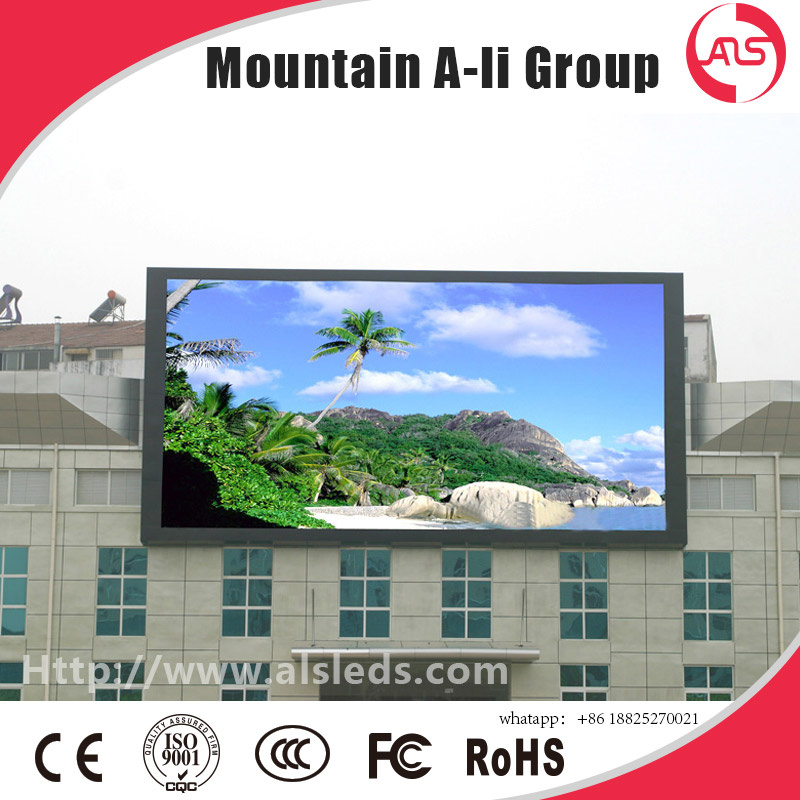

The configuration of P8 outdoor surface mounted module led display is 1R1G1B. The gap can be controled less than 02mm,cabinet installation just 20 seconds. Widely used in a variety of needs of large hall,sports arena,banking,telecommunications,govermentagencies,terminal,pier,railway stations,the stock market and other trading market,medical systems.electric power,galleries and other publicity,advertising,infomation dissemination,the guide places.
Product Advantage:
1.Light, color can be customized.
2.Full magnesium desigh,cooling well,no fans,no noise.
3.High precision.
4.Fast disassembly module just 10seconds.
5.Convenient replacement and maintenance.
6.Durable cabinet structure.
7.Simply installation,easy to maintain,easy to use.
Product Parameter
| Item | Parameter |
| Unit Module | Module size | 320mm*160mm 256mm*128mm |
| Pixel pitch | 8mm |
| Pixel density | 15625dots/m² |
| Pixel configuration | 1R1G1B |
| | Pixel resolution | 40dots(W)*20dots(H) 32dots(W)*16dots(H) |
| Max power consumption | 25W |
| Weight | 0.55kg |
| Drive type | constant current driving |
| Scan mode | 1/5 scan 1/4 scan |
| Port type | HUB75-B |
| Brightness of white balance | ≥6200cd/m² ≥6500cd/m² |
|
|
|
| Unit Module | Cabinet size | 640mm*640mm |
| Cabinet composing | 8pcs |
| Power supply module | 5V/40A 5V/60A |
| Pixel per cabinet | 80*80dots |
| Best viewing distance | 8m~50m |
| Best viewing angle | 160°(W)120°(H) |
| Temperature | storage:-35ºC~+85ºC
working:-20ºC~+50ºC |
| Relative humidity | 10%~95% |
|
|
|
| Power | Working voltage | AC220±10% |
| Average power consumption | 400W/H |
| Max power consumption | ≤ 800W/m² |
| Current | ≤20mA(single LED) |
|
|
|
| Control system | CPU | pentium4 or above |
| Operation system | WIN98/2000/NT/XP |
| Control method | synchronization |
|
|
|
| Main technical parameter | Driving device | constant current driver IC |
| Refresh frequency | ≥600HZ |
| Grey scale/colors | RGB each 256grade,can display 16.7M colors |
| MTBF | ≥9000hours |
| Power switch | automatic switch |
| Display module | 800*600/1024*768/1280*900 |
