Outdoor Single Color LED Display(pH16mm)
1. Function

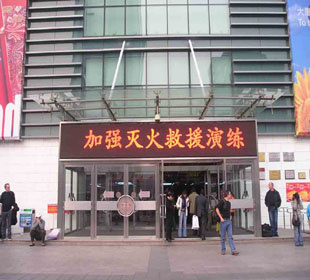

It can be used in the traffic environmetns, such as bus stop, airport, part and so on as the guiding system. And it can also be used in banks, estate, stock to show the information of stock, exchange, estate and so on. Also, it is very popular in shops, gym, postoffice, hotel etc to show the important information.
2. Technology Character
(1) Can be controlled by LAN remotely.
(2) Distributing scanning method and modularity in designsf.
(3) Constant static driving method and the brightness can be adjusted by itself.
(4) Super brightness and pure pixels
(5) Clear pictures with distortion and doubble images.
(6) Can show video, cartoon, graph, letters, pictures and so on.
Display and Control Feature |
Structure Feature |
Specification |
Parameter |
Specification |
Parameter |
Pixel Pitch |
16 mm |
Moduel size |
512 mm*256 mm |
Pixel compaosing |
2R/2G |
Display resolution/module |
32 dots*16 dots |
Density |
3,906 dots/sqm |
Best viewing distance |
5~150- m |
Wavelength (R) |
625±5 |
Weight per sqm |
35 Kg/sqm |
Wavelength (G) |
522±3 |
Vedio signal |
RF, S-Vedio, RGB, RGBHV, YUV, YC. |
Wave Angle (H) |
120° |
Control system |
PCTV card+DVI card+control card |
Wave Angle (V) |
60° |
Install mode |
Wallmount, hung and stand structure |
LED package |
Matrix |
Working Power |
Color |
R/Y/G |
Specification |
Parameter |
Whiteness brightness |
≥320 cd |
Working voltage |
AC 220v/380v±10% 47~64Hz |
Brightness adjustment |
100 grade |
Max power/sqm |
460W/sqm |
Changing frame frequency |
60 Hz |
Average power/sqm |
300W/sqm |
Refresh |
180 Hz |
Short circuit protection |
Yes |
Driving method |
Constant driving 1/2 |
|
|
Control mode |
Synchronous/Asynchronous |
Working Environment |
Display port |
DVI |
Specification |
Parameter |
Display mode |
1024*768 /1024*1024 |
Environment |
Outdoor |
Out of control |
1/10,000 ( scattered) |
Working temperature |
0~50 |
lifetime |
100,000 hours |
Working Humidity |
10~90% |
Shanghai Harse Electromechanical Technic Co., Ltd., located Shanghai, focus on providing LED & Advertising products for more than 6 years. As a professional and experienced company, relying on our efficient managing & marketing team, strong technique support and experienced designers, it has completed many big LED projects at home and abroad during these time.
"To emphasize communication, mutual win-win, business integrity, " we always implement the policy. Relying on manufacturing base of Shanghai, Zhejiang & Guangdong area, we are always committed to offering best cost efficient products with better quality.
Main business:
1. Full color LED display, outdoor LED sign, indoor LED screen, Advertising LED billboard. Providing project design and installation, turn-key project.
2. Scrolling light box, verticl light box and wall-mounted scrolling light box.
3. High power LED lamp, LED high bay light, with chips of Phlips, OSRAM, CREE, BRIDEGLUX.
Welcome to our Showroom and My Products for more detailed offer info.
