Outdoor P8mm High Definition Video LED Display
1. Applications:
Our full color LED sign are widely used in commercial advertising, entertainment industry, financial industry, communications, power sector, traffic, stadium, plaza, school, airport, bus station etc., for advertising and displaying messages.
2. High brightness:
We display support automatically or manually adjust the brightness of the LED display screen.
3. Good LED chip:
High strictly selected LED chips to ensure the long lifetime and high brightness of our LED display system.
4. Clear vivid image quality:
Throughout the show, the picture clear, bright color.
5. Installation is simple, easy to use:
Easy and simple installation interface and user friendly software to ensure that customers use easily.
| Outdoor P8mm High Definition Video LED Display |
| Technical Parameters |
| LED Parameters |
| No. | Item | Luminous Intensity | Wavelength |
| 1 | Red LED | 600-800mcd | 620-630nm |
| 2 | Green LED | 1800-2000mcd | 520-525nm |
| 3 | Blue LED | 400-600mcd | 465-470nm |
| Module Specifications |
| 1 | Pixel Pitch | 8mm |
| 2 | Pixel Configuration | 1R1G1B |
| 3 | Module Resolution | 32 x 16 pixels |
| 4 | Module Pixles | 512 pixels |
| 5 | Module Size | 256mm X 128mm |

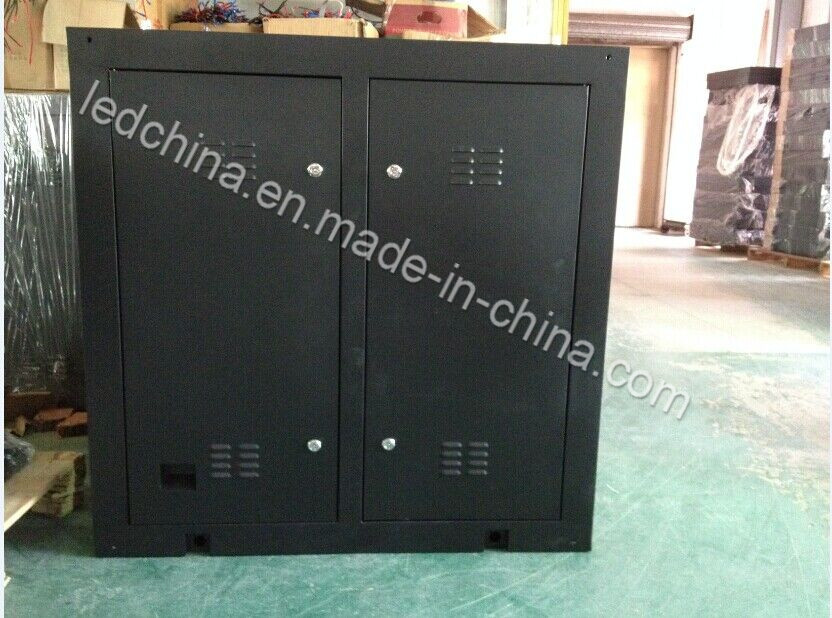

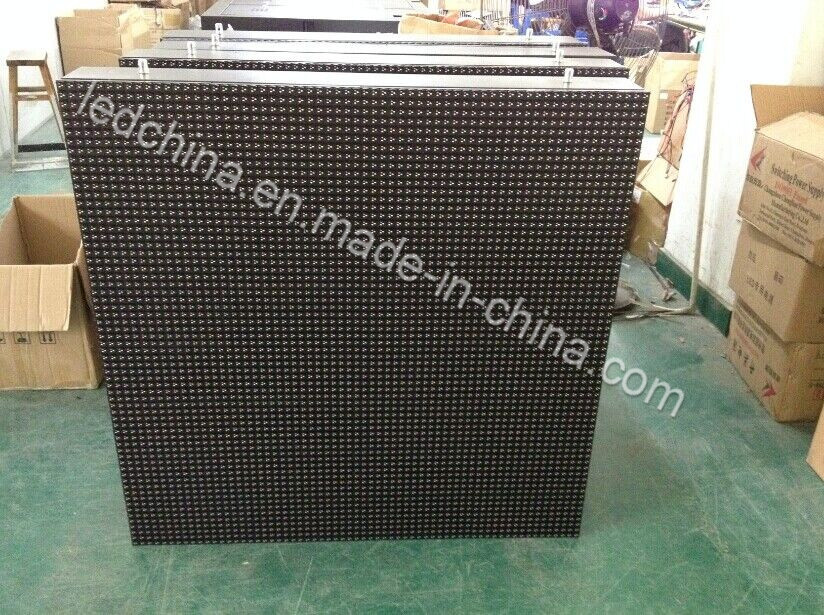

| Cabinet Specifications |
| 1 | Cabinet Size(mm)(WXHXD) | 1024mm x 768mm x 165mm |
| 2 | Cabinet Resolution(dot) | 128 x 96 pixels |
| 3 | Module Quanity (pcs) | 24pcs |
| 4 | Cabinet Pixels | 12288 pixels |
| 5 | Pixel Density | 15625 pixels/m 2 |
| 6 | Cabinet Material | Standard waterproof iron cabinet |

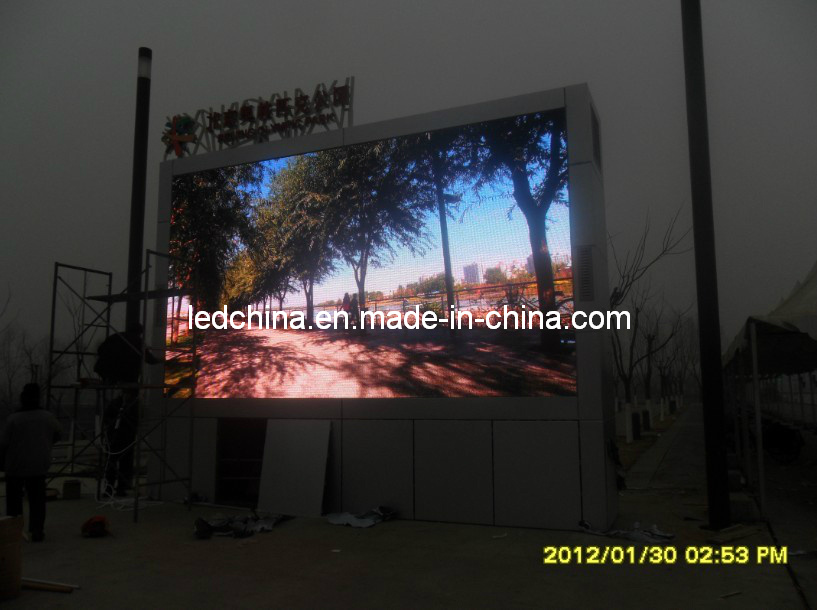

| Screen Parameters |
| LED display : |
| 1 | Display Dimension | W6.144m x H3.072m, total 18.87m2 |
| 2 | Whole Screen Resolution | W768 x H384 pixel dots |
| 3 | Cabinet Quantity | W6 x H4, total 24pcs |
| 4 | Screen Brightness | ≥6500cd/m2 |
| 5 | Screen Weight | 1100kg |
| 6 | Driving Method | 1/4 scan |
| 7 | H/V Visual Angle | 110º/50º |
| 8 | Best Viewing Distance | 8m - 150m |
| 9 | Max. Power Consumption | 1000W/m2 |
| 10 | Average Power Consumption | 600W/m2 |
| 11 | Gray Level | 8bits input, 4096 levels(2 12 ) |
| 12 | Display Color | 16M |
| 13 | Frame Frequency | ≥60Hz |
| 14 | Refresh Frequency | ≥600Hz |
| 15 | Screen Life-span | ≥100,000hours |
| 16 | MTBF | ≥5,000 hours |
| 17 | Continuous Blind Spot Rate | None |
| 18 | Blind Spot Rate | <1/10000 |
| 19 | Protective Scale | IP65 |
| 20 | Screen Plainness | <±1mm |
| 21 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
| 22 | Environment Temperature & Humidity | Temperature:-20 degrees~+60 degrees
Humidity:10%~90% RH |
| 23 | Control Mode | Synchronous display with control PC by DVI |
| 24 | Control System | DVI video card + full color control card + fiber system( optional) |
| 25 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
| 26 | Brightness Adjustment | 32 levels adjustment by software |
| 27 | Interface | Standard Ethernet |
| 28 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m |
