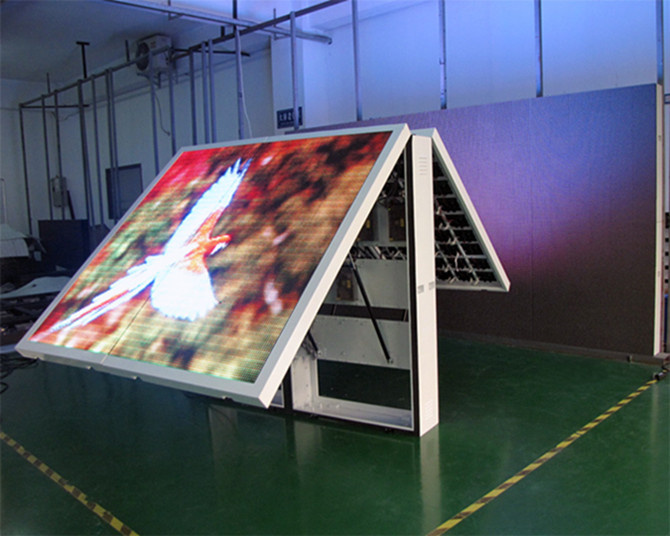

Outdoor P6 P8 P10 Double Side LED Display
| Price: |
US $ 42000/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
1) Description
LED cube display is also known as cubic LED display or LED cube screen, which is displayed in Hefei pavilion in Anhui high-tech achievement exhibition center. The length of each side of this cube is 1.28 m. It adopts PH4 high definition display. Six-surface stereo display realizes seamless connecting completely.
2) Application
LED cube display or cubic LED video display (screen, panel, curtain, wall) is extensively applied in science and technology museums, galleries, lounges, hotels, high-speed railway stations, subway stations, shopping malls, bars and other places. It adopts new performance form, which makes a strong visual impact on audience.
3) Main Features
Attractive appearance
Adopts SMD triad LED, ensure a wide viewing angle. It can show six different videos respectively and also can show one video as a whole
4) Flexible installation and transportation
Stand installation and Hanging installation both are available. Unique design makes the whole cube easy to move, install, transport and load and unload, avoiding a lot of troubles in assembling especially in rental business.
5) Customized Product
Can be customized as required sizes and pixel pitches.
| Type | P4 | P5 |
| Pixel Pitch | 4mm | 5mm |
| LED | SMD
2121 | SMD
3528 |
| Pixel Density | 62500 | 40000 |
| Pixel Configuration | IRIGIB | IRIGIB |
| Scan Mode | 1/16 | 1/16 |
| Brightness(nits) | 1800 | 1500 |
| View Angle | 360° | 360° |
| Max. Power Consumption | 833W/M² | 605W/M² |
| Nor. Power Consumption | 375W/M² | 273W/M² |
| Uniformity | Uniform brightness, uniformity 1:1.3 |
| Working temperature | -40°C~70°c |
| Humidity | 25%~95% |
| Linkage current | < 3mA |
| Control way | Synchronous with computer(display) |
| Refresh frequency | 1200Hz |
| Grey grade | 4096 grade |
| Life span | 100000 hours |
| Continuous failure-free working time | ≥10000hours |
| Communication media,control distance | Multimode optical fiber<500m,single mode fiber < 30km,cat 5 cable < 60m |
| IP Grade | IP43 |
| Software | LEDVISION |
| Input way | Computer and ancillary,PAL/NTSC/SECAM, S-Video;VGA;RGB;Composite Video;SDI etc. |
| Display content | Video DVD\VCD\TV,Image,Text,Animation and others |
| Protection | Damp proof\dust proof\anti-corrosion\static free\anti-thunder,with over current, short circuit, over voltage and short voltage function |
| Prod Model: |
Doubled Side LED Display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Encapsulation: |
DIP346 |
| Viewing Angle: |
140 |
| Brightness: |
7500nits |
| Driving Method: |
1/4 Duty |
| Working Environment: |
Outdoor |
| Cabinet Resolution: |
320X320mm |
| Screen Size: |
960X960mm |
| Fresh Frequency: |
600Hz-1500Hz |
| Gray Calibration: |
4096-65536 |
| Input Voltage: |
110-240V ±10% |
| Tube Chip Color: |
Full Color |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
10,000 dots / m² |
| Scanning Mode: |
1/4 Scan |
| Application: |
Shopping Guide |
| Certification: |
FCC |
| Display Function: |
Animation, Text, Video, Pictures |
| System Operating Platform: |
Win7,XP |
| IP Rating: |
IP65 |
