Shengzhen Mountain A-Li Group Electronic Technology Co., LTD.

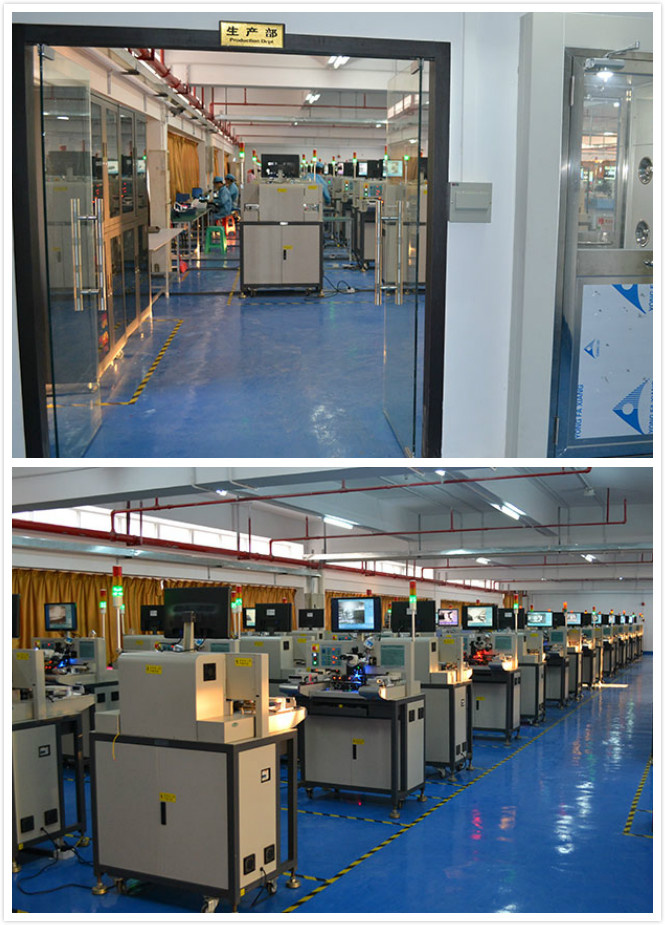

is a professional company manufacturing LED display system products for more than 10 years, established in 2000, covering a workshop area for 2000m2, with about 300 employees.
Reasons for Choosing us:
1. Competitive factory price
2. Best quality control and innovative technology
3. Customer first
Certificate

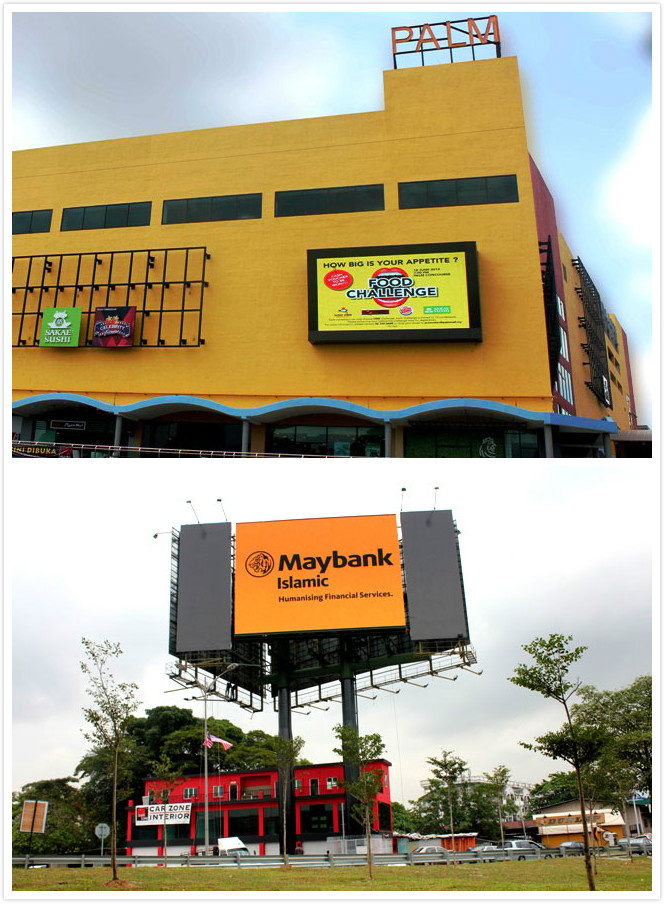

Project Cases
| The specifications of modules |
|
| Items | Parameter |
| Product Model | P13.33 Full Color Led Module |
| Module size | 320mm*160mm |
| Pixel pitch | 13.33mm |
| Pixel density | 5265dots/m2 |
| Pixel configuration | 1R1G1B |
| Module resolution | 24dots(W)*12dots |
| Module maximum power consumption | 22W |
| Module Thickness | 25CM |
| Module Weight | 0.8kg |
| Driving method | Constant Current Driving |
| Scanning method | 1/6 scan |
| Interface | HUB75 |
| Brightness | ≥5000cd/m2 |
| The specifications of cabinets |
|
| Cabinet size | 960mm*960mm |
| Module quantity | 18pcs |
| Power supply | 5V/40A 5V/60A |
| Cabinet resolution | 96*96dots |
| Optimal viewing distance | 15M~50M |
| Optimal viewing angle | 160°(W) 120°(H) |
| RHWorking temperature | (Work :-20°C~+60°C) |
| System operating humility | 10%-95% |
| The specifications of power supplier |
|
| Operating Voltage | AC220V±10% |
| Average power consumption | 350W/H |
| Maximum power consumption | ≤600W/m2 |
| Electric current | ≤20mA(single LED) |
| The specifications of control card |
| Control Panels | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization with PC |
| The specifications of the main technical parameters |
|
| Driving device | Constant Current Driving |
| Refresh rate | ≥600HZ |
| Grey scale | RGB Each 256, can display 16.7M colors) |
| MTBF | ≥9000hours |
| Power switch | Automatic Switch |
| Display Mode | 800*600/1024*768/1280*900 |
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
