Our Features:
1.High and adjustable LED brightness can meet the demands of the changing requirement of customer in different environments.
2. No mosaic display due to excellent flatness and nice uniformity of light-emitting
3.Wide viewing angle and the horizontal angle can reach 120°m. The images display effect will not Change largely in the range.
5. LED Single-lamp maintenance with low cost.
6. Good heat dissipation capability because of the unique design of vent fan.
7. Environmental-friendly and energy-saving.
Unit Module | Item | Parameter |

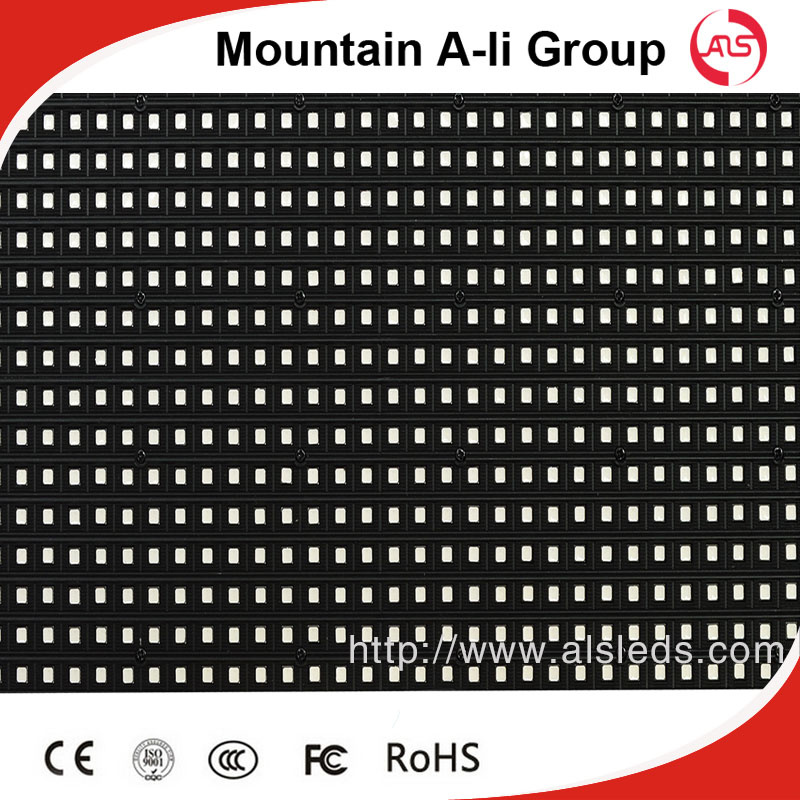

| Module | P10 Outdoor Surface Mounted Module |
| Module Size | 320mm*160mm |
| Pixel Pitch | 10mm |
| Pixel Density | 10000dots/m2 |
| Package mode | SMD3535 |
| Module Resolution | 32dots(W)*16dots(H) |
| Max Power Consumption | 20W |
| Module Thickness | 25mm |
| Module Weight | 0.5kg |
| Driving Method | Constant Current Driving |
| Scan Method | 1/4Scan |
| Interface Way | HUB75 |
| Brightness | ≥5000cd/m2 |
Cabinet Module | Cabinet Size | 960mm*960mm |
| Cabinet Composing | 18pcs |
| Power Supply Mode | 5V/40A 5V/60A |
| Cabinet Resolution | 96*96DOTS |
| Optional Viewing Distance | 10m-50m |
| Optional Viewing Angle | 160°(W) 120°(H) |
| Environment Temperature | Work :-20°C~+50°C |
| Relative Humidity | 10%-95% |
| Power | Operating Voltage | AC220V±10% |
| Average Power | 400W/H |
| Max Power Consumption | ≤600W/m2 |
| Current | ≤20mA |
Control System | Computer | Pentium4 or above P4 or above |
| Operate System | WIN98/2000/NT/XP |
| Control Mode | Synchronization with PC |
Main technical parameter | Driving Rate | IC Constant Current Driving |
| Refresh Rate | ≥600HZ |
| Gray/Color | RGB each 256 grade,can display 16.7M color |
| MTBF | ≥9000hours |
| Power Switch | Automatic Switch |
| Display Mode | 800*600/1024*768/1280*900 |
Why Choose US?
Professional wholesale and manufacturer of stage light
1. We have over 8 years' experience of stage light.
2. We specialize in High configuration and high quality products.
3.We have professional R&D team who has professional development ability.
4. Integrated research and development, design, production, sales and
service.
Every material using inside will be picked up carefully and be fully tested.
5. 100% manufacture, 1 year spare parts' guarantee time (except lamp & CMY) .
6. We are factory, we can offer better price than Trade Company.
Our Remarks
1.Payment term:
30% T/T in advance and balance before delivery.
2.Delivery time:
Within 15 working days after 30% advance payment.
3.Free training:
You can send your engineers who have knowledge of electronics and information to our factory and we provide free technical training, which contains training operation and maintenance of the LED display at our factory. We also offer the instruction manual, software, test report, drawing steel structure and so on.
4.Installation:
We offer you the engineer to install the LED display, you have to offer him the two-way air tickets and accommodation as well as visa. The engineer's salary is $80/day;or we offer you the training on the LED display installation and repairing for free after you live in our company, or we can guide you to install the screen by remote control.
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
6. We can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
