LED Flood lights /200W Flood light are our hot sell product and they are very popular in oversea market. Especially in EU, USA. Canada. Ocean

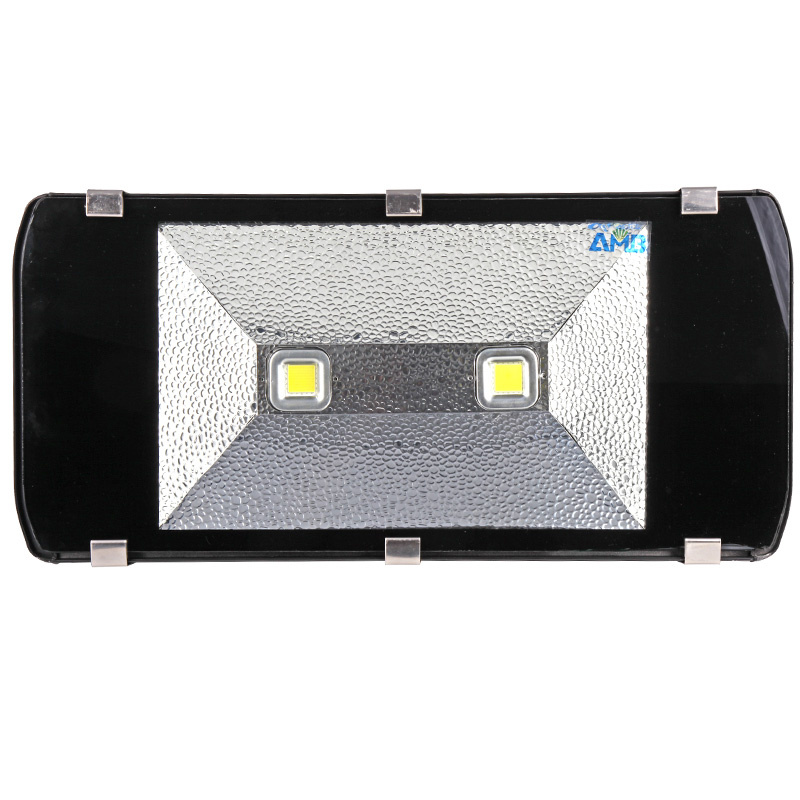

Advantages for AMB 200W LED Flood light
LED Flood lights (200W, 24, 000lm), 5years warranty time.
60mil top brightness Bridgelux chip 130lumen/w. Top quality in the world
Viewing Angle: 120 degree
Color: Warm white/ pure white/cold white
Luminous Flux: 12500Lm(warm white) lm13000( pure white) 13500lm(cool white)
Material: Aluminum+ copper+ LED
Thermal conductive corrosion proof aluminum radiator housing, aluminum reflector, installing case, clear glass cover, 60mil Bridgelux chip integrated encapsulated LED sources, wide voltage transformer.
Performance description (LED tunnel lights):
60mil Bridgelux chip integrated encapsulated high power LED ranges from 10 to 200W, which makes 120 to 130m/W with high lumens depreciation and good heat dissipation
Copper. Aluminum alloy die-cast baking varnish heat sink, clear tempered glass, ensures good heat dissipation, corrosion-proof, dust-proof, IP65 waterproof and shake-proof
Aluminum reflector designed after professional light distribution analysis, brings out good light effect
Being lighted up within three seconds with high CRI (color rendering index)75-88ra
Colors: Red, green, blue, yellow and white
Applications(LED tunnel lights):
This LED tunnel light can be used in a variety of indoor and outdoor places, such as in factories, stadiums, wharfs, advertisement boards, parks and tunnels.
This 200W LED floodlight (is our hot sell product and they are very popular in oversea market. Very outstanding for belows:
Our warranty time is 5 years: ( Bridgelux 60mil Chip. 130lumen/w )
Model No. AMB- 4E-200W
Equivalent 500W High Pressure Sodium Lamp
LED Light Source: 60mil Bridgelux chip 130lumen/w
LED Luminous Efficiency 110 lm/w
Lamp Total Power 250W
Power Efficiency > 95%
Lamp Rated Luminous Flux > 22000lm
Lamp Rated Luminous Efficiency > 98lm/W
Average lllumination and Effective Area 6M Height Diameter: 12m ≥ 320LUX (170 degree beam)
7M Height Diameter: 14m ≥ 270LUX (130 degree beam)
8M Height Diameter: 15m ≥ 220 LUX (90 degree beam)
Color Rendering Index(CRI) Ra>75
Color Temperature(Color Temperture) Cool white: 6000-6500K
Pure white: 5000-5500K
Warm white: 2700-3200K
Beam Angle 90 degrees or 130 degrees, 170 degrees
Light Distribution/Beam Pattern Round Beam
Input Voltage AC 95-305V; DC 30-36V
Frequency Range 47-63Hz
Power Factor(PF) > 0.95
Total Harmonic Distortion(THD) < 15%
Storage Temperature -40--+80
Working Environment -40--+50; 10%-95%RH
Junction Temperature(Tj) 60 ± 10%(ta=25)
Light Body and Lampshade Material Aluminum Alloy and Toughened glass
Working Lifetime > 80, 000hrs
IP Rating IP65
Material: Aluminum +copper+LED
If you are interested in our products, please don't hesitate to send us inquiry.
|
Model No. |
AMB-4E-200w |
|
Equivalent |
500W High Pressure Sodium Lamp |
|
LED Light Source |
4× 50W Bridgelux 60mil LED |
|
LED Luminous Efficiency |
130 lm/w |
|
Lamp Total Power |
200W |
|
Power Efficiency |
> 90% |
|
Lamp Rated Luminous Flux |
> 18, 000lm |
|
Lamp Rated Luminous Efficiency |
> 110lm/W |
|
Color Rendering Index(CRI) |
Ra> 75 |
|
Color Temperature(Color Temperature) |
Cool white: 6000-6500K |
|
Pure white: 5000-5500K |
|
Warm white: 2700-3200K |
|
Beam Angle |
60 degrees or 120 degrees or 150 degrees |
|
Light Distribution/Beam Pattern |
Round Beam |
|
Input Voltage |
AC 95-265V; DC 30-36V |
|
FrequencyRange |
50/60HZ |
|
Power Factor(PF) |
> 0.95 |
|
Total Harmonic Distortion(THD) |
< 15% |
|
Storage Temperature |
-40--+80 |
|
Working Environment |
-40--+50; 10%-95%RH |
|
Junction Temperature(Tj) |
60 ± 10%(ta=25) |
|
Light Body and Lampshade Material |
Aluminum Alloy and AL glass |
|
Working Lifetime |
> 80, 000hrs |
|
IP Rating |
IP65 |
SZAMB is professional smart LED high bay, Unique LED floodlight and New panel style LED tube manufacturer located in Shenzen, China
In 2005, SZAMB was founded and started Researching and Developing LED tube, LED high bay and LED floodlight,
In 2006. SZAMB put 80% energy, money to improve LED high bay series, after 9 months SZAMB LED high bay are upgraded to the top level in the world, we are the top LED high bay manufacturers. SZAMB offer 5years warranty time for LED high bay
In 2007, SZAMB cooperated with Japan Netled. Co. Jp to R&D Networked lighting system, which Optimizing the benefits of LED, NETLED allows granular control of long lasting and low power LED lighting down to the tube level through a cloud(Internet) system, By controlling illumination only when, where and to the degree needed, energy saving are optimized and lighting environment is improved
In 2008, SZAMB National dimmer LED tube set a food in the marketing. This dimmable LED tube range is from 0.2%-100%. Which was warm welcome by Canada, USA, EU distributors. Because it saved lots of money and energy for hotels. Airport. Office and commercial buildings
In 2009, SZAMB cooperated with Sweden energy. YB to R&D panel style LED tube, We know this new design LED tube will change all normal LED tube' S future, our Idea is LOF design (LED On Fixture),
Plug and play LED fixture with male and female connector and IP65 waterproof class advantages, SZAMB panel style LED tube is welcomed by for all high-level hotel, market, commercial building and outdoor garden, road project, SZAMB Saved electronic fee. Fixture fee, wireless fee and replacement fee for our customers
In 2010, SZAMB cooperated with Canada Wilcox Electric company to R&D green housing LED lighting, after 6moths testing by Columbia University, Yale university, it approved SZAMB 200W LED fixture is the best solution for fruit and vegetables growing
In 2011 SZAMB cooperated with Holland Lioris LED driver company. From 2011, SZAMB 9-40W LED tube with 50000hours warranty time set a foot in marketing, we are the only one factory can guarantee 50000hours for full tube because of the exceeding 0.99PF LED driver, , We do the testing in Germany, get TUV, VDE and CE report in Germany located testing lab, this driver tech is most 50 years progressive than other branch
In 2012, SZAMB netled WiFi control l LED tube, LED high bay finished the testing. NETLED lighting in one' S Personal Area can be controlled by iPhone, iPad or other smartphone (Android)
SZAMB cooperated with Japan Yashima company to R&D AC100-260V COB LED. Which is dimmable AC COB LED, no need driver. With this new technology, we will make more and more mini LED high power lighting. Save more money for our customers
We set up on the firm belief of offering the high quality, unique design, automatic functions and fully warranted LED tube and LED high bay to our customer at the most competitive price. We have a strong engineer team which composed of 15 individuals with perfect designers.
Our management system is strictly conducted according to ISO9001-2008, TUV, SGS standard. We always stay ahead of this field because of our talented creativeness, like Unique designed structure and attractive appearance, stable quality proved by TUV/CE/RoHS/FCC, ETL and UL certification. We have a great production group to ensure our production capability, professional LED tube SMT, Soldering machine and 102 people on the production line to make sure 30, 0000PCS of LED tubes and 100000PCS LED high bay output every month. LED technology is high efficiency, cost effective, energy efficient and environmental friendly. Our goal is to keep on researching and developing super LED tube and LED high bay, to offer a bright world. We will let the world know that "SZAMB change your light life ".
