T8/T10 LED Tube Light of High Efficient Energy-Saving (9W/18W/22W/28W 600mm-1500mm)
| Price: |
US $ 12.80-20.00/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

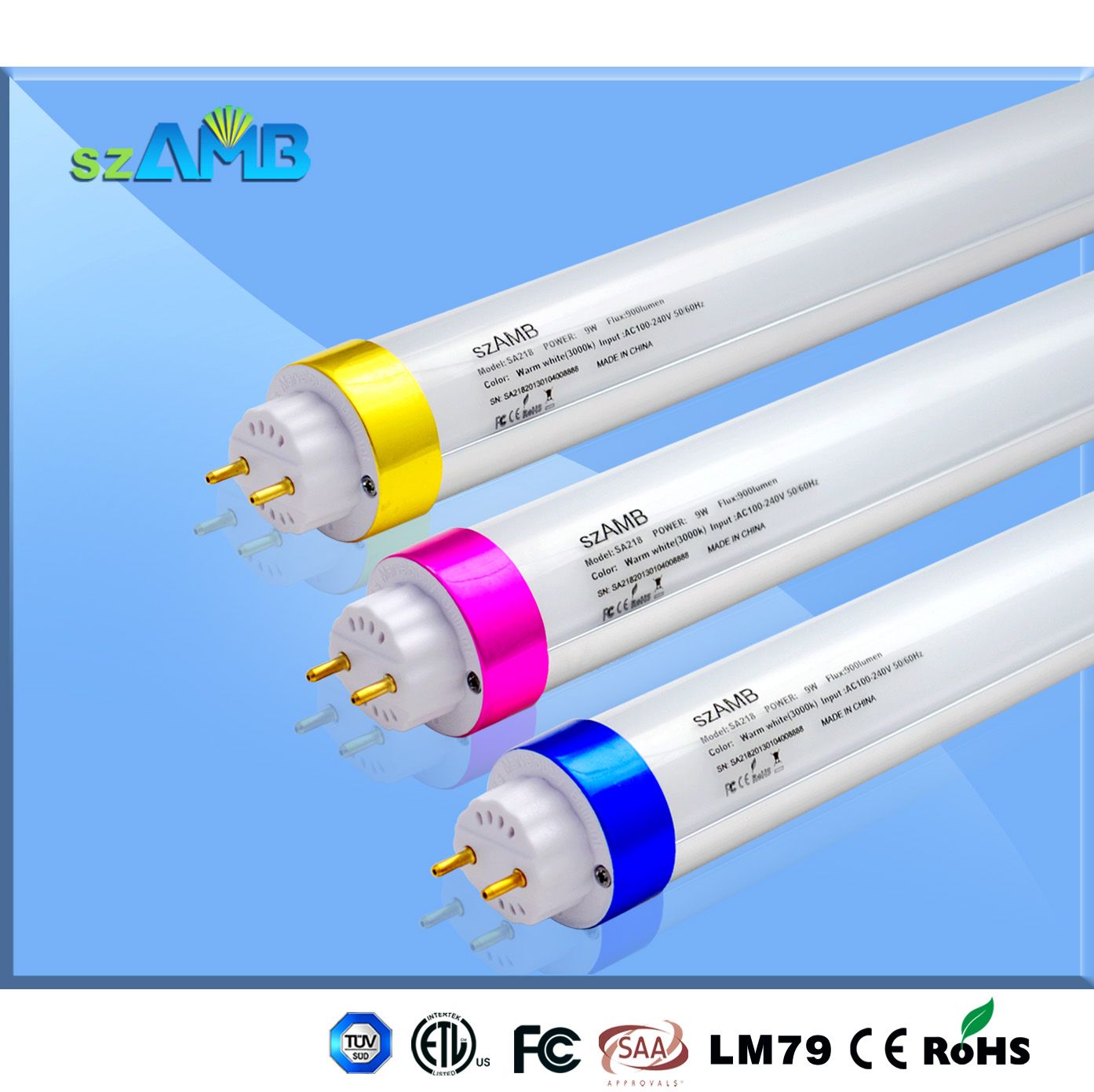

AMB T8/T10 9w/18w/22w/28w 600mm-1500mm LED Tube Light (SA Series)
AMB T8 LED Tube Light Specification:
Top quality Brand 3528 SMD LED, Taiwan Everlight (10*23mil with 8lumen/w
Protective current design 17Am and high efficiency 100-110lumen/w(20Am Everlight B5 LED )
Patented isolated LED driver with VDE ,TUV,UL.CE,RoHS ,50000hours life-span (-20 to 40degree)
Unique design for heat sink, making sure AMB led tube working temperature less than 40degree
Top LED + Super quality driver +technical protect function+ artistical design+ experienced staffs=3-5 years warranty time
High performance : PF>0.97 .THD<10% ,CRI>80ra .Beam Angle=132degree ,S/P ratio=19 . LUX(1M)-805 ,EU Energy label classification:A
Newest EU standard ,sigle-side power in ,100% safety
Application:
Instead of the indoors ceiling light
School/universities/hospital
Conference/meeting room, show room
Commercial complexes
Factories/offices
Supermarkets
Residential/institution buildings
......
AMB Warm Service:
1. Any of your enquiry about us or our products, you will get quick reply in detail within 24 hours
2. Our sales team are well-trained and passionate, no barriers in communication by English
3. We offer OEM&ODM service. You can have your own logo printed on products; Service include customizing the retail box packing and others
4. Distributorship is offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
OEM Service:
1. Select your favorite model in our list. If our models cannot meet your demand, please send us your ideal or draft design
2. Send us the logo and advise detailed requirements
3. Our FREE visual artwork for your proof
4. Await customer's confirmation
5. Full payment or 30% deposit of the order
6. Sample arrangement
7. Customer's confirmation confirmation on sample
8. Mass production
9. 70% balance payment before goods delivery
| Model | Length | Diammeter | Power | LED QTY | Colour Temperature | PC lens | Flux(lumen) | LUX(1M) |
| SA118 | 580mm | F26.0 | 9W | 144pcs | 2800K-3500K
4000K-5000K
4000K-5000K
7000K-8000K | Transparent | 1000 | 290 |
|
| Stripe | 1100 | 260 |
| Frost | 1200 | 230 |
| SA218 | 600mm | F26.0 | 9W | 144pcs | 2800K-3500K
4000K-5000K
4000K-5000K
7000K-8000K | Transparent | 1000 | 290 |
|
| Stripe | 1100 | 260 |
| Frost | 1200 | 230 |
| SA318 | 900mm | F26.0 | 13W | 216pcs | 2800K-3500K
4000K-5000K
4000K-5000K
7000K-8000K | Transparent | 1496 | 360 |
|
| Stripe | 1540 | 330 |
| Frost | 1600 | 300 |
| SA418 | 1200mm | F26.0 | 18W | 288pcs | 2800K-3500K
4000K-5000K
4000K-5000K
7000K-8000K | Transparent | 1928 | 470 |
|
| Stripe | 2090 | 450 |
| Frost | 2160 | 430 |
| SA518 | 1500mm | F26.0 | 22W | 359pcs | 2800K-3500K
4000K-5000K
4000K-5000K
7000K-8000K | Transparent | 2454 | 510 |
|
| Stripe | 2500 | 480 |
| Frost | 2670 | 450 |
| SA528 | 1500mm | F26.0 | 25W | 396pcs | 2800K-3500K
4000K-5000K
4000K-5000K
7000K-8000K | Transparent | 2876 | 530 |
|
| Stripe | 2900 | 500 |
| Frost | 2950 | 470 |
| SA538 | 1500mm | F26.0 | 28W | 480pcs | 2800K-3500K
4000K-5000K
4000K-5000K
7000K-8000K | Transparent | 3250 | 628 |
|
| Stripe | 3300 | 596
|
| Prod Model: |
SA418 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lighting Rate: |
100-110lumen/W |
| Flux: |
2030-2400lumens |
| Lux: |
558lux -620lux at 1meter |
| Shape: |
Straight |
| Lamp Holder/Base: |
G13 |
| Certification: |
LVD |
| Color Temperature: |
Nature White |
| LED Chips: |
Epistar |
| LED Type: |
SMD 3528 |
| Warranty: |
5 Years |
| Lifespan: |
≥50000H |
| Length: |
1.2m |
| Tube Type: |
T8 |
| Shade Material: |
PPS+Fire-Proof PC +Aluminum |
| Shell Type: |
Transparent/ Frosted/ Strip |
| Input Voltage: |
AC85-277V |
| Power: |
22W |
SZAMB is professional smart LED high bay, Unique LED floodlight and New panel style LED tube manufacturer located in Shenzen, China
In 2005, SZAMB was founded and started Researching and Developing LED tube, LED high bay and LED floodlight,
In 2006. SZAMB put 80% energy, money to improve LED high bay series, after 9 months SZAMB LED high bay are upgraded to the top level in the world, we are the top LED high bay manufacturers. SZAMB offer 5years warranty time for LED high bay
In 2007, SZAMB cooperated with Japan Netled. Co. Jp to R&D Networked lighting system, which Optimizing the benefits of LED, NETLED allows granular control of long lasting and low power LED lighting down to the tube level through a cloud(Internet) system, By controlling illumination only when, where and to the degree needed, energy saving are optimized and lighting environment is improved
In 2008, SZAMB National dimmer LED tube set a food in the marketing. This dimmable LED tube range is from 0.2%-100%. Which was warm welcome by Canada, USA, EU distributors. Because it saved lots of money and energy for hotels. Airport. Office and commercial buildings
In 2009, SZAMB cooperated with Sweden energy. YB to R&D panel style LED tube, We know this new design LED tube will change all normal LED tube' S future, our Idea is LOF design (LED On Fixture),
Plug and play LED fixture with male and female connector and IP65 waterproof class advantages, SZAMB panel style LED tube is welcomed by for all high-level hotel, market, commercial building and outdoor garden, road project, SZAMB Saved electronic fee. Fixture fee, wireless fee and replacement fee for our customers
In 2010, SZAMB cooperated with Canada Wilcox Electric company to R&D green housing LED lighting, after 6moths testing by Columbia University, Yale university, it approved SZAMB 200W LED fixture is the best solution for fruit and vegetables growing
In 2011 SZAMB cooperated with Holland Lioris LED driver company. From 2011, SZAMB 9-40W LED tube with 50000hours warranty time set a foot in marketing, we are the only one factory can guarantee 50000hours for full tube because of the exceeding 0.99PF LED driver, , We do the testing in Germany, get TUV, VDE and CE report in Germany located testing lab, this driver tech is most 50 years progressive than other branch
In 2012, SZAMB netled WiFi control l LED tube, LED high bay finished the testing. NETLED lighting in one' S Personal Area can be controlled by iPhone, iPad or other smartphone (Android)
SZAMB cooperated with Japan Yashima company to R&D AC100-260V COB LED. Which is dimmable AC COB LED, no need driver. With this new technology, we will make more and more mini LED high power lighting. Save more money for our customers
We set up on the firm belief of offering the high quality, unique design, automatic functions and fully warranted LED tube and LED high bay to our customer at the most competitive price. We have a strong engineer team which composed of 15 individuals with perfect designers.
Our management system is strictly conducted according to ISO9001-2008, TUV, SGS standard. We always stay ahead of this field because of our talented creativeness, like Unique designed structure and attractive appearance, stable quality proved by TUV/CE/RoHS/FCC, ETL and UL certification. We have a great production group to ensure our production capability, professional LED tube SMT, Soldering machine and 102 people on the production line to make sure 30, 0000PCS of LED tubes and 100000PCS LED high bay output every month. LED technology is high efficiency, cost effective, energy efficient and environmental friendly. Our goal is to keep on researching and developing super LED tube and LED high bay, to offer a bright world. We will let the world know that "SZAMB change your light life ".
