Product Description
P16 Outdoor full- Color LED display
.This Outdoor Full Color LED Screen's Key benefits:
1. P16 outdo full Color LED Display uses state-of-art LED, which has the
2. brightness for indoor and outdoor application.
3. The LED display has the advantage of excellent flatness, super
4. uniform color and brightness.
5. The LED Display has long viewing distance.
6. The outdoor LED display cabinet of the rental LED display use
7. aluminum which make the weight very light and easy to assemble.
8. Utra-high refresh rate, support the camera recorder, to ensure a clear
9. picture quality
10. Quick editing of assembly ,disassembly system, saving unloading time
Application :

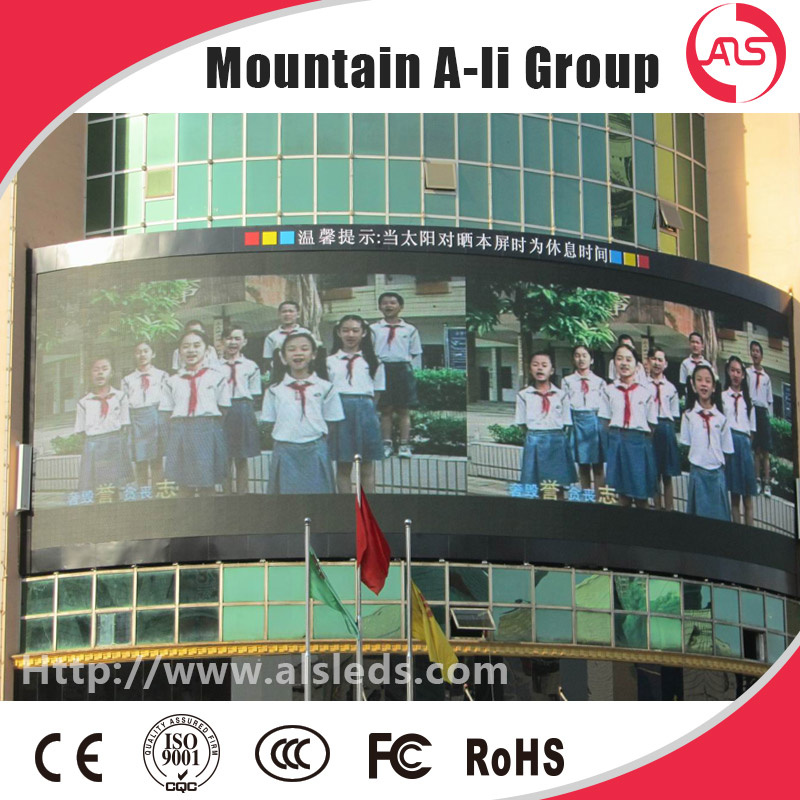

P16 full color Outdoor LED display could be used in outdoor
environment such as cultural or relax square, commercial walking
street, residential sub-district, downtown, banking, railway stations
the stock market and other trading market etc. Place, with the
speciality of dampproof, windproof, sunproof, staticproof,
antifreezing, waterproof, its purpose is to propagandize outdoor
advertising or play the important news or events or TV program,
enrich the resident's cultural life, advance the whole visualization of sub-district, etc.
Our services:
If you have any questions about our product, you can inform us by
mail or call, and we will reply you in 24 hours when we get you E-mail
or call, and offer you a good solution for your problem.
Parameter
| The specifications of modules |
|
|
| Items | Parameter |
|
| Product Model | P16 Outdoor Full Color LED Module |
|
| Module size | 256mm*256mm |
|
| Pixel pitch | 16mm |
|
| Pixel density | 3906dots/m2 |
|
| Pixel configuration | 1R1G1B |
|
| Module resolution | 16dots(W)*16dots |
|
| Module maximum power consumption | 35W |
|
| Module Thickness | 33CM |
|
| Module Weight | 1kg |
|
| Driving method | Constant Current Driving |
|
| Scanning method | Static scanning |
|
| Interface | HU40 |
|
| Brightness | ≥7500cd/m2 |
|
| The specifications of cabinets |
|
|
| Cabinet size | 1024mm*1024mm |
|
| Module quantity | 16pcs |
|
| Power supply | 5V/40A 5V/60A |
|
| Cabinet resolution | 64*64dots |
|
| Optimal viewing distance | 10M~50M |
|
| Optimal viewing angle | 160°(W) 120°(H) |
|
| RHWorking temperature | (Work :-20°C~+60°C) |
|
| System operating humility | 10%-95% |
|
| The specifications of power supplier |
|
|
| Operating Voltage | AC220V±10% |
|
| Average power consumption | 350W/H |
|
| Maximum power consumption | ≤800W/m2 |
|
| Electric current | ≤20mA(single LED) |
|
| The specifications of control card |
|
| Control Panels | Pentium4 or above |
|
| Operating system | WIN98/2000/NT/XP |
|
| Control model | Synchronization with PC |
|
| The specifications of the main technical parameters |
|
|
| Driving device | Constant Current Driving |
|
| Refresh rate | ≥600HZ |
|
| Grey scale | RGB Each 256, can display 16.7M colors) |
|
| MTBF | ≥9000hours |
|
| Power switch | Automatic Switch |
|
| Display Mode | 800*600/1024*768/1280*900 |
|
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
