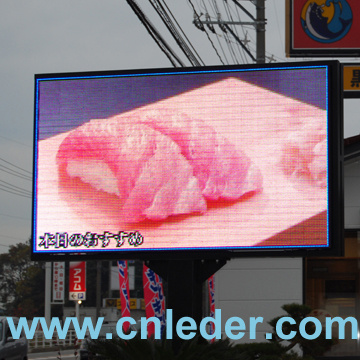

Outdoor Large LED Screen Displays P14:
1. Hight brightness up to 7000 nit
2. Wide viewing angles
3. Water-Proof function
4. Low power consumption
5. Suitable for ourtdoor advertising purpose.
6. Information source can be camera, video, VCD, DVD, LD, TV and so on.
Parameter Data Unit
Brightness >7000 nit
Colour temperature 6500 K
Viewing angle-H 120(+60/-60) deg.
Viewing angle-V 60(+30/-30) deg.
Cabinet weight 50 kg
Cabinet size (W× H× D) 896× 672× 150 mm
Cabinet area 0.6021 S. Q. M
Cabinet material Steel _
Ingress protection (Front/Rear) IP65/IP21 _
Operating temperature -20~+50 C
Operating humidity 10%~90% _
Pixel configuration 1, 1, 1 R, G, B
Pixel pitch 14 mm
Module size 224× 112 mm
Pixel matrix per module 16× 16 mm
Pixel matrix per cabinet 64× 48 DOT
Pixels per cabinet 3072 DOT
Pixels per sq. M. 5102 DOT
Best viewing distance 12~100 m
Gray scale 68.72 trillion
Brightness control 256 level
Refresh frequency >400 Hz
Driving mode Static constant current driving _
Input Voltage 110~240 V
Input power frequency 50~60 Hz
Outdoor Large LED Screen Displays P14:
Power consumption per sq. M. (max/avg) 1000/600 W
Blind spot rate <1/10000 _
Lifetime at 50% brightness 100000 hour
Red wavelength (Typical) 623 nm
Green wavelength (Typical) 525 nm
Blue wavelength (Typical) 470 nm
Signal input format
(with video processor) AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI _
Operating system Windows (2000/XP/Vista/7) _
Control distance Cat 5 cable<100m
Single Fiber<10km _
Shenzhen Leder Electronics Co., Ltd. Locates in E Building, the new world of Science and Technology Industrial Park, XiaShiJia, Gongming Street Guangming New Area, ShenZhen, Guangdong, China. LEDER is the high & new technology enterprise specializing in the Research & Development of LED displaying products, production, sales, engineering service, etc.
Based on more than 10 years of outstanding development, LEDER becomes one of the most advanced LED display manufacturers in China and also one of the biggest professional LED display manufacturers in Southern China.
With modern workshop for electronic processing, assembling, adjusting and aging, LEDER ensures the production capability of 20000 m2 LED display for all types yearly, and is able to provide one package service for our clients from consultant, production, installation, adjustment & test, training to after service.
LEDER positively practices the environmental protection and energy saving. In 2008, LEDER firstly launched OUTDOOR SMD (5050, 5060) 3IN1 FULL COLOR LED DISPLAY. Solved 3 difficult problems on outdoor SMD LED Displays successfully - brightness, heat extraction and water proofing, and made-up deficiencies of the traditional LED Display of small viewing angle, module's nonuniform color, large power consumption, overweight, and so on. In 2009, LEDER brought out LED lighting products: Flexible LED video strip, LED flexible strip, LED video pels light, LED module^^, which attracts batches eyes and gains very good comment from experts and audients.
Since the foundation, LEDER has been insisting the tenet of "Build first-class brand, win with superior quality and service", and has actively conducted the ISO 9001 system, its products have been awarded certificates such as CE, RoHS. Besides owning a few of independent core technology and patents, LEDER firstly built up the enterprise standard, which effectively promotes the healthy development of Chinese LED display industry. Successively, LEDER undertakes batches of high quality projects in domestic and oversea. Now LEDER has jumped to be the biggest professional LED display manufacturer in ShenZhen, and has set up its leading position in optoelectronic industry, and to be as sponsors at the 16th Asian Games.
LEDER's General Manager has been directly working on the management of R&D, production, engineering, and after-service for more than 15 years. He has experienced the stage of starting, developing and maturing of China's LED Display industry. He would like to cooperate with all customers, leading all of LEDER staffs, to witness the prosperity of LEDER and LED Display industry together.
"Share our successful happiness with our clients" is the business concept we always keep. With your continuing care and support, we, together enter to LED products' energy saving, colorful, and bright future.
