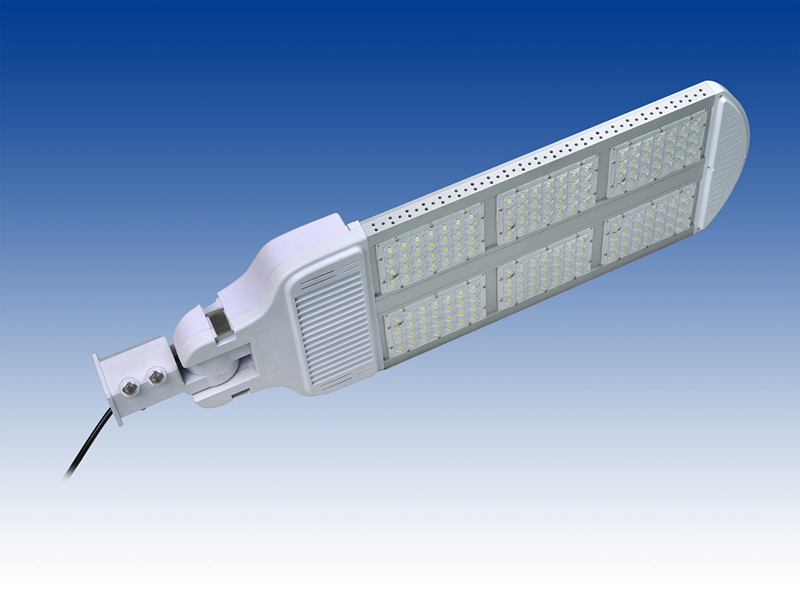

LED highway light
Specifications
Item: CH-L9W168
(Details as the chart listed)
Features of LED highway light
Unique design of thermal-diaaipation, patent
With unique optical lens, more efficient light-emitting
Intelligent temperature controller for power, longer life.
Meet CE, RoHS requirements
Applications of LED highway light
This LED highway light can be applied to the highway, expressway, mainroad, sub-roads, the sliproads and residential areas with sidewalks and the plaza-lighting, stadium lighting and so on
led highway light Model NO. |
CH-L1W028 |
CH-L7W056 |
CH-L8W112 |
CH-L9W168 |
Input voltage |
AC 85~265V |
Frequency |
47~63Hz |
Power Factor(PF) |
> 0.9 |
Total harmonic Distortion(THD) |
< 20% |
Power efficiency |
85% |
Working voltage |
DC 46V |
LED power dissipation |
28W |
56W |
112W |
168W |
Electric dissipation |
7W |
10W |
20W |
30W |
LED luminescence efficiency |
≥ 85Lm/W |
≥ 85Lm/W |
≥ 85Lm/W |
≥ 85Lm/W |
luminous lux |
2160Lm(Tj=25) |
5300Lm(Tj=25) |
10600Lm(Tj=25) |
15000Lm(Tj=25) |
Lights efficiency |
≥ 90% |
≥ 90% |
≥ 90% |
≥ 90% |
Illuminance On the ground(E) |
H=6m |
≥ 14Lux
≥ 8Lux
≥ 5Lux
≥ 3Lux |
≥ 27Lux
≥ 16Lux
≥ 10Lux
≥ 7Lux |
≥ 54Lux
≥ 31Lux
≥ 19Lux
≥ 14Lux |
≥ 81Lux
≥ 46Lux
≥ 29Lux
≥ 21Lux |
H=8m |
H=10m |
H=12m |
Effective Irradiation area |
H =6m |
20*8m
26*10m
33*13m
40*16m |
H =8m |
H=10m |
H=12m |
CCT |
Pure white: 5000-6500K; Warm white: 3500-4500K |
Color radiation index(CRI) |
Ra> 75 |
The strongest lighting angle |
Horizontal axis: 120° ~140° ; Vertical: 45° ~60° |
LED Temperature |
70º C± 10%(Ta=25) |
Working temperature |
-30~50º C |
Working humidity |
10%~90%RH |
Stock temperature |
10~85 |
Match ray curve/Facula |
Unsymmetry(bat wing shape)/rectangle facula |
Life span |
> 50.000Hrs |
Lamp chimney |
Aluminum alloy and PC |
N. W. |
1.2kg |
7.85kg |
10.9kg |
13.8kg |
Package size |
665*335*425mm |
694*392*172mm |
872*392*172mm |
1050*392*172mm |
IP Degree |
IP54 |
IP56 |
Qty |
6pcs/CTN |
1pcs/CTN |
Shenzhen Cohon Lighting Co., Ltd. is a high-tech manufactory which is mainly engaged in technical research, production and service of LED semiconductor illumination. with an area of 5000 square meters, our company is equipped with numerous of advanced experimentation equipment and full automatic production pipeline of LED devices.
We have a very excellent design and R& D group who are professional in the field of LED application, external appearance, structure, illumination and drive electric source. Our company has employed doctors of Chinese Academy of Science as technology consultant. We have acquired many patents already, and now, more than ten products are under application for patents by our R& D hard working.
Our products include LED street light, LED headlights, LED miner's lamps, high power LED spotlights, LED emergency lights, LED floodlights, LED underwater lights and series of high-power LED commercial semiconductor lights. Besides, we also have developed capability of supply some special standard LED lighting products. And our products have passed the CE, UL and RoHS.
Our products have been exported to all over the world and they are welcomed by our customers, especially the series of 1W power LED miner's headlight has occupied more than 50% market in China. We will try our best to contribute all strength for the global green lighting and put more and better green semiconductor lighting products to the market.
