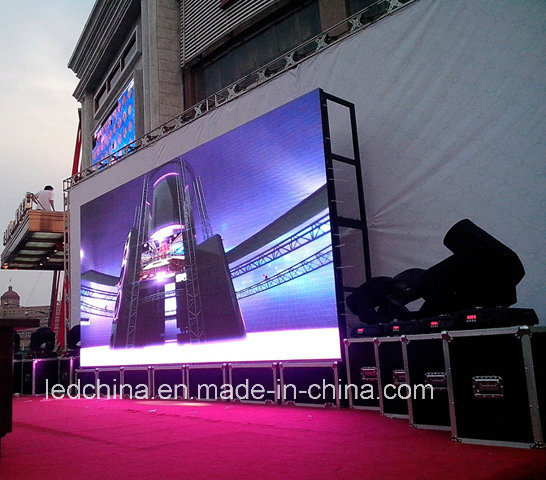

Outdoor High Definition Waterproof Stage LED Video Display
Features:
1. Ultrathin and lightweight: Each cabinet weighs only 8kg, easy to install and transport.
2. Noiseless: Die-casting Aluminum cabinets, fanless design with noiseless power supply.
3. Seamless: High precision CNC machining, precision up to 0.1mm
4. Fast Installation and disassembling: connection lock between cabinets are patented, closely combined, safe, reliable and adjustable, 50 cabinets can be installed in one hour.
5.High refresh rate, high gray level: It can reach 16bit by using PWM driving IC, refresh rate is more than 1000HZ, the gray level is still high even under the condition of low brightness.
| Outdoor High Definition Waterproof Stage LED Video Display |
| S/N | Item | Technical Parameters |
| LED Parameters |
| 1 | Item Name | LED Type | Brightness | Wave Length | H/V Visual Angle |
| 2 | Red LED | SMD3535 | 600-800mcd | 620-625nm | 140º/70º |
| 3 | Green LED | SMD3535 | 1800-2000mcd | 520-525nm | 140º/70º |
| 4 | Blue LED | SMD3535 | 400-600mcd | 470-475nm | 140º/70º |
| Module Specifications |
| 1 | Pixel Pitch | 6mm |
| 2 | Pixel Configuration | SMD3in1 |
| 3 | Module Resolution | 32 x 32 pixels |
| 4 | Module Pixles | 1024 pixels |
| 5 | Module Size | 192mm X 192mm |
| Cabinet Specifications |
| 1 | Cabinet Size(W X H X D) | 576mm x 576mm x 85mm |
| 2 | Cabinet Resolution(dot) | 96 x 96 pixels |
| 3 | Module Quanity (pcs) | 9pcs |
| 4 | Cabinet Pixels | 9216 pixels |
| 5 | Pixel Density | 27777 pixels/m2 |
| 6 | Cabinet Materials | Aluminum Die Casting |
| Whole Screen Specifications |
| 1 | Screen Brightness | ≥7000cd/m2 |
| 2 | Driving Method | 1/8 scan |
| 3 | Mini Viewing Distance | 6m |
| 4 | Max. Power Consumption | 1000W/m2 |
| 5 | Average Power Consumption | 400W/m2 |
| 6 | Gray Level | 8bits input, 4096 levels(212) |
| 7 | Display Color | 16M |
| 8 | Frame Frequency | ≥60Hz |
| 9 | Refresh Frequency | ≥1000Hz |
| 10 | Uninterrupted Working Hours | ≥72 hours |
| 11 | Screen Life-span | ≥100,000 hours |
| 12 | MTBF | ≥5,000 hours |
| 13 | Discrete Blind Spot Rate | <1/10000 |
| 14 | Continuous Blind Spot Rate | None |
| 15 | Blind Spot Rate | <1/10000 |
| 16 | Protective Scale | IP65 front IP54 rear |
| 17 | Screen Plainness | <±1mm |
| 18 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
| 19 | Environment Temperature & Humidity | Temperature:-20 Celsius~+60 Celsius
Humidity:10%~90% RH |
| 20 | Control Mode | Synchronous display with control PC by DVI |
| 21 | Control System | DVI video card + full color control card + fiber system( optional) |
| 22 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
| 23 | Interface | Standard Ethernet |
| 24 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m |
Shenzhen Seny Technology Co., Ltd. is a professional manufacturer of LED display screens, located in Shenzhen of China, found in 2009.
We specializes in all types of LED display screens, including indoor and outdoor, mono color, bi-color, RGB full-color LED displays. As one of the professional LED Displays manufacturers in China, we combine design, production, technical support, marketing, installation and after-sales service together so as to meet the demands of market, make every client satisfied.
Our LED displays have been widely used in a variety of sites like railway station, bank, hospital, office building, outdoor advertising board, airport, post office, plaza and so on. They play an important role for enterprises' Spreading and service convenience, and become more and more popular in every corner of the world.
Wishing we can build up long-term and reliable business relationship in near future. Contact us today for more information!
