Product Description

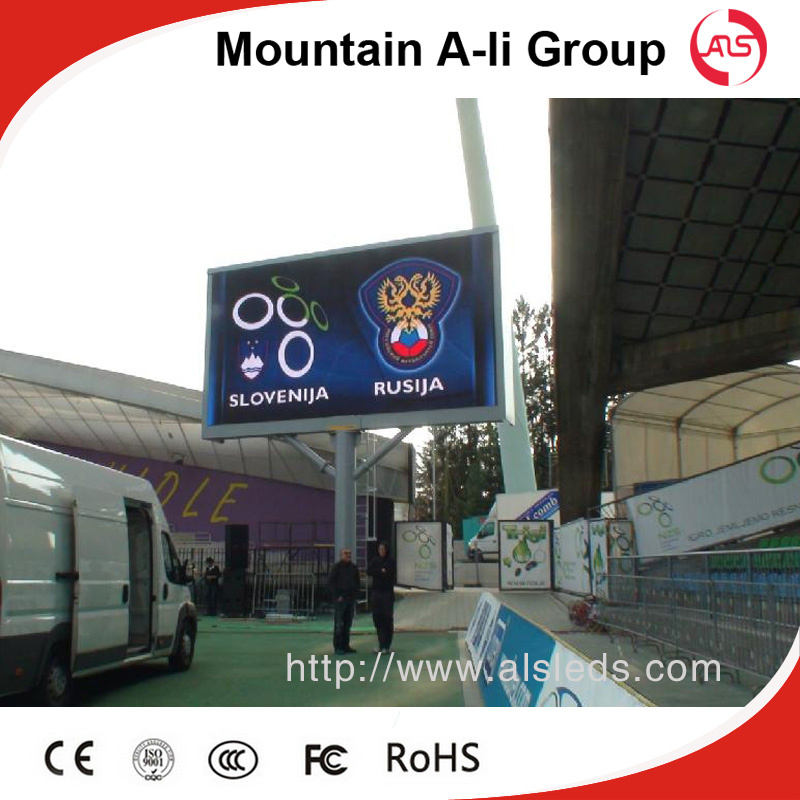

P10 HD Outdoor Full Color Led Display
Product Features :
1.Ultra-high-definition display, high-precision seamless.
2.The new structure designed to meet the lifting, stacking requirements, to meet the requirements for
indoor and indoor.
3.Ultra-high refresh rate, support the camera recorder, to ensure a clear picture quality.
4.Quick editing of assembly, disassembly system, saving unloading time.
Specifications
The specifications of modules |
|
|
Items | Parameters |
|
Product Model | P10 Full Color Led Module |
|
Module size | 160mm*160mm |
|
Pixel pitch | 10mm |
|
Pixel density | 10000dots/m2 |
|
Pixel configuration | 1R1G1B |
|
Module resolution | 16dots(W)*16dots |
|
Module maximum power consumption | 20W |
|
Module Thickness | 25MM |
|
Module Weight | 0.5kg |
|
Driving method | Constant Current Driving |
|
Scanning method | 1/4 scan |
|
Interface | HUB75 |
|
Brightness | ≥7500cd/m2 |
|
The specifications of cabinets |
|
|
Cabinet size | 960mm*960mm |
|
Module quantity | 36pcs |
|
Power supply | 5V/40A 5V/60A |
|
Cabinet resolution | 96*96dots |
|
Optimal viewing distance | 10M~50M |
|
Optimal viewing angle | 160°(W) 120°(H) |
|
RHWorking temperature | (Work :-20°C~+60°C) |
|
System operating humility | 10%-95% |
|
The specifications of power supplier |
|
|
Operating Voltage | AC220V±10% |
|
Average power consumption | 350W/H |
|
Maximum power consumption | ≤700W/m2 |
|
Electric current | ≤20mA(single LED) |
|
The specifications of control card |
|
Control Panels | Pentium4 or above |
|
Operating system | WIN98/2000/NT/XP |
|
Control model | Synchronization with PC |
|
The specifications of the main technical parameters |
|
|
Driving device | Constant Current Driving |
|
Refresh rate | ≥600HZ |
|
Grey scale | RGB Each 256, can display 16.7M colors) |
|
MTBF | ≥9000hours |
|
Power switch | Automatic Switch |
|
Display Mode | 800*600/1024*768/1280*900 |
|
Why choosed us:
1.Price Advantage: No.1 cost effective
2.Quality advantage: serious QC control system , best material
3.Service advantage: after service dept& Tech Dept. Perfect after sales system
Trade Terms:
1.Packing: Anti-shaking wooden cabinet /Air flight case/carton
2.Shipping port: Shenzhen. China
3.Shipping freights are quoted according to your requests
4.Delivery time:5-15 working days
5.2 years warranty ,lifelong maintaining. In the Maintenance period, free of all maintenance charges.
After Maintenance period, only charge the material costs fees.
Our services:
1.Your inquiry about our products or the price will be replied within 24 hours!
2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
