Function and Technology Character
(1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
(2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.
(3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
(4) Line-Double technology is adopted for the picture adjustment.
(5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.

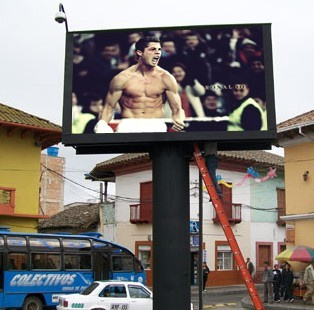

(6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.
Display and control feature |
Structure feature |
Specification |
Parameter |
Specification |
Parameter |
Pixel Pitch |
25 mm |
Module size |
200 mm*200 mm |
Pixel composing |
2R1G1B |
Display resolution/module |
8 dots*8 dots |
Wavelength (R) |
625±5 |
Standard cabinet size |
1000 mm*1000 mm |
Wavelength (G) |
522±3 |
Weight per sqm |
65 Kg/sqm |
Wavelength (B) |
567±3 |
Protection classification |
IP65 |
Wave Angle (H) |
140°(H)/ 60° |
Install mode |
Wallmount, hung and stand structure |
LED package |
DIP546 |
Cabinet Material |
Iron/Aluminum |
Density per sqm |
1600 pixel |
Working power |
Display color |
256*256*256 |
Specification |
Parameter |
Whiteness brightness |
≥5000cd |
Working voltage |
AC 220v/380v±10% 47~64Hz |
Brightness level |
128 grade |
Max power/sqm |
650W/sqm |
Changing frame frequency |
60 Hz |
Average power/sqm |
400W/sqm |
Refresh |
400 Hz |
Short circuit protection |
Yes |
Driving method |
Constant Static |
Led Lamp type |
Nichia/Cotco/Cree/Axt/Silan/Taiwan |
Control mode |
synchronous |
Working environment |
Display port |
DVI |
Specification |
Parameter |
Display mode |
1024*768 /1024*1024 |
Environment |
Outdoor |
Out of control |
1/10,000 ( scattered) |
Working temperature |
--20~50 |
lifetime |
100,000 hours |
Working Humidity |
10~90% |
Shanghai Harse Electromechanical Technic Co., Ltd., located Shanghai, focus on providing LED & Advertising products for more than 6 years. As a professional and experienced company, relying on our efficient managing & marketing team, strong technique support and experienced designers, it has completed many big LED projects at home and abroad during these time.
"To emphasize communication, mutual win-win, business integrity, " we always implement the policy. Relying on manufacturing base of Shanghai, Zhejiang & Guangdong area, we are always committed to offering best cost efficient products with better quality.
Main business:
1. Full color LED display, outdoor LED sign, indoor LED screen, Advertising LED billboard. Providing project design and installation, turn-key project.
2. Scrolling light box, verticl light box and wall-mounted scrolling light box.
3. High power LED lamp, LED high bay light, with chips of Phlips, OSRAM, CREE, BRIDEGLUX.
Welcome to our Showroom and My Products for more detailed offer info.
