Detail specification Parameters | Outdoor Die-casting LED Display Series ( 640 MM X 640MM ) |
Pixel Pitch (mm) | 6.67mm | 8mm | 10mm |
Pixel density(pix/m2) | 22545 | 15625 | 10000 |
LED Type | 3535 | 3535 | 3535 |
Viewing Angle | X,Y140° | X,Y140° | X,Y140° |
Brightness(nits) | ≥5000 | ≥5000 | ≥5000 |
Drive Method | 1/6 | 1/5 | 1/2 |
Color Depth | 65536 |
Refresh Rate(Hz) | 1920 | 1920 | 1920 |
Module Size (mm) | 320×160×16 |
Cabinet Size(mm) | 640×640×80 |
Cabinet Material | aluminum |
Cabinet weight(kg) | 12 | 17 | 17 |
Voltage | 200-240V |
Average.power(W/m2) | 230 | 230 | 230 |
Max.power (W/m2) | 700 | 700 | 700 |
IP Grade | IP65/IP54 |
Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH |
Storage temperature/ humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH |
Lifetime(h) | ≥50000 |
Compliant Standard | CCC(CE)Rosh |
Feature :P65 and Seamless Connection ,New design, suitable for outdoor live show, brightness adjustable facing the sunshine directly, waterproof IP65. neither flick nor color blocks.

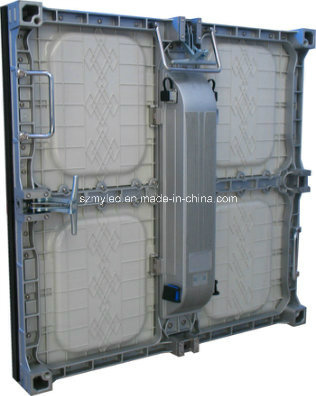

Die casting aluminum cabinet size 640mm*640mm, seamless connection, 0.1mm gapline between 2 cabinets.
Quick and Easy Installation in 5 Seconds ,Fast lock for quick and easy installation.
Maximum support 50pcs hanging in a collum
Located in Baoan District, Shenzhen Myled Optech is an professional LED display manufacturer which is dedicated to LED display R&D; Production, sales, marketing and one stop solution for customers mainland and international. Myled provides consulting, installation, training and sales services for customers. We always regard customers as the company life line.
Shenzhen Myled Optech focus on indoor and outdoor full color LED display, LED curtain display, mesh, indoor and outdoor single and bicolor LED display manufacturing. We have established business relationship with customers in South America, Euro, and Asia etc. And win a good reputation among customers all over the world. And we provide full solution for Government, Telecom, Hotel, airport, bus station, stadium, and cinema and financial center, etc. Over the past years, we have finished some important LED display project for South American and China Mainland.
Quality is the most important theme for Myled and welcome to contact, and visit our company.
We hold the truth that better quality, better price and better sales services are our company culture.
