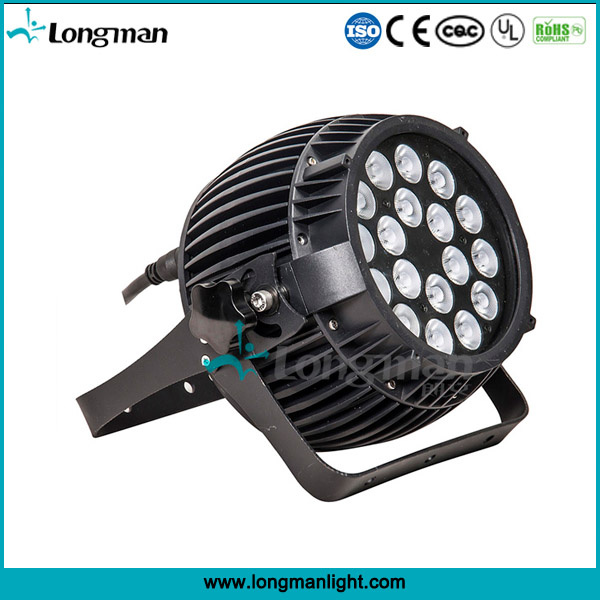

outdoor dmx rohs 18*10w rgbw high power par spot light led
Features:
1. Outputs almost 6750 Lumens full on, narrow beam suitable for stage, studio room, architeture.
2. Field angle (10% intensity) 43 degree standard, mix good color.
3. Patent new lamp body, Amitaion of pumkin design, apears nature and sincere.
4. Whole lamp body fully used as heat sink, support heatsink 120W at 35º C rise, built-in protection lower output intensity from full to 70%-80%.
5. Touch LED display, no easy broken buttons, 2minutes no operation no display
6. LED Display board shows DMX signal, offer Dimming curve squarelaw Dim4
7. With waterproof air valve to balance pressure, get rid of mosuisture on glass innerface.
spot light led from China professional spot light led manufacturer.
If you have specific parameters and requirements for our spot light led, customization is available.
FAQ:
1. Are you a factory or trading company?
Yes, We are a factory.
2. Where is your factory located? How can I visit there?
Our factory address is :
No.2 XiaheRoad, Baiyun Industrial Area , Jianggao Town, Baiyu District, Guangzhou, China ,about 30 minutes away from Bai yun Airport by metro.
All our clients, no matter where you are from, all are most welcome to visit us !
3. Which products we have?
We produce different kinds of LED Light.
Our product:
A. LED Moving Spot and Wash Light;
B. Studio Light;
C. Indoor Parcan Light;
D. Professional Wash Light;
E. Audience and DJ Light;
F. Outdoor Parcan Light;
G. Outdoor Washer Light;
H. Black Light;
J. Control System;
K. Dramatic architectural and landscape lighting.
4. How to get the latest price?
If you want the latest price, Please Email or call us with the items names or NO. What are you interested in,
Together with your details(name, details address, telephone, etc), we will send to you as soon as possible.
5. Does the products have any certificate?
Yes, our products have CE, ROHS, UL, CCC and SGS certificate.
6. What's the Payment method?
All methods can be discussed.
7. How to Place an order?
Please kindly send us you order by email, we will confirm the PI with you. We wish to know the below: Delivery
Information, company name, address details, phone/fax number, destination, transportation way; Product
Information: Item number, size, quantity, logo, etc.
| Specifications |
1. Power input: AC 100-240VAC, 47-63 Hz, Output: 24V DC, Power Factor> 0.7
2. Rated Power: 150W, Typical Consumption 138W@220V
3. Light Source: 10W 4-in-1 FULL RGBW 18 PCS. LED. Drive current for each Chip: 0.7A
4. Total Light Output 5760Lumens, Luminaire Efficiency 49lm/W
5. Peak Intensity: 38630Cd(43Degree Field Angle)
6. LED Color: R=625nm, G=525nm, B=465nm, A=590nm, White=6000K
7. Color rendering Index: Ra> 90, R9> 50
8. Color mixing index: Standard deviation of Chromaticity SDC< 0.005
9. Control signal: Meet E1.11 - 2004 USITT DMX512-A, 32 bit precise dimming, smooth in low DMX Value dimming, no vision shock
10. Channels: 3CH, 4CH, 5CH, 8CH, 9CH
11. Display: Touch operation, LED display show DMX situation and aotu turn off when no operation
12. Dimming: with Dim0-Dim4 5 dimming curve, smooth dimming
13. PWM frequency: > 600Hz, Flash Rate Endurance Full Load: > 12Hz Full load/void load flash
14. Beam Angles Optional: 25° , 62° Etc.
15. Housing material: Die cast aluminum, Protection Rated IP65
16. Cooling Method: Neutral Heasink, Thermal protection: NTC overheat protection
17. Connectors and Cables: IP67 Male/Female for fixed application IP65 Blue/Yellow connetor without cables for rental
18. Accessories: Barndoor, Hook, Safty Cable, Signal Extesion Cable, Power Extesion Cable
19. Housing color: Standard Matte Black, could customized Pumkin color.
20. Soldering technology: 180º CReflow Soldering, makesure 15000 hours Longevity for SMPS and mainboard
21. Size: L*W*H=270*166*284mm
22. Weight: 5.2 Kg, with double yoke.
23. Operating temperature: -20º C - +55º C
24. Cerficated: CE, Rohs
|
