| Price: | US $ 40/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 4/Piece |
| Pay Type: | T/T |

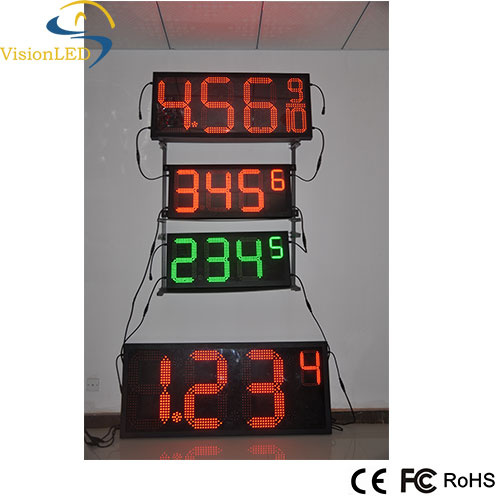

LED Digit Tube is widely used to display gas price, countdown, clock, date, temperature, humidity. We design special control system according to different functions. And we also can design it according to customer's needs. The advantage is high brightness, water-proof, working stable, long lifespan, easy to install, low power consumption, and friendly environment.
The module of LED Digital Display spec
Parameters | Digital display parameters |
Digit Size(contain edge) | 33cm(height)×24cm(width) ×4cm(thickness) |
Digit Display Size | 12 inch |
Digit weight | 1.2kg/pc |
Function | Can display date time temperature and etc numerals |
Control mode | Software Control |
Color | Red, pure green, blue, yellow and white optional |
Input | DC +5V |
Max power | 13W |
Voltage | 220V (as per customers'requirement) |
Display angle | ±100° |
Warranty | 1 year |
Usage | Outdoor (High quality of waterproof) |
Product Description
*Can display time, date and temperature etc
*GPS controlled clock
*1 year warranty
*FCC confirm
*Temperature measuring range is -15 degree to 65 degree
*Humidity measuring range is 15~90%RH
*Accurate to decimal point
LED Digital Display Software Spec

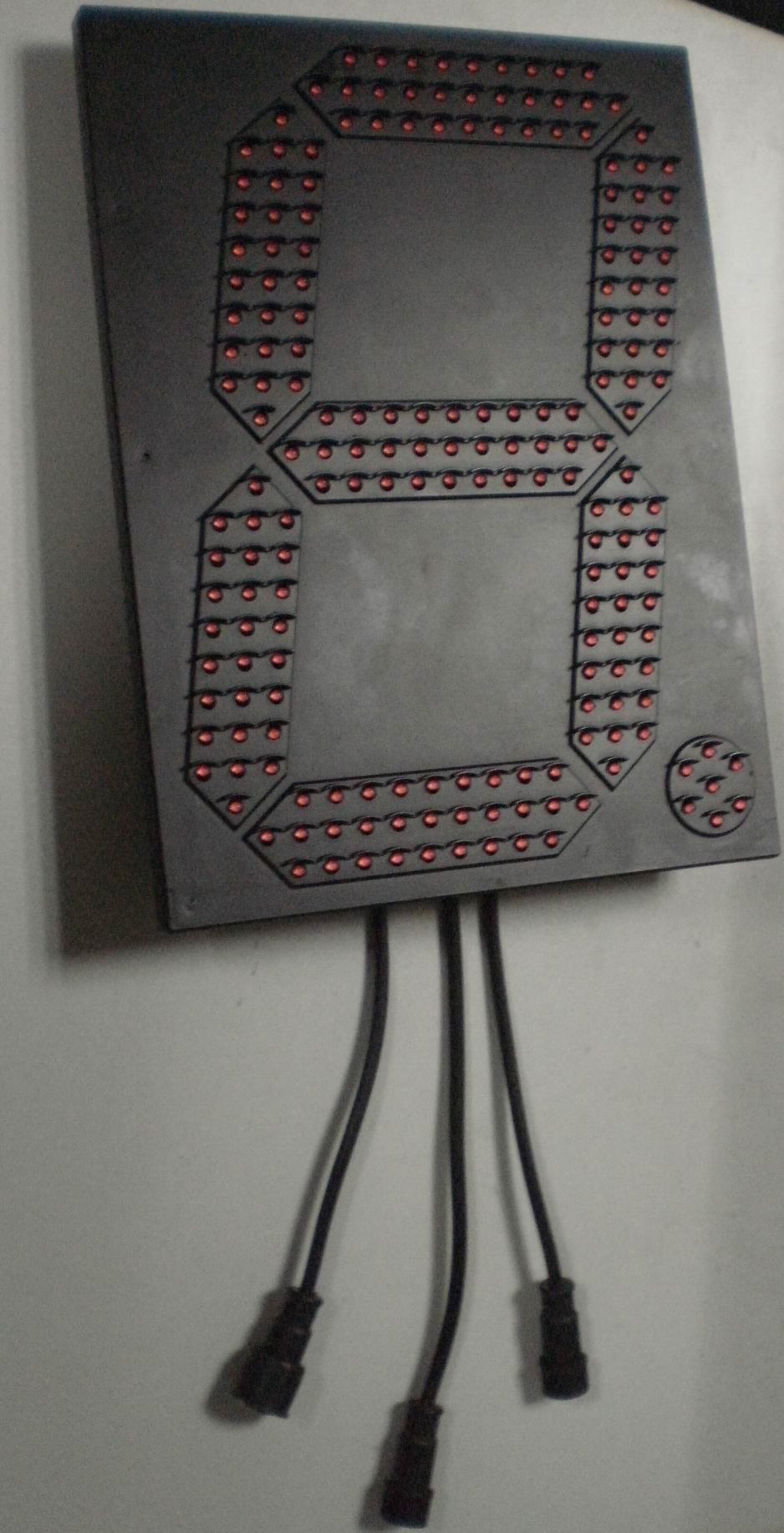

* This outdoor 12 inches digit module is specially developed by our factory, include front shroud and after body.
* Connecting wire is waterproof joint, waterproof level is IP 65.
* Customer can don't consider the waterproof problem when use this digit module, its very easy and convenient to install, widely used for oil station, time clock and temperature display, count board etc where need to display digits or numbers outdoor display boards.
* Our factory can supply specialized digit control system, materialize different functions and customized according to your requirements.Such as 4.8inch,12inch,20inch and so on.

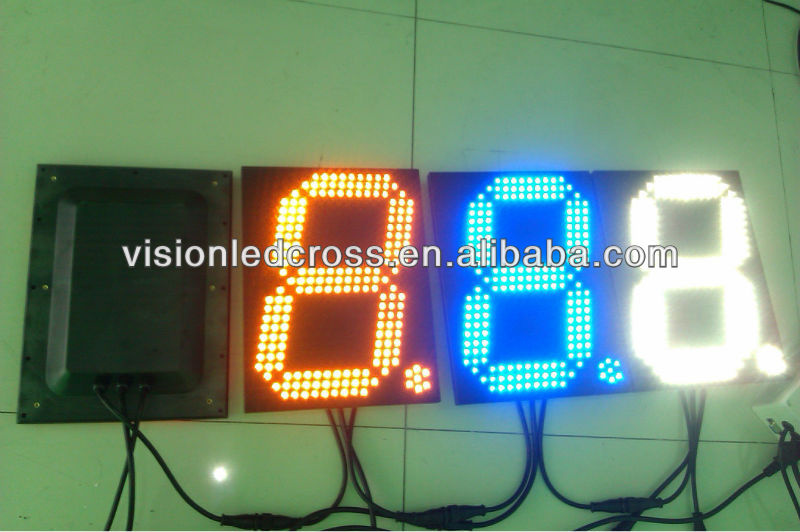

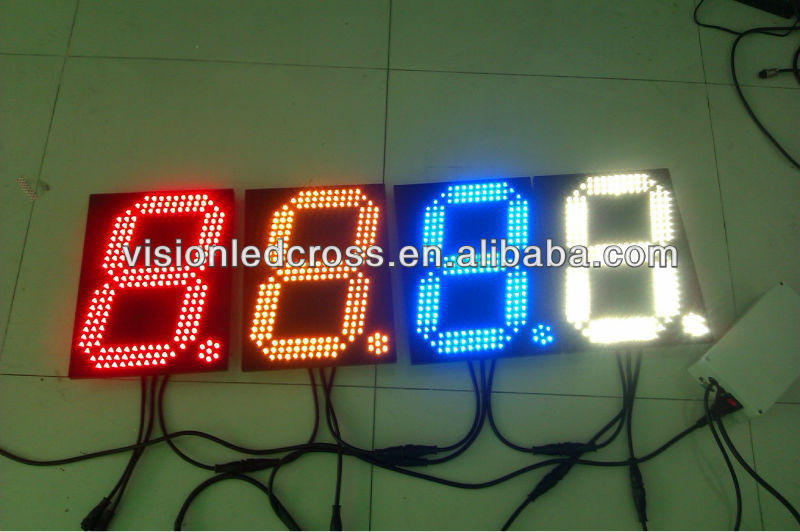

.Many colors are available ,such as red ,blue ,green ,yellow and so on.
| Prod Model: | 12inch |
|---|---|
| LED Lifespan: | 100,000 Hours |
| Waterproof Level: | IP65 |
| Control Mode: | Software Control or Remote Controller |
| Voltage: | DC 5V(220V (as Per Customersrequirement) |
| Display Sides: | Single or Double |
| Tube Chip Color: | Single Color |
| IP Rating: | IP65 |
| Certification: | CCC |
| Pixel Configuration: | 1r |
| Display Function: | Digit |
| Average Power Consumption: | 13W |
| Display Type: | Time, Date, Temperature |
