Home LED Light Products Hot Sell P3 SMD Indoor LED Large Screen Display

Hot Sell P3 SMD Indoor LED Large Screen Display

Hot Sell P3 SMD Indoor LED Large Screen Display
Price: US $ 1000-1500/Square Meter
Trade Terms: FOB,EXW
Min Order: 1/Square Meter
Pay Type: T/T,Western Union
     Hot Sales and High Resolution P3 LED Display Screen for Advertising

Specification



ModuleNO.ItemParameter
1Module ModelSH-P3(Indoor)
2Pixel pitch3mm
3Module dimension192mm*192mm
4Module resolution64*64dots
5LED constitutionSMD 3in1(2121)
6Pixel configuration1R1G1B

Cabinet1Dimension576mm*576mm*80mm
2Physical resolution192*192dots
3Module quantity9PCS
4Weight9kg/PCS
5MaterialDie-casting Aluminum
6Driving methodConstant current+1/16 scan
7Brightness≥1500nits
8Max power consumption1300W/SQM
9Average consumption700W/SQM
10Refresh frequency>1200HZ
11Gray level≥4096
12Input VoltageAC100-120V  AC200-240V
13Power supply5V/60A   2PCS
14Viewing angle120°
15Working environmentTemperature: -20°C~ 60°C
Humidity:10%~90%RH
16Control systemNova/Linsn Optional
17Input signalRJ45
18Display functionVideos
19CertificateCE Certification (SGS)

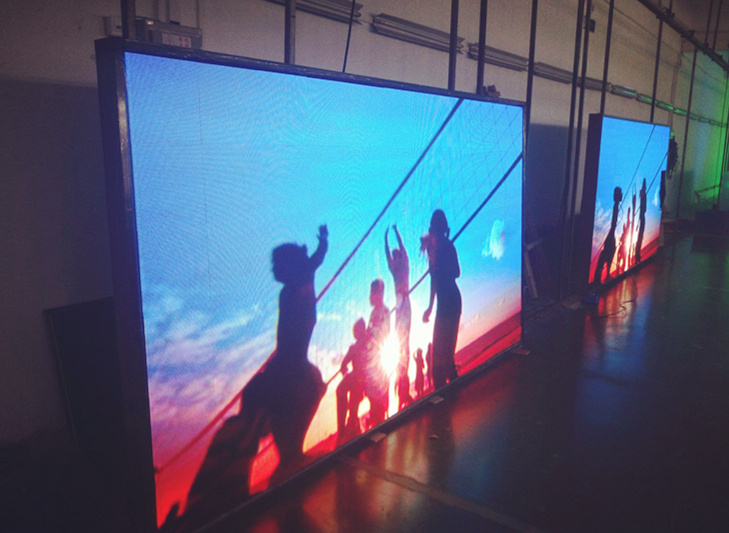

Product picture


Installation
Full Color P10 Outdoor LED Display /LED Sign with High Brightness
Functions

1.Cabinets are made of die-casting aluminium,can be spliced with no crack.
2.Tools isn't needed for installation.
3.The SMD three-in-one technology with high brightness makes the display have a ultra-wide view & vivid image when in use.
4. Work normally without air conditioning for low powe consumption.
5.Suitable for indoor  application,big square,shopping malls,railway stations,Airport,stage renting,etc.

Trade Terms

1. Package: Anti-shaking wooden cabinet, Carton package.
2. Shipping freight are quoted according to your requests.
3. Payment: T,T  / West Union.
4. Shipping port: Shenzhen, Mainland China.
5.Delivery time:3-15 working days.
6.Warranty time:2 years,lifelong maintaining.

Application


Prod Model: SH-P3
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brightness: >6000nit
Viewing Angle: 120°
Cabinet Dimension: 960X640×80mm
Cabinet Resolution: 120X80DOT
Cabinet Weight: 20kg
Cabinet Material: Die-Casting Aluminum
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Display Type: LED Video Display
Application: Advertising
Certification: FCC
Pixel Pitch: 8mm
Average Power Consumption: 500W / M²
Pixel Density: 15625 DOT / M²
Scanning Mode: 1/5 Scan
Established in 2003, Shenzhen VisionLED Optoelectronic Co., Ltd is a high-tech company specialized in researching, manufacturing, selling and serving LED display products. With advanced technology and high-quality service, our products are exported to Europe, USA, South Africa, Middle East, Southeast Asia and many other regions.

After the development for more than 10 years, the VisonLED witnesses great changes. We have established a good production-management system, cultivated a number of experienced engineers for the R & D personnel, configured modern producing equipments and standard factory.

The VisonLED is always in the forefront of innovation in LED industry. We have launched LED Pharmacy cross sign, LED Flexible Sign, LED Gas Price Sign, Outdoor LED Display and Indoor LED Display, etc...These products have passed the CE certification of SGS, RoHS&FCC certifications, so we are winning good reputation and customers all over the world.

At present, our products include Outdoor LED Display, Indoor LED Display, LED Flexible Sign, LED Pharmacy cross sign, LED Gas Price Sign and other series, can meet customers' different needs at the same time. What's more, we have an excellent sales and service team who devote themselves to providing satisfactory purchasing solutions and after-sale service in time.

In the future, VisionLED will stick to the principle of "Super quality, satisfactory service", pursuit innovation in technology all the way, invent new products with more scientific and technological content, strive to provide consumers more considerate service. We are convinced that with joint efforts, VisionLED will witness a brighter tomorrow.
