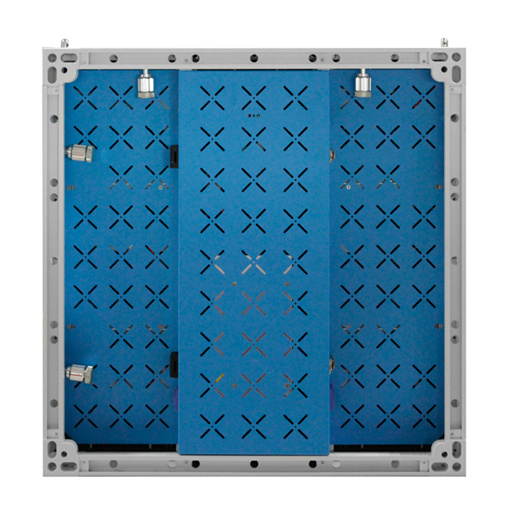

Fix installation LED Display cabinet
LED Display Feature Super-slim and high transparency design, aluminum alloy cabinet, made the screen extremely light and also a good-looking; Perfect distribution of light, allows you always get the best vision in spite of the viewing angle changing;
Special mask design, provide better protection for the LED lamp and better shading for the lights; Internally installed power supplier; High ingress protection as IP65, apply for outdoor using and have longer life span;
Good looking cabinet, quick for installation, and also easy to transport
LED Display specification | Specification | value | Specification | value |
Pixel pitch |
7.62mm |
Transparency |
20/100 |
Cabinet resolution |
96*64 pixels |
Refresh rate |
≥1000Hz |
Pixel configuration |
1R1G1B 3-in-1 SMD3528 |
Frame rate |
≥60Hz |
Density |
17222dots/SQM |
Input voltage |
AC110V 220V 50-60Hz |
Module size |
244mm×122mm |
Max power consumption |
600W/m 2 |
Cabinet size |
732mm× 488mm×120mm |
Average power consumption |
300W/m 2 |
Cabinet material |
iron |
working temperature |
-20C- +50C |
Cabinet weight |
25Kg |
Storage temperature |
-35C- +85C |
Brightness |
≥1500cd/SQM |
Humidity |
10%-90%RH |
Viewing angle(V/H) |
120°/120° |
Life span |
≥100,000 hours |
Viewing distance |
≥6m |
IP(front/back) |
IP21/IP43 |
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
