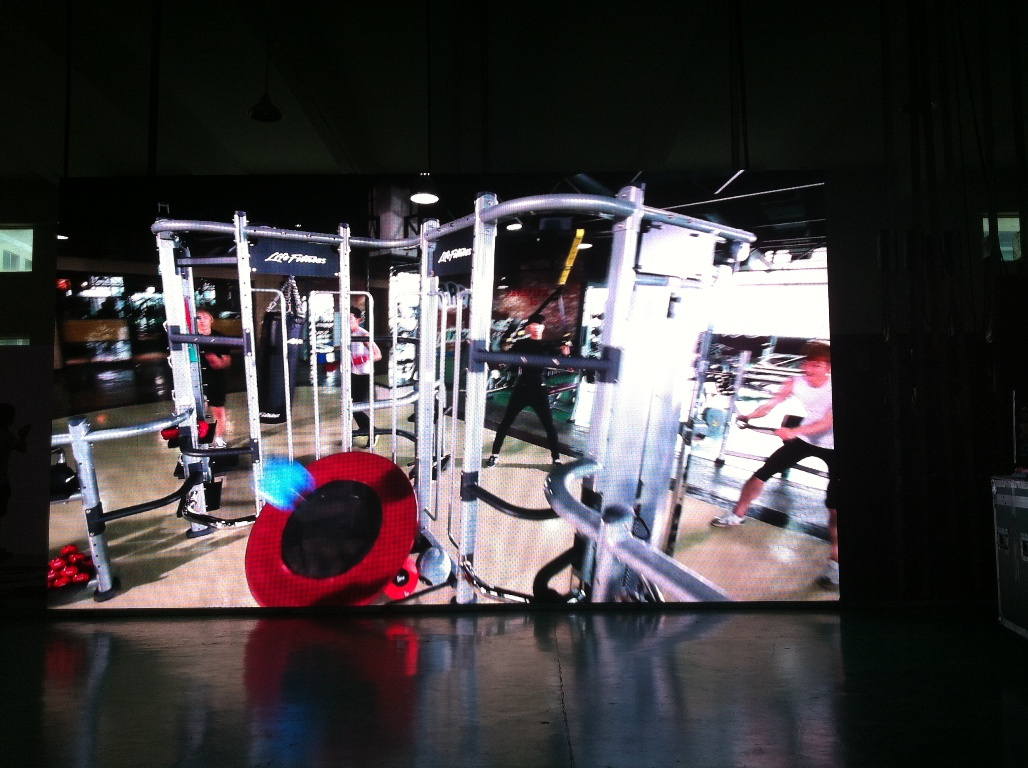

Outdoor fix installation LED Display
| Item | Outdoor DIP LED display |
| Pixel Pitch(mm) | 10mm | 12mm | 16mm | 20mm |
| Pixel density(/m2) | 10000 | 6944 | 3906 | 2500 |
| LED Type | DIP346 |
| Viewing angle: | H:120°,V:60° |
| Brightness(nits) | ≥6500 | ≥5000 | ≥7000 | ≥5500 |
| Drive Method | 1/4 | Static |
| Color Depth(nits) | 16384 |
| Refresh Rate(Hz) | 2200 | 2800 |
| Module Size(mm) | 160×160x28.5 | 192×192x28.5 | 256×256x28.5 | 320×320x28.5 |
| Cabinet Size(mm) | 960×960x178.5 | 1024×1024x178.5 | 1280×960x178.5 |
| Cabinet Material | Steel |
| Cabinet weight(kg) | 50 | 55 | 68 |
| Voltage | 110/220V |
| Average.power(W / m2) | 250 | 170 | 250 | 220 |
| Max.power(W / m2) | 750 | 500 | 750 | 650 |
| IP Grade | IP65/IP54 |
| Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH |
| Storage temperature/humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH |
| Lifetime(h) | ≥50000 |
| Compliant Standard | CCC,CE,Rosh |
Outdoor full color led display Feature :
1. Cabinet structure is with light weight and standardization: adopting high strength metal process, achieving high precision, light weight and other outstanding features;
2 .Energy Saving≥50%, Environment Protection
3 RGB deep grey scale processing, rich color and HD image effect.
4 Strong cabinet with reinforcing rib, tensile and quakeproof, with dissipation holes, lifespan more than 10 years.
5 Precision, Fast& flexible installation type, can be used in any installation conditions. 6 High intensity& anti-aging material, protection level as high as IP65, can resist any
bad environment.
7 Support dot by dot correction, to make sure the consistency of color and brightness
for one screen.
8 High quality material, mature craftsmanship, large-scale manufacture and reliable
quality.
9 Professional navigation connector, keep the safety of whole screen.
10 Complete series products, customized for your different need
.
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
