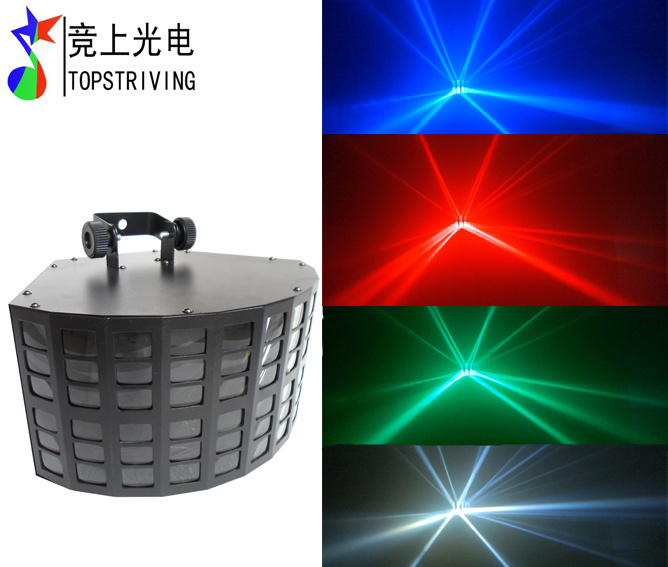

Night Club Lights with 60 Lens Fresnel Lighting led stage light
Model#:
DERBY II
A: Technical Parameters
Input Voltage: AC90-240V AC 50~60Hz
Protection Rating: IP44
Operating Temperature: 0° C~40° C
Power Consumption: 60W MAX
Light source: 2*three in one high RGB 9W MCD LEDs+2* high MCD white 3W LEDs, total 24W
4-digital LED display
Electronic Dimming: 0-100%
Low heat, Long Life LEDs (100, 000 hrs. )
B. Control model:
DMX512 mode: 8 channels
DMX512 conction: Linkable via 3-pin XLR cable
IEC out/in on rear to daisy chain power
Operational modes: DMX 512 protocol, Sound Active, Auto, master/slave
C. Feature:
1) full Master/Slave operation in any operational mode,
2) color strobe effect and long life operation
3)multi-colored, bright four color beams shooting from 60 lens covering a large area
4) producing various colors red, green, blue, white, purple, cyan, yellow
5) smooth step motor for superior beam movement
6)Color strobe effect from slow to fast
channel |
value |
function |
1 |
0-190
191-255 |
Motor running
Motor running directions adjustment
Motor running |
2 |
1-255 |
Red from small to big brightness ( dimming ) |
3 |
1-255 |
green from small to big brightness ( dimming ) |
4 |
1-255 |
blue from small to big brightness ( dimming ) |
5 |
1-255 |
White from small to big brightness ( dimming ) |
6 |
1-255 |
Master dimmer from small to full brightness |
7 |
0-36
37-73
74-110
111-147
148-184
185-255 |
Increasing brightness, then decreasing brightness, color following one by one
CH1/2/3/4/5/6/working
Four colors increasing brightness, then decreasing brightness
Four colors changing
Mixed colors increasing brightness, then decreasing brightness
Mixed color changing
Strobe from slow to fast, then from fast to slow when at CH 2/3/4/5/6 working |
8 |
0-244
255 |
Running speed adjustements
Speed from slow to fast when ch 7 at 37-184, the speed adjustment words
Sound active |
