The advantage of LED light:
1. Green products, no harm to human beings.
2. No heavy metal material (such as mercury, cadmium), friendly to the environment.
3. Good heat output, 90% high efficiency.
4. High luminous efficiency, 30, 000 hours long lifespan.
5. Solid light source. Easy for transportation.
6. Low voltage and constant current operation, safe for installation and operation, No strobe and glare light, reduce visual tiredness.
Feature

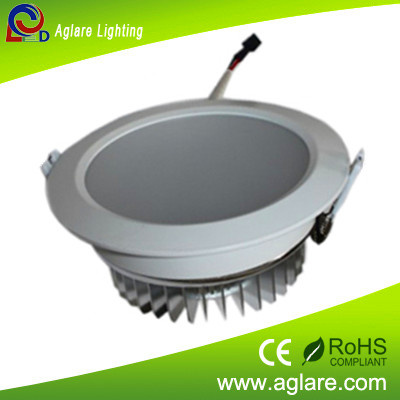

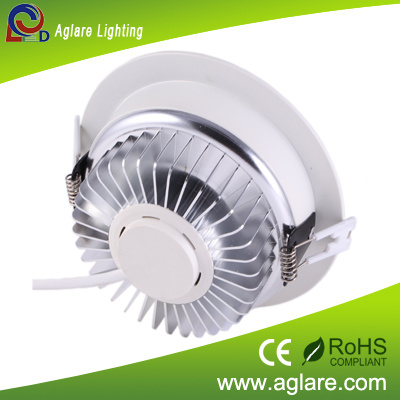

YJ-DLC116-PW9X1
1, Output power: 9W
2, LED type: High power 1W
3, LED quantity: 9 PCS
4, Luminous intensity: 540.21LM
5, Beam angle: 120°
6, Maximum size 116*61MM
7, Net weight: 270g
8, Housing material: Aluminum alloy+PMMA
9, Lifespan: >30000H
Installation Notes:
1. Cut off the power supply before installation.
2. Take related electric shock protection during installation.
3. Installation should be made under above mentioned right guidance.
4. Avoid child touch.
5. Contact supplier timely if you installed products under right guidance, but lamp can't be lit up nor has stroboscopic phenomenon.
After-sales Service
All products are guaranteed to use in one year. Under the right and normal using condition, quality warranty is based on correct conservation, assemblage, and maintenance. As incorrect usage, and disobeying product operation, it's not guaranteed. To the problem within promised time, "Aglare" will solve it by repair, substitute accessories or replacement for your option. Upon exceeding the promised time, there will be material and maintenance fees to be paid by customers
Type |
input voltage |
PF |
Output wattage |
Output Luminous Flux |
beam angle
|
product size
(MM) |
Recommended opening size (MM) |
Net weight (including driver) |
YJ-DLC99-PW3X1 |
AC90-260V |
0.7 |
3W |
174.38LM |
120° |
99*57 |
79 |
182g |
YJ-DLC108-PW7X1 |
AC90-260V |
0.9 |
7W |
420.04LM |
120° |
108*60 |
97 |
240g |
YJ-DLC116-PW9X1 |
AC90-260V |
0.9 |
9W |
540.21LM |
120° |
116*61 |
101 |
270g |
YJ-DLC139-PW12X1 |
AC90-260V |
0.9 |
12W |
720.19LM |
120° |
139*63 |
120 |
397g |
Aglare Lighting Co., Ltd established in 2001 and started to produce our own products in the end of 2004, covering an area of 5000 square meters, which contains LED Components producing department and LED Lighting producing department.We're an enterprise of researching and developing, making and marketing all in one.There are two type products, one is LED component, mainly are DIP LED, SMD LED, Multi-chip LED.The other is LED lighting,
Mainly are LED strip, LED tube light, LED module, LED floodlight, LED down light, LED ceiling light, amusement LED lamps and LED holiday lights etc.Especially for jewelry counter LED strip.We've developed 6 different colors to meet the market requirement, which can be used in different jewelry counters and widely applied in the domestic cities.It greatly increases the sales of Jewelry Company, For this reason, we gain extensive praise.
All of our products have obtained EU's CE, RoHS and EN60852 certificates, at the meanwhile, our factory have passed the factory audit of TUV.Aglare Lighting Co., Ltd strict control materials, specially the main parts of LED lighting which are LED and LED driver, those are produced by our own, so that to increase the stability in quality and advantage in price.About the product innovation, there are 7 utility model patents, 5 appearance patents and 3 logo patents of our products."Innovation is root and quality is life "Therefore our company always keep the basic rule, that is the best quality and relative lower price.Meanwhile, we can design and manufacture according to the customer's demands, meet the various requirements of customers.We are willing to form to alliance with vast customers to win-win situation.
