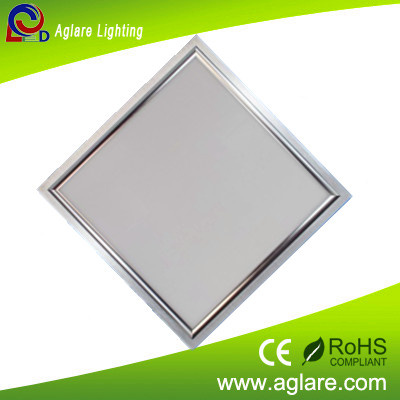

AC90-260V 32W aluminum ultrathin square led panel light
Features:
ø LED type: SMD3014
ø Beam angle: 120degree
ø Housing material: Aluminum profiles
ø Maximum size: 600*600*17mm
ø Net weight: 2898.4g
ø Emitting colors: Warm white, pure white, cool white, red, green, blue and yellow
ø Defending Electricity Leakage. Easy to install and maintenance free.
ø Green product, compliant with ROHS and CE.
ø . Suitable for family, hotel, restaurant, hall, pub, casino, show business, lighting, marketplace, meeting room and exhibition
Application Case:
Package Dimensions (mm):
After-sales service
All products are guaranteed to use in one year. Under the right and normal using condition, quality warranty is based on correct conservation, assemblage, and maintenance. As incorrect usage, and disobeying product operation, it's not guaranteed. To the problem within promised time, "Aglare" will solve it by repair, substitute accessories or replacement for your option. Upon exceeding the promised time, there will be material and maintenance fees to be paid by customer.
|
Part Number |
Emitting Color |
Input Voltage
AC90-260V |
Wattage |
Waterproof Degree |
LED Quantity |
Luminous Intensity(Lm) |
Net Weight
(g) |
|
MIN |
MAX |
|
YJ-PH600X600-3014R300 |
Red |
32W |
/ |
300pcs |
1613 |
1622 |
2898.4 |
|
YJ-PH600X600-3014G300 |
Green |
32W |
/ |
300pcs |
3336 |
3354 |
2898.4 |
|
YJ-PH600X600-3014B300 |
Blue |
32W |
/ |
300pcs |
2058 |
2069 |
2898.4 |
|
YJ-PH600X600-3014Y300 |
Yellow |
32W |
/ |
300pcs |
1613 |
1622 |
2898.4 |
|
YJ-PH600X600-3014W300 |
Pure White |
32W |
/ |
300pcs |
2780 |
2795 |
2898.4 |
|
YJ-PH600X600-3014WW300 |
Warm White |
32W |
/ |
300pcs |
2558 |
2572 |
2898.4 |
