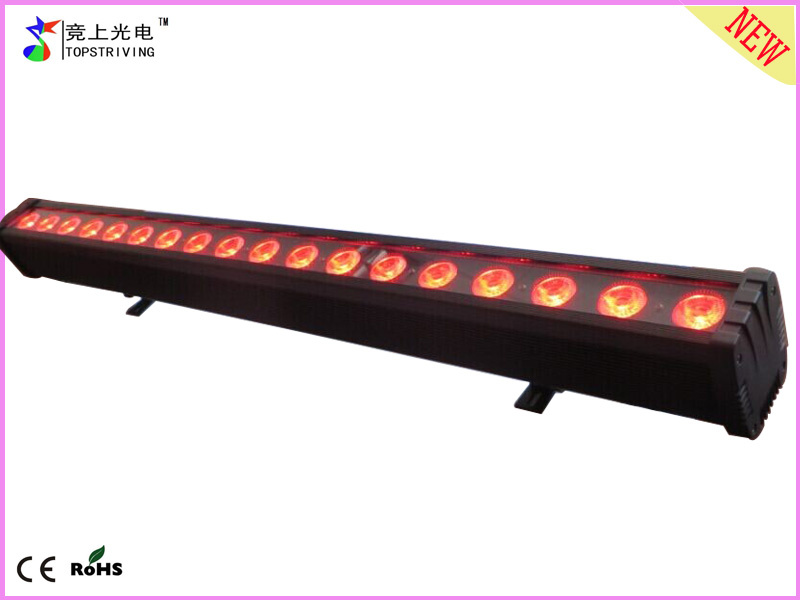

New IP65 RGBWAU LED Wall Washer Light
Augeas BAR RGBWAU is one of the classical LED fixtures designed and created by ourselves, really ideal for outdoor shows, architectural scenic illuminations, theme park/scenic spots evening illuminating, color washing for villas, etc.
New and Hot! ! !
Three models available. The difference is the LEDs.
AUGEAS BAR RGBWAU 18
AUGEAS BAR RGBWAU 12
AUGEAS BAR RGBWAU 6
Advantages:
*Extruded aluminium housing looking comely, streamline forming, achieving excellent ventilations
*Uniquely designed structure for good water proof IP 65 without screws using and none of silicone glues as traditionally
*die cast aluminium end housing: Professional and real waterproof
*air lock valves equipped for air in and out of the housing for fixture long life using
*stainless steel connectors for power/signal cables
*new PWM dimming electronical theory applied for reasonable fresh rates and real flicker free
*controlling each color separately in every LED: 6 colors at DMX 512 protocol or auto
*driving IC and capacitors from USA and European unions equipped for steady constant current outputs instead of quantities of cables
*intelligent temperature self controlling: Self adjusting temperature to protect at the time of max. Temperature happening
Specification:
AC 100-240V 50/60Hz
Power consumption: 230W
Equipped with 18 PCS high MCD 6 in 1 RGBWAU 12W LEDs, 50, 000 hours
Beam angle: 15° /25° /30°
0-100 linear dimming, separate strobe
DMX 512 protocol, master/slave, auto with 17 preset shows running speed adjustable
6/8/11/108 DMX channel modes
Running temperature self controlling
Displaying normally or reversely
Displaying off 5 seconds automatically after finishing sets of the fixture
Extruded and die cast aluminium
IP 65 water proof
Environmental temperature: -20º C to 40º C
Hanging brackets included: Floor stand
Net weight: 9.70Kgs
Dimensions: 1175*100*150mm(L*W*D)
DMX FUNCTIONS
We believe that the quality is the soul of an enterprise.
Any questions, we will reply you in time.
Looking forward to your trial order!
If you want to know it at once.
6-CHANNEL MODE |
Channel 1 |
red from darkness to full brightness |
Channel 2 |
green from darkness to full brightness |
Channel 3 |
blue from darkness to full brightness |
Channel 4 |
white from darkness to full brightness |
Channel 5 |
amber from darkness to full brightness |
Channel 6 |
UV from darkness to full brightness |
8-CHANNEL MODE |
Channel 1 |
red from darkness to full brightness |
Channel 2 |
green from darkness to full brightness |
Channel 3 |
blue from darkness to full brightness |
Channel 4 |
white from darkness to full brightness |
Channel 5 |
amber from darkness to full brightness |
Channel 6 |
UV from darkness to full brightness |
Channel 7 |
master dimmer from darkness to full brightness |
Channel 8 |
strobe from slow to fast |
0-2 |
not occupied |
3-122 |
pulse strobe from slow to fast |
123-182 |
random strobe I |
183-255 |
random strobe I I |
11-CHANNEL MODE |
Channel 1 |
red from darkness to full brightness |
Channel 2 |
green from darkness to full brightness |
Channel 3 |
blue from darkness to full brightness |
Channel 4 |
white from darkness to full brightness |
Channel 5 |
amber from darkness to full brightness |
Channel 6 |
UV from darkness to full brightness |
Channel 7 |
master dimmer from darkness to full brightness |
Channel 8 |
strobe from slow to fast |
0-2 |
not occupied |
3-122 |
pulse strobe from slow to fast |
123-182 |
random strobe I |
183-255 |
random strobe I I |
Channel 9 |
color macros |
0-2 |
not occupied |
3-41 |
red+green I |
42-83 |
red+green 2 |
84-125 |
blue+green 1 |
126-167 |
blue+green 2 |
168-209 |
red+blue 1 |
210-251 |
red+green+blue |
252-255 |
red+green+blue+white+amber+UV |
Channel 10 |
color changing from slow to fast |
0-2 |
not occupied |
3-255 color changing from slow to fast |
|
Channel 11 |
color fades |
0-2 |
not occupied |
3-255 color fades from slow to fast |
|
108-CHANNEL MODE |
Channel 1 |
red from darkness to full brightness |
Channel 2 |
green from darkness to full brightness |
Channel 3 |
blue from darkness to full brightness |
Channel 4 |
white from darkness to full brightness |
Channel 5 |
amber from darkness to full brightness |
Channel 6 |
UV from darkness to full brightness |
Channel 7 |
red 2 from darkness to full brightness |
Channel 8 |
green 2 from darkness to full brightness |
Channel 9 |
blue 2 from darkness to full brightness |
Channel 10 |
white 2 from darkness to full brightness |
Channel 11 |
amber 2 from darkness to full brightness |
Channel 12 |
UV 2 from darkness to full brightness |
*** |
|
Channel 103 |
red 18 from darkness to full brightness |
Channel 104 |
green 18 from darkness to full brightness |
Channel 105 |
blue 18 from darkness to full brightness |
Channel 106 |
white 18 from darkness to full brightness |
Channel 107 |
amber 18 from darkness to full brightness |
Channel 108 |
UV 18 from darkness to full brightness |
