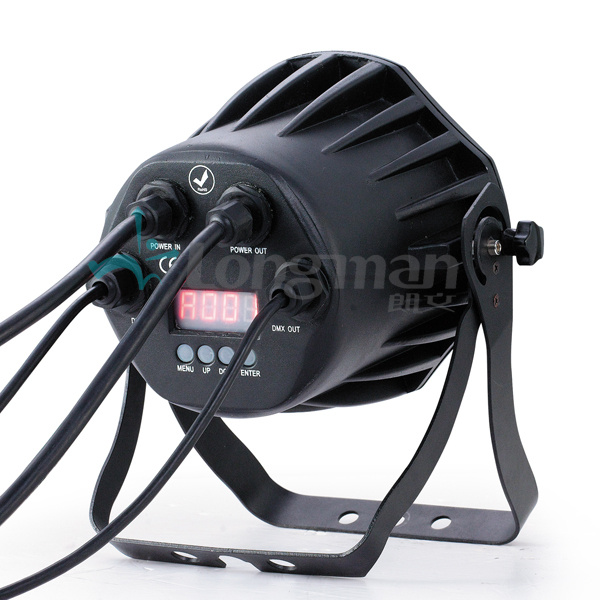

New design multi-color 30w firewave led outdoor landscape lights
Features:
1)Firewave effect, projecting direction use, fiewave run up high, speed adjustable, could connect and overlap.
2)Lumiled LED, variable combinations and Lumens Output, Low comsume, stable performance, long longevity.
3)Red, Amber 1 and Amber 2 Mixing use makes real fire effect showing all kinds of nature fire.
4)DMX512 signal control, 4 buttons address setting with LED screen.
5)Display could aotu turn off after no operation, show DMX signal situation make tesing easier.
6)Dim 4 Square law dimming for 0-100%, video flicker free, with strobe/gradual change/color change inbuilt programs;
7)NTC temperature control system inside, MCU reduce the power output when LED working temperature is too high, 15000 Hours Longevity.
Specification:
1)Voltage input: DC12V, Eqqwuiped with Exterior IP66 SMPS.
2)Rated Power: 30W(27W@25º C Peak ouput)
3)Luminaire Efficiency: >0.8, Light Efficacy >41lm/W.
4)LED Lumens: Lumiled LED 620mA, White and Blue combination 1320lm 12Lux@10Meters, Red and Amber combination 830lm.
5)LED Wavelength: Red=625nm, A1=590nm, A2=600nm, Ttpical Chromaticity CIE1931 (0.5297, 0.4170) Could Customized White/Blue and other.
6)Field Angle(10%): Standard 80 ° , when connect light beam with no related dark hole caculate as 60°
7)Control signal: Meet E1.11 - 2004 USITT DMX512-A, 32 bit, PWM>400Hz, Video flcker free.
8)Dimming Curve: Dim 4 square law dimming, smooth in low DMX Value dimming, not Jumping, no vision shock
9)Control mode: DMX1990/DMX512A/stand alone/master and slave, effect speed and brightness adjustable.
10)Chanel option: 8CH, Dimmer, Color1, 2, 3, Clockwise and convert, Speed, Shutter, dimming Curve, could choose 7CH.
11)Housing material: Die cast aluminum ADC12, standard Matte balck, barndoor and color filter available.
12)Safty: CClass III, 3C 2.5mm2 VDE cable, Flame Rating V-1, Protect Rated IP65.
13)Operate temperature: -20~+45º C, Lampbody peak temperature 60º C@25º CEviroment
14)Cerficated: Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750.
15)Insulated: Dielectric strength 1.5KV, Impedance strength > 2MΩ
16)Weight: 3.7KG, with double yokes 3mm thick supporting bracket.
17)Size: 226*201*245mm
FAQ:
1. Are you a factory or trading company?
Yes, We are a factory.
2. Where is your factory located? How can I visit there?
Our factory address is: A3, Yagang Industrial Zone, Yagang Road, Baiyun District, Guangzhou, China, about 10 minutes away from Bai yun Airport by metro, then we will go to pick you up from metro station, only 25minutes.
All our clients, no matter where you are from, all are most welcome to visit us!
3. Which products we have?
We produce different kinds of LED Light.
Our product:
A. LED Moving Spot and Wash Light;
B. Studio Light;
C. Indoor Parcan Light;
D. Professional Wash Light;
E. Audience and DJ Light;
F. Outdoor Parcan Light;
G. Outdoor Washer Light;
H. Black Light;
J. Control System;
K. Dramatic architectural and landscape lighting.
4. How to get the latest price?
If you want the latest price, Please Email or call us with the items names or NO. What are you interested in,
Together with your details(name, details address, telephone, etc), we will send to you as soon as possible.
5. Does the products have any certificate?
Yes, our products have CE, ROHS, UL, CCC and SGS certificate.
6. What's the Payment method?
All methods can be discussed.
7. How to Place an order?
Please kindly send us you order by email, we will confirm the PI with you. We wish to know the below: Delivery
Information, company name, address details, phone/fax number, destination, transportation way; Product
Information: Item number, size, quantity, logo, etc.
If you have specific parameters and requirements for our landscape light, customization is available.
|
Specifications |
|
|
Voltage input: |
AC90-240V 47-63HZ,PF>0.9 |
|
Rated Power: |
24V,SMPS longevity 15000 Hours |
|
Luminaire Efficiency: |
>0.8,Light Efficacy>31Lm/W |
|
LED Lumens: |
9 pcs Lumiled Red and Amber LED,620mA,total 780Lumens output,16Lux@10Meters |
|
LED Wavelength: |
Red=625nm,A1=590nm,A2=600nm,Ttpical Chromaticity CIE 1931(0.5291,0.4170) Could Customized White Color |
|
Field Angle(10 ): |
Standard 45,when connect light beam with no related dark hole caculate as 40 |
|
Control Signal: |
DMX512,32 bit, PWM>400HZ,Video flcker free. |
|
Dimming Curve: |
Dim 4 square law dimming,smooth in low DMX Value dimming,not jumping,no vision shoce |
|
Control Mode: |
DMX1990/DMX512A/stand alone/master and slave,effect speed and brightness adjustable |
|
Channel Option: |
7CH,Dimmer,R,A1,A2,Shutter,Speed,and dimming Curve,could choose 6CH |
|
Housing material: |
Die cast aluminum ADC12,standard Matte balck,customized glossy White painting,barndoor available |
