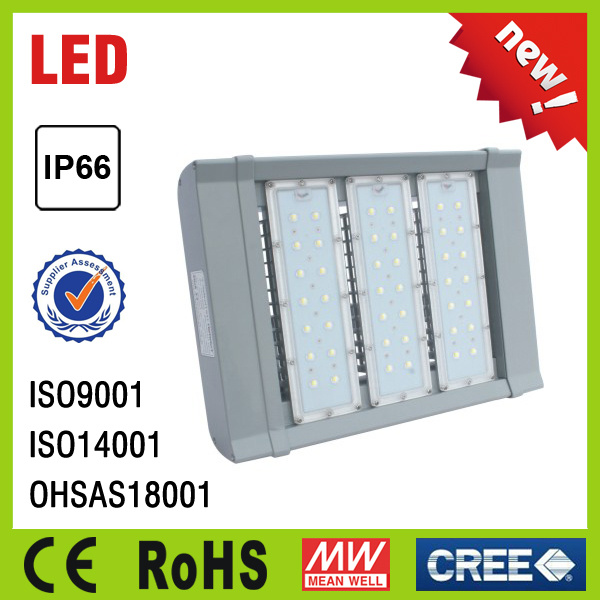

New design IP66 CE approved aluminum outdoor led street light
Application
It is an idea lighting solution for the factory, station, tunnel, control room, transformer room etc.
Characteristics
1.Out of consideration of the difficulty of road lighting replacement, the company developed a unique cooling system modules, an effective solution to the problem of LED light failure caused due to high temperature to ensure high efficiency light source with 100,000 hours of life.
2.The even light distribution can avoid the shadow area between the two streetlights. It is glare free. And has a pure white light. 3.It adopts American CREE LED as light source, can save 60% or more on energy than the metal halide lamp.
4.Equipped world top ranking brand, Taiwan Meanwell electrical appliance with power factor 0.98, make the lamp's performance more stable and efficient.
5.Specially designed light lid, easy maintenance
6.The shell adopts high-tech surface spraying technology, abrasion resistance and resistance to corrosion, waterproof, dustproof, applicable to all kinds of environments
7.Mounting: bracket
Main specification
Input Voltage | 90-305VAC |
Frequency | 50Hz / 60Hz |
Ingress Protection | IP66 |
Anti Corrosion Grade | WF2 |
Insulation Grade | I |
Leading-in cable diameter | Φ6mm -Φ8mm |
Ordering reference
Ordering Reference | Light Source | Rated wattage (W) | Light output (lm) | Dimension (mm) | Net Weight (Kg) | Average Service Life (h) |
ZY8102F-L60 | LED | 60 | 8194 | 322(L)×363×150 | 5.2 | 10,000 |
ZY8102F-L80 | LED | 80 | 9737 | 322(L)×363×150 | 5.2 | 10,000 |
ZY8102F-L100 | LED | 100 | 10785 | 322(L)×363×150 | 5.2 | 10,000 |
ZY8102F-L120 | LED | 120 | 14605 | 417(L)×363×150 | 6.2 | 10,000 |
ZY8102F-L150 | LED | 150 | 16178 | 417(L)×363×150 | 6.2 | 10,000 |
ZY8102F-L180 | LED | 180 | 20193 | 512(L)×363×150 | 7.2 | 10,000 |
ZY8102F-L200 | LED | 200 | 21571 | 512(L)×363×150 | 7.2 | 10,000 |
ZY8102F-L300 | LED | 300 | 32356 | 702(L)×363×150 | 9.2 | 10,000 |
ZY8102F-L400 | LED | 400 | 43142 | 892(L)×363×150 | 11.2 | 10,000 |
