Led light manufacturers and factory

Home LED Light Products 3 Years Warranty Industral High Bay LED Light

3 Years Warranty Industral High Bay LED Light

3 Years Warranty Industral High Bay LED Light
Price: US $ 400-500/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: T/T

3 Years Warranty   Industral high bay LED light

Product Description
IP Code: IP66
Ambient temp.: -40°C to +50°C

Applications
 The product is suitable for use in power station, petrochemical industry,metallurgy and other indoor and outdoor places.
Product Description

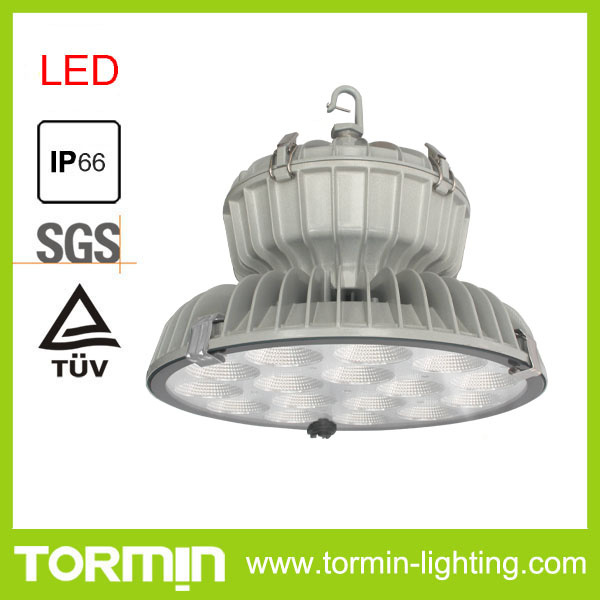

  ZY8501 LED industrail light, IP66 high bay lamp, 60-120w LED high bay light
Especially designed for high bay, tall roof, It efficiently utilize the light to 95%.Glare free, have a good performance of illuminance uniformity.
Floodlight or spotlight is both available according to mounting height. (8-15meters: floodlight,>15meters: spotlight)
It adopts American CREE LED as light source, can save 60% or more on energy than the metal halide lamp
The light source is separated from the electrical appliance. This split style with the high efficiency radiator have solved the heating-up problem so that ensure the 100,000 hours LED lifespan.
Equipped with world top ranking brand, Taiwan Meanwell electrical appliance with power factor 0.98, make the lamp's performance more stable and efficient.
The locking device on the bracket will keep the lamp from shift or trembling during harsh vibration.
 The shell adopts high-tech surface spraying technology, abrasion resistance and corruption,waterproof,  dustproof, suitable to be used in all kinds of environments
 Quick opening lid, easy to maintain.

Main specification


Input Voltage

90-305VAC / 127-431VDC

Output Voltage

54VDC

Frequency

50Hz / 60Hz

Ingress Protection

IP66

Anti Corrosion Grade

WF2

Insulation Grade

I

Space Height Ratio

1.8(Spotlight), 3(Floodlight)

Thread

G3/4''

Leading-in cable diameter

Φ8mm -Φ14mm

Dimension

Φ380x268.5mm

Net Weight

7.5Kg




Spare parts option

No.

Specification

Quantity

Note

1

Chain

1



2

Hook G3/4"

1

Standard

3

Sucker G3/4"

1



4

Steel pipe G3/4"

1

Length according to application


Our Services
reply you within 24h
professional sales and customer-servicedept.both work for you,high efficiency of communication
report order status every day
reliable after-sale service
OEM available
 Dialux Solution,telling you which iem,which power,how many pcs,which beam angle suitable
dialux to check suitable item;
recommend to customer;
project done

Prod Model: ZY8501
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage: AC90-305V
Output Voltage: DC27-54V
Working Temperature: -40 - +50
Color Temperature: Pure White
Lamp Body Material: Aluminum Alloy
IP Rating: IP66
Certification: RoHS
Zhejiang Tormin Electrical Co., Ltd. is a high-tech civilian enterprise that specializes in r & d, manufacture and sales of industrial illumination lamps. Its products are widely used in the fields of electric power, coal mine, petrol, chemical, metallurgy, railway, large airport, fire-fighting, military, flood prevention, rescue work and disaster relief.

In light of the world wide advocating of low carbon economy, zhejiang tormin electrical Co., Ltd. Will carry on the mission of low-carbon illumination, energy conservation & emission reduction, and strive to create a first class brand for industrial lighting in China with the operation guidelines of energy conservation, environmental protection, pragmaticness and innovation. We are always committed to the r & d of a new generation of low energy consumption illumination products and the supply of green products for customers. In an era of low carbon illumination, the company deems the energy-favored illumination as a major project, makes use of the latest technology through independent r & d and technical exchanges and cooperations with counterparts from both at home and abroad, and develops a series of high efficiency products with the combination of efficient illumination sources and electric appliances, whose energy saving effects have reached the internationally advanced level, thus making due contributions for the energy conservation and emission reduction.

The company boasts powerful r & d and manufacturing capabilities, being one of the largest industrial illumination r & d and production bases in China. It is awarded as the technology-oriented small and medium-sized enterprise in zhejiang province, patent demonstration enterprise in wenzhou city, and key patent protection enterprise, etc. At the same time, tongming has obtained the certification of ISO9001: 2008 international quality management system, the national coal mine safety, the state luminaire quality supervision and inspection center, the state fire-fighting equipments quality supervision and inspection center, CE&RoHS, ATEX, IECex and other authorities.

The company enjoys very rich experiences in the planning and implementation of energy conservation projects in various plants, and has developed a number of energy-friendly illumination solutions geared to various industries in China. It provides a whole set of technical services for enterprises in the areas of electric power, metallurgy, petrochemical and coal mine, from the support of energy conservation plans, product selection, project installation, to after-sales services.

With the determination of contributing to the nation and shaping a centennial brand, and upholding the tenet of win-win among customers, employees and the company, zhejiang tongming electric appliance Co., Ltd is endeavoring to create an excellent platform for more and more elites who are to join tongming, and commonly establish a first class illumination enterprise.
