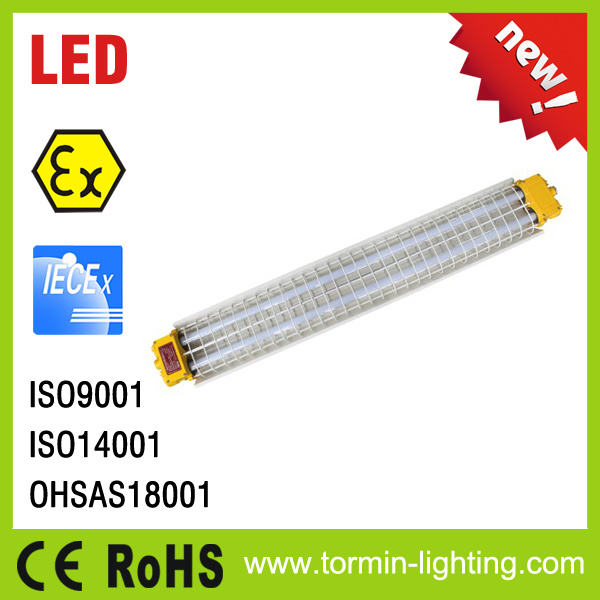

New design energy saving explosion-proof led gas station light
Application
1.This kind of explosion proof light can be widely used in petroleum, chemical, terminals, ports, aerospace,aviation, military, processing and other places.
2.Harsh environment, moist area.
3.Gas explosive environment : Group IIA, IIB, IIC
4.Zone 1, Zone2; Zone 21, Zone 22
5.Temperature class: T1 to T6
Characteristics
1.ceiling, pole, wall mounting type.
2.Equipped with world brand light source, electrical appliance.
3.Products using flameproof increased safety structure, easy to install with separate wiring chamber, meet the latest requirements of explosion proof lighting, safe and reliable operation in explosive hazardous areas.
4.Light housing made of aluminum alloy, high strength, stainless steel exposed fasteners not color, not rust, can prevent rain.
Technical Specification
Model number |
BC5401-L2x20 |
BC5401-Y2x28 |
Input voltage (V) |
AC 90~240V |
AC 220~240V AC 110V |
Rated voltage (V) |
AC110V AC115V AC120V AC127V
AC220V AC230V AC240V |
Input frequency (Hz) |
50/60 |
50/60 |
Rated power (W) |
2x20 |
2x28 |
Light source |
LED |
T5 fluorescent lamp |
Luminaire effect (lm/W) |
>90 |
>70 |
Color temperature (K) |
5300~6000 |
4000 |
Color rendering index (Ra) |
>70 |
>70 |
Service life (h) |
>50000 |
>20000 |
Ex code |
II2GD Ex de IIC T6 Gb Ex tb IIIC T80 Db |
Anti corrosion grade |
WF2 |
WF2 |
Protect grade |
IP66 |
IP66 |
Factor |
>0.95 |
>0.95 |
Total harmonic current |
<15% |
<15% |
Housing highest surface tempera ture (ºC ) |
<80 |
<80 |
Weight (kg) |
12 |
12 |
Mounting angle |
360° |
360° |
