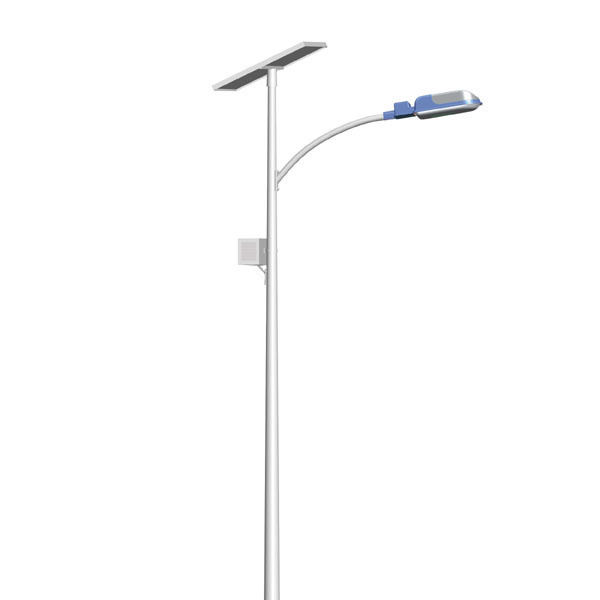

New Design 9m 50W LED Solar Street Light
Product Details
1. Solar Panel: High efficiency mono or poly crystalline silicon.
2. Light source: High bright LED, white, lifespan more than 50000hours.
3. Solar controller: Intelligent microcomputer controller for solar lighting, 10A 12V/24V auto, time control & light control, with over-charging and discharging protections etc.
4. Storage battery: Gelled valve-regulated sealed battery or lead-acid battery, maintenance free and deep cycle.
5. Light pole: Normal 5-10 meters, made of quality steel, plastic coated after hot dipped galvanizing, rust proof. Wind resistance ≥ 120KM/H
6. Ambient Temperature: -30 C----+60 C
7. Lighting time: According to client's request, usually 8 /10/12 hours per night, 3-4 / 5-6 rainy or cloudy days.
8. System voltage: Advisable DC24V for LED above 40W
Product Parameter
| LED Lamp | 50W high power LED, white, 4200LM with cast aluminum lamp housing. |
| Solar Panel | High efficiency crystalline silicon 2*75Wp |
| Solar Controller | 12V/24V 10A, with over-charging, discharging, reverse-connection protections. |
| Battery | 24V/80AH gelled valve-regulated sealed battery, deep cycle. |
| Battery Box | Steel box, galvanized corrosion proof treatment, used for placing of battery and controller; |
| Light pole | 9 meters, quality steel, HDG & plastic coated, wind resistance ≥150KM/H |
| Accessories | Arm, solar panel brackets, screws, cable and battery box etc. |
Note:1. Above configuration is designed on averaged insolation 5.5 kWh/m2/day
2. Lighting time: 12 hours per night, 3-4 overcast days
Advantages
A. Highway
B. City main road
C. School campus road
D. Sidewalk
E. Pathway
F. Farm & ranches lighting
G. Villa lighting
H. Landscape lighting - park, square etc.
The below points of solar street light are required for design and quotation:
1. Where is the final installation place (Country & City name)? Or tell us the latitude and longitude of lighting place.
The solar radiation will be checked according to the installation place to ensure the lighting time,
And save the cost at the same time
2. Lighting time per night & backup rainy or cloudy days?
The lighting time usually is 8 hours, 10 hours or 12hours, or choose half power design according to actual conditions.
Besides, how many backup days under rainy or cloudy weather will be required too.
3. Light pole height, and pole style?
Please choose your favorite pole style in our solar street lights, and tell us the pole height you need.
Solar street lights usually adopt light poles from 5M-10M.
4. The power of light source?
The light sources for solar street lights are usually 18W~120W LED.
If you want to know more information, please contact us, we will reply you in the earliest time!
Hwawin Solar Technology Co., Ltd. is the key member of Hwawin Group, dedicated to the R&D, manufacture and international trade of solar modules, solar street lights, solar garden lights and other solar products since 2002. At present, we have our own plants in Zhangjiagang and Yangzhou City.
Our best competitive products:
Solar Street Lights with 5M-12M street light pole and 15W-100W super bright LED street lamps; Solar Garden Lights with 2.5M-4M light pole and 5W-15W solar garden lamps; Polycrystalline and monocrystalline solar panel 10-300Wp; 10W-120W LED Lamp, Solar Battery Buried Box,
MPPT Solar Charge Controllers, PMW Intelligent Solar Controllers with LED Drivers; Solar Road Studs, Solar Brick Lights.
